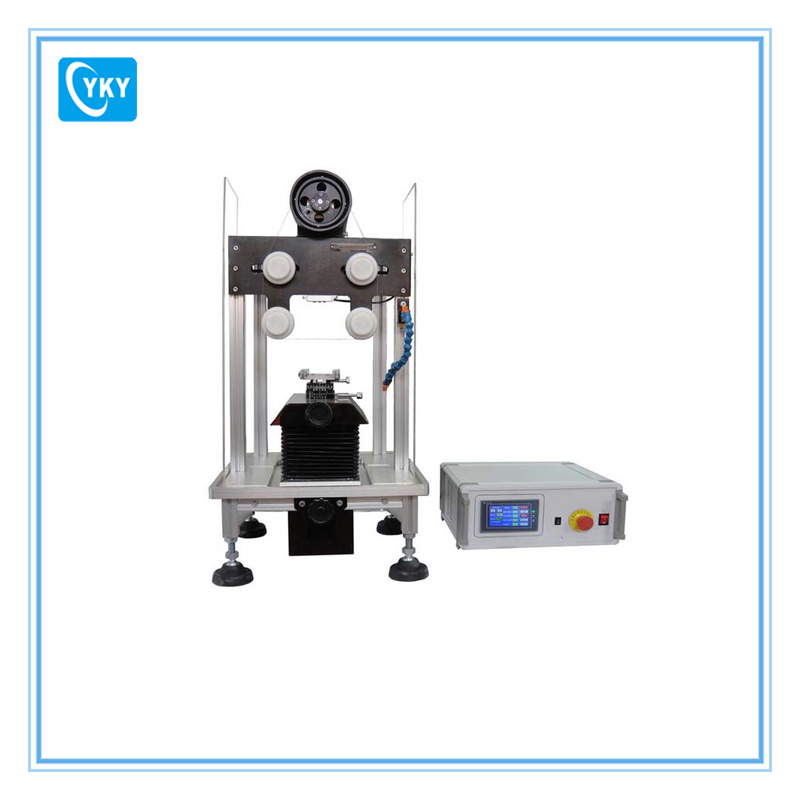

High Precision Diamond Wire Saw with Swing Rotary Sample Fixture and Microscope Monitor

High Precision Diamond Wire Saw with Swing Rotary Sample Fixture and Microscope Monitor
Price: US $ 17000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: CY-STX-202P
Air Compressor: Dia.0.5mm
Digital Pressure Regulator: 0-130psi
Feed Speed:  0.01 mm/Min
Spooler Spin Speed: 1-260 Rpm
Positional Accuracy: +/- 0.01 mm
Cutting Depth: 0.1 - 50mm
Warranty: One Year
Certificate: Ce/TUV

Product Description

Precision Diamond Wire Saw With Swing Rotary Sample Fixture and Microscope Monitor - STX-202P
Introduction of high precision diamond wire saw

STX-202P is a CE certified, small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm
thick. It is designed to provide low stress cut for various materials such as the fragile crystals and TEM or IC samples.
- Through-Microscope viewing enables accurate positioning for initializing the first cut
- Swing / Rotary Sample Fixture promotes higher efficiency and better cut surface quality
- Pneumatic wire tension control system with digital pressure regulator help maintain a stable wire tension during the cut while provides better adaptability to wires as thin as 0.12mm
- Ultra-thin sectioning up to 0.06 mm for some strong materials

 Technical parameters of high precision diamond wire saw


Power Wire Saw Control: Universal 110V or 240VAC  50/60Hz, 200W max.
Structure

Premium Add-ons (Through-Microscope viewing, Swing/Rotary Fixture, Pneumatic Wire tension control) for precise, efficient and high quality cut
Heavy-duty aluminum alloy structure with compact size
single wire swing cutting with adjustable wire length from 5-15mm (broken wire still can be used)
Transparent plastic plates are included to prevent Coolant splashing

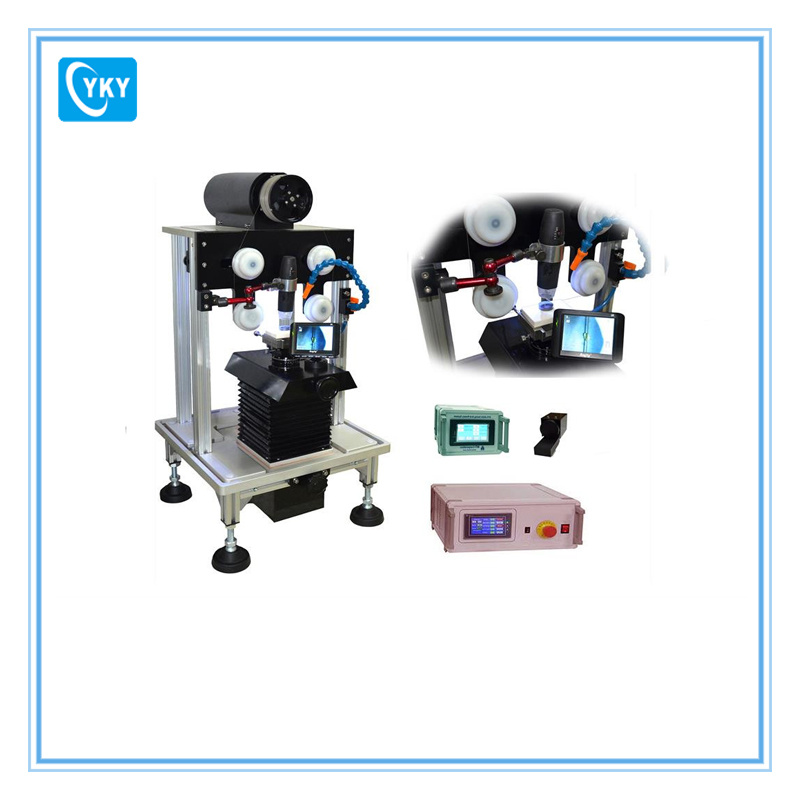

Through-Microscope Viewing                Through-Microscope viewing allows you pick up small details on the sample which is essentially invisible to the eye. Thus, accurate positioning for the cuts is supported.
Li-ion battery powered microscope and wireless monitor provides upto 5 hours continues operation.
5 meters max. remote monitor.
Magnification 10x - 200x
Swing / Rotary Sample FixtureSuch fixture has an independent controller for its parameter settings such as swing frequency/ angle (±23°, upto 20 swings/min), rotating speed (30rpm max.) Cycles. Higher cutting surface quality can be expected by swinging or rotating the specimen throughout the cutting process.
110~240VAC to 24VDC power adapter is include
Pneumatic tension systemThe wire saw features a pneumatic tension system for optimizing the cutting performance and wire adaptability. With such system, the wire saw can handle different cutting wires from 0.12mm - 0.5mm dia. An  href="http://www.mtixtl.com/6.3gal.1HPUltraQuietandOil-FreeSteelTankAirCompressor-EQ-ACPHD-3.aspx" air compressor is required.
Digital Pressure regulator 0~130PSI (+/-3% full span accuracy)
Motor Driven Stage   Z axis: 50mm,  automatically controlled by digital panel
Y axis: 50mm,  automatically controlled by digital panel
Two dimension sample stage built in  360° degree horizontal rotating and +/-10° tilting
Cutting parametersFeed Speed: 0.01 mm/min to 40 mm/min adjustable
Back Speed: 1  mm/min to 100 mm/min adjustable
Spooler spin speed: 1-260 RPM adjustable
Cutting depth: 0.1 - 50mm
Positional accuracy: +/- 0.01 mm

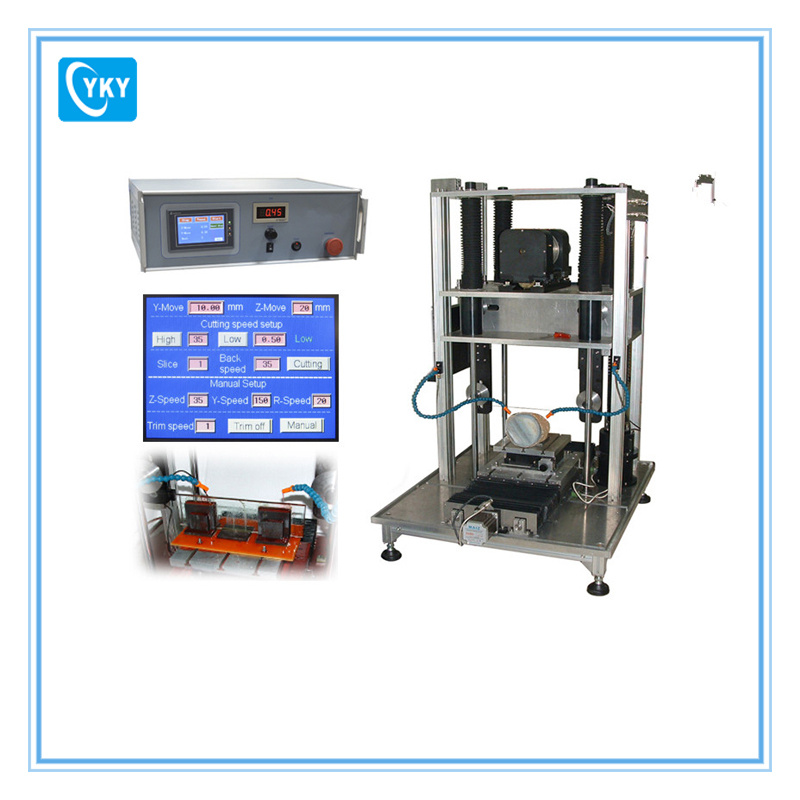

Controller & Touch ScreenColor touch screen controller will set up wire travel speed, cutting speed along Z axis and cutting width along Y axis
Lubricant Refill Cup

Features an oil refill cup behind the spooler motor, please apply 10-15 drops Anti-Wear Oil before first-time use.
Wire spooler motor, 3 Amps, Torque=1.8Nm

Diamond wire
≤ 15 meters used for each installation
One spool of 0.30mm Dia x 20 meter length Diamond Wire is included for immediate use
A Diamond Blade Dressing Stone is included for keeping the wire sharp.
Wire tension systemSteel spring wire tension system with break wire alarm

Water Pump
One water pump is included for cooling diamond wire during cutting. (the pump voltage is the same as the saw voltage)
You must use anti-corrosive oil or radiator water as coolant
Warning:  must clean the machine after each cutting, especially using tap water as the coolant to prevent rust.
Product dimensions

Saw: 414mm(L) × 500mm(W) × 750mm(H)
Controller: 340mm(L) x 290mm(W) x 170mm(H)
Crate dimensions27"(L) x 23"W) x 40" (H)
Shipping Weight188 lbs with 48x40x44"
WarrantyOne year limited with lifetime support, not including cutting wire

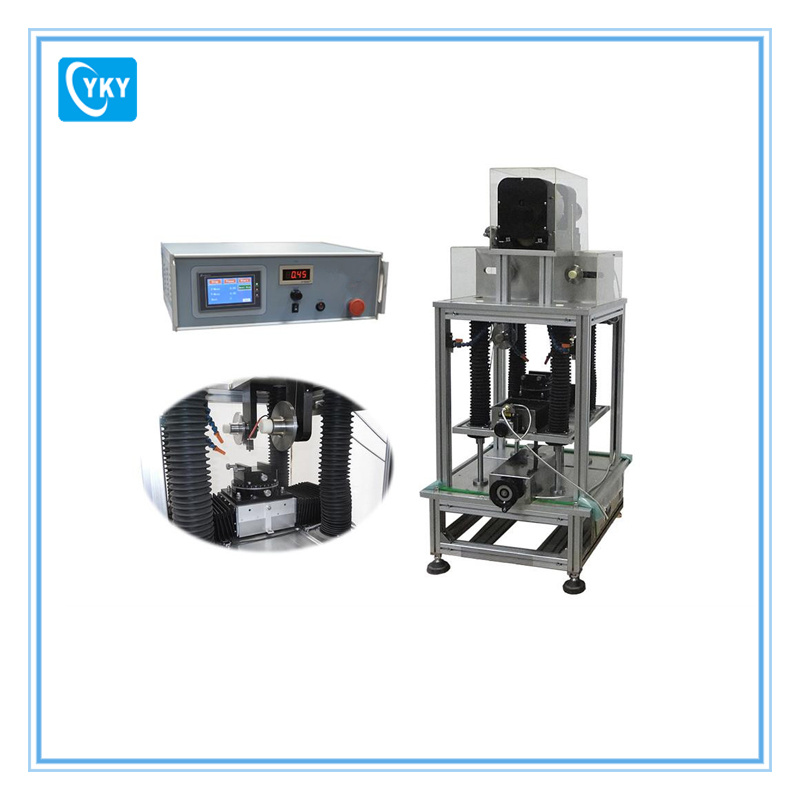

More photos of high precision diamond wire saw
