| Prod Model: |
230/750 CA/W33 |
| Bearing Item: |
230/750 Caw33 |
| OEM: |
Available |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Double |
| Outer Dimension: |
Extra Large (',440mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
| Separated: |
Unseparated |

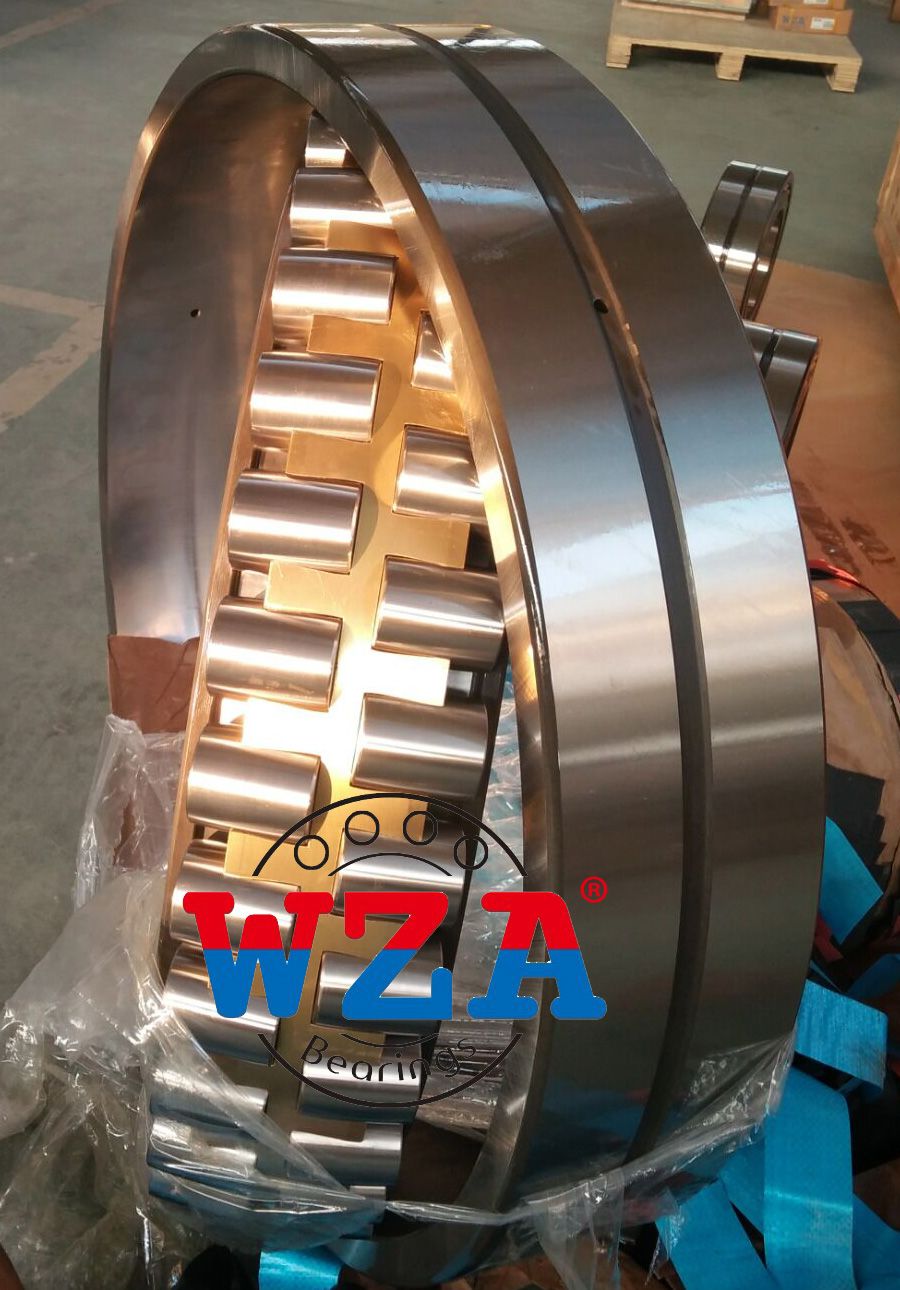

Product Description
high quality spherical roller bearing1. Kinds :bore is the taper K ; and vice versa; tank in the out ring W33
2. Dimensions rage: inter diameter 90mm~~outer diameter 920mm
3. Basic types: 21000; 22000; 23000; 24000; and so on.
4. Cage: brass cage or steel cage
5. Application: wheel, large size agriculture machinery, main shaft of machine tool, deceleration device of railway gear box, roll machine and so on
Spherical Roller Bearing CC series
Spherical Roller Bearing CA series
Spherical Roller Bearing MB series
Spherical Roller Bearing E series
inventory of SPHERICAL ROLLER BEARINGS - 23000 SERIES| Bearing No. | Dimensions(mm) | Load ratings(KN) | Limiting speeds(r/min) | Mounting dimensions(mm) | Mass(Kg) |
| d | D | B | Cr | Cor | Grease | Oil | da(min) | Da(max) | ra(max) | ≈ |
| 23022 | 110 | 170 | 45 | 278 | 461 | 1600 | 1900 | 120 | 160 | 2 | 3.92 |
| 23024 | 120 | 180 | 46 | 304 | 510 | 1200 | 1600 | 130 | 170 | 2 | 4.2 |
| 23026 | 130 | 200 | 52 | 383 | 644 | 1100 | 1600 | 140 | 190 | 2 | 6.3 |
| 23028 | 140 | 210 | 53 | 414 | 719 | 1000 | 1300 | 150 | 200 | 2 | 6.8 |
| 23030 | 150 | 225 | 56 | 451 | 790 | 1000 | 1400 | 162 | 213 | 2.1 | 8.2 |
| 23032 | 160 | 240 | 60 | 515 | 900 | 850 | 1200 | 172 | 228 | 2.1 | 9.85 |
| 23034 | 170 | 260 | 67 | 626 | 1112 | 800 | 1000 | 182 | 248 | 2.1 | 12.5 |
| 23036 | 180 | 280 | 74 | 730 | 1290 | 800 | 1000 | 192 | 268 | 2.1 | 17.2 |
| 23038 | 190 | 290 | 75 | 767 | 1390 | 700 | 950 | 202 | 278 | 2.1 | 19.8 |
| 23040 | 200 | 310 | 82 | 890 | 1650 | 650 | 850 | 212 | 298 | 2.1 | 23.65 |
| 23044 | 220 | 340 | 90 | 1090 | 2040 | 600 | 750 | 234 | 326 | 2.5 | 28.8 |
| 23048 | 240 | 360 | 92 | 1160 | 2220 | 530 | 700 | 254 | 346 | 2.5 | 36.2 |
| 23052 | 260 | 400 | 104 | 1460 | 2850 | 500 | 630 | 278 | 382 | 3 | 514.5 |
high quality spherical roller bearing producing process
Our agent team
Packaging & Shipping
1). for small ones: Anti-rust oil+ plastic bag+ paper box +carton box +wooden pallet
2). For big ones: Anti-rust oil+ waterproof belt+ professional belt +wooden box + pallet
Why choice WZA
1: in the same price , our quality is higher , in the same quality , our price is lower
2: high precision , long life
3: our brand is WZA , we also can OEM
4:best service ,many stocks
WQK spherical roller bearing adopt BAINITE QUENCHING, so they can be used up to an operating temperature of 200 ° C. However, if the self-aligning roller bearings are provided with a polyamide cage, the temperature limit of the cage (max. 120 ° C permanent temperature) should be taken into account. The standard versions of WQK spherical roller bearings are supplied with brass cage type MB, CA, and steel cage type CC AND E. Mainly is CC AND MB cage which have large stock.
Main items:
22205MBW33/C3 -22256MBW33/C3,
22306MBW33/C3-22368 MBW33/C3,
23130MBW33/C3-23180MBW33/C3,
21310MBW33/C3-21340MBW33/C3,
24020MBW33/C3-24080MBW33/C3.
24120MBW33/C3-24180MBW33/C3.
23218MBW33/C3-23280MBW33/C3.
ID size: 30mm-650mm, OD size: 50mm-860mm
WQK spherical roller bearings are widely used for Mining, Steel, oil, cement, construction, papermaking, rolling mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery. WQK also supply OEM service, and design products according to your drawings or samples as well.
With registered capital of RMB10 million, our factory covers an area 10, 200 square meters and 205 staffs which include 35 technicians. WQK use advanced Germany technology and design do BEST spherical roller bearing. WQK currently has advanced equipment, a reliable quality controlling system and a highly spiritual management team, thereby providing a further guarantee of product and service quality. Insisting on the spirit of "Quality First, Honesty First", we sincerely welcome customers from both at home and abroad to cooperate with us for mutual benefits.
