| Prod Model: |
29330 E |
| OEM: |
Available |
| Bearing Item: |
29330 E |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Large (',200-430mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
| Separated: |
Unseparated |
Product Description

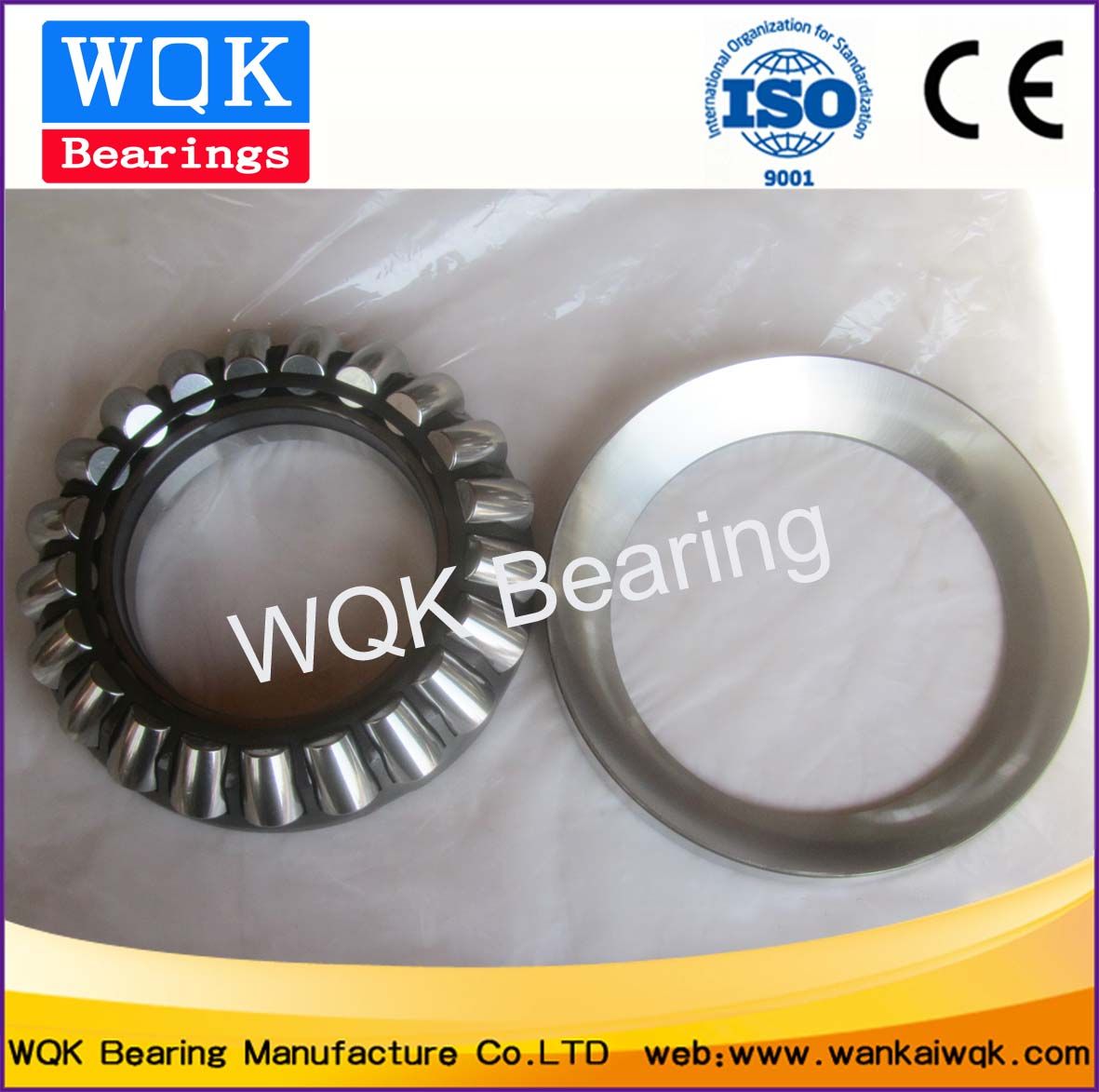

high quality Thrust Spherical Roller Bearing
1.BAINITE QUENCHING
2.ISO9001:2008
3.Material :GCr15/GCr15SiMn / G20Gr2Ni4A
4.Hardness :HRC60-HRC64
5.Closures :Unsealed/Sealed
6.Grade : P6 P5
7.Clearance :C0, C3, C4
8.Lubrication :Oil or grease
9.Structure :Spherical Roller Bearing MB, CA, CC, and E series
10.Features: These bearings are featured by the extremely big axial load carrying capacity and meanwhile they can also carry certain radial load
11.Packing :
For small ones: Anti-rust oil+ plastic bag+ paper box+ wooden box
For big ones: Anti-rust oil+ waterproof belt+ professional belt +wooden box
12.Application :Steel industry, oil industry, cement industry, mining & construction, paper making machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery
THRUST SPHERICAL ROLLER BEARINGS - 29000 SERIES
| New items | Old items | SKF | NACHI | Code(dxDxT) | Weight/kg |
| 29317 | 9039317 | 29317E | 29317E | 85x150x39 | 2.87 |
| 29318 | 9039318 | 29318E | 29318E | 90x155x39 | 4.2 |
| 29320 | 9039320 | 29320E | 29320E | 100x170x42 | 4.49 |
| 29322 | 9039322 | 29322E | 29322E | 110x190x48 | 6.94 |
| 29324 | 9039324 | 29324E | 29324E | 120x210x54 | 7.78 |
| 29326 | 9039326 | 29326E | 29326E | 130x225x58 | 8.17 |
| 29328 | 9039328 | 29328E | 29328E | 140x240x60 | 11.2 |
| 29330 | 9039330 | 29330E | 29330E | 150x250x60 | 11.5 |
| 29332 | 9039332 | 29332E | 29332E | 160x270x67 | 15 |
| 29334 | 9039334 | 29334E | 29334E | 170x280x67 | 16.3 |
| 29336 | 9039336 | 29336E | 29336E | 180x300x73 | 19.9 |
| 29338 | 9039338 | 29338E | 29338E | 190x320x78 | 0 |
| 29340 | 9039340 | 29340E | 29340E | 200x340x85 | 34 |
| 29344 | 9039344 | 29344E | 29344E | 220x360x85 | 28.6 |
| 29348 | 9039348 | 29348E | 29348E | 240x380x85 | 35.4 |
| 29412 | 9039412 | 29412E | 29412E | 60x130x42 | 2.6 |
| 29413 | 9039413 | 29413E | 29413E | 65x140x45 | 3.33 |
| 29414 | 9039414 | 29414E | 29414E | 70x150x48 | 3.87 |
| 29415 | 9039415 | 29415E | 29415E | 75x160x51 | 4.27 |
| 29416 | 9039416 | 29416E | 29416E | 80x170x54 | 5.98 |
| 29417 | 9039417 | 29417E | 29417E | 85x180x58 | 6.76 |
| 29418 | 9039418 | 29418E | 29418E | 90x190x60 | 7.8 |
| 29420 | 9039420 | 29420E | 29420E | 100x210x67 | 11.32 |
| 29422 | 9039422 | 29422E | 29422E | 110x230x73 | 18.1 |
| 29424 | 9039424 | 29424E | 29424E | 120x250x78 | 19.5 |
| 29426 | 9039426 | 29426E | 29426E | 130x270x85 | 28.3 |
| 29428 | 9039428 | 29428E | 29428E | 140x280x85 | 24.6 |
| 29430 | 9039430 | 29430E | 29430E | 150x300x90 | 28.9 |
| 29432 | 9039432 | 29432E | 29432E | 160x320x95 | 32.8 |
| 29434 | 9039434 | 29434E | 29434E | 170x340x103 | 40.7 |
WQK spherical roller bearing adopt BAINITE QUENCHING, so they can be used up to an operating temperature of 200 ° C. However, if the self-aligning roller bearings are provided with a polyamide cage, the temperature limit of the cage (max. 120 ° C permanent temperature) should be taken into account. The standard versions of WQK spherical roller bearings are supplied with brass cage type MB, CA, and steel cage type CC AND E. Mainly is CC AND MB cage which have large stock.
Main items:
22205MBW33/C3 -22256MBW33/C3,
22306MBW33/C3-22368 MBW33/C3,
23130MBW33/C3-23180MBW33/C3,
21310MBW33/C3-21340MBW33/C3,
24020MBW33/C3-24080MBW33/C3.
24120MBW33/C3-24180MBW33/C3.
23218MBW33/C3-23280MBW33/C3.
ID size: 30mm-650mm, OD size: 50mm-860mm
WQK spherical roller bearings are widely used for Mining, Steel, oil, cement, construction, papermaking, rolling mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery. WQK also supply OEM service, and design products according to your drawings or samples as well.
With registered capital of RMB10 million, our factory covers an area 10, 200 square meters and 205 staffs which include 35 technicians. WQK use advanced Germany technology and design do BEST spherical roller bearing. WQK currently has advanced equipment, a reliable quality controlling system and a highly spiritual management team, thereby providing a further guarantee of product and service quality. Insisting on the spirit of "Quality First, Honesty First", we sincerely welcome customers from both at home and abroad to cooperate with us for mutual benefits.
