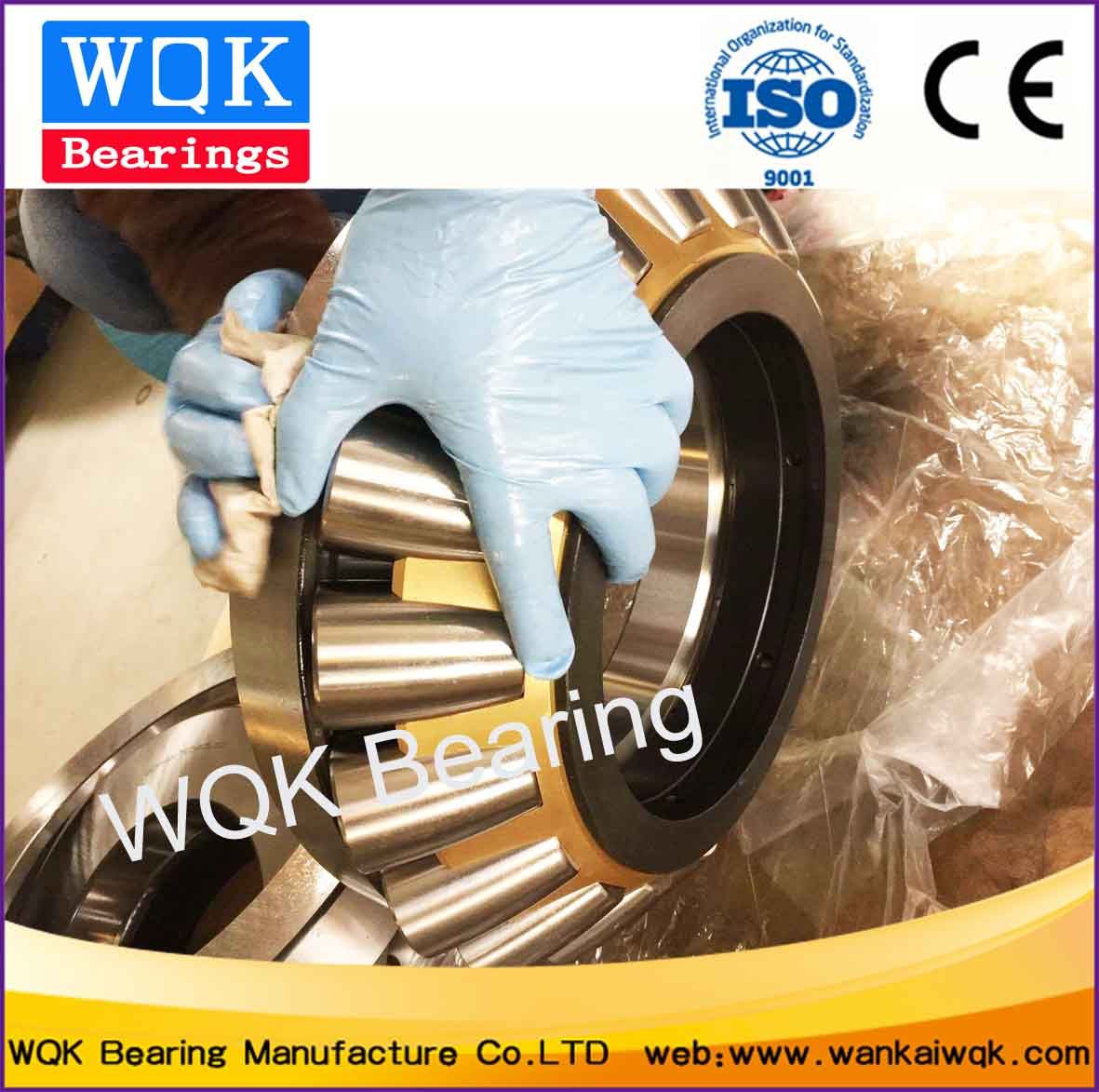

Thrust Spherical Roller Bearing for Mining Machinery

Name: Thrust Spherical Roller Bearing for Mining Machinery
Brand: tool-buy.com
SKU: 711612332
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	US $ 100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

WQK Bearing Manufacture Co., Ltd.

Showroom Product Company Profile

Prod Model:	29452 EM
OEM:	Available
Bearing Items:	29452 Em
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Large (',200-430mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

high quality Spherical Roller Bearing features

1.BAINITE QUENCHING

2.ISO9001:2008

3.Material :GCr15/GCr15SiMn / G20Gr2Ni4A

4.Hardness :HRC60-HRC64

5.Closures :Unsealed/Sealed

6.Grade : P6 P5

7.Clearance :C0, C3, C4

8.Lubrication :Oil or grease

9.Structure :Spherical Roller Bearing MB, CA, CC, and E series

10.Features: These bearings are featured by the extremely big axial load carrying capacity
and meanwhile they can also carry certain radial load

11.Application :Steel industry, oil industry, cement industry, mining & construction, paper making machinery,
rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery

Thrust Spherical Roller Bearing stocks items as below,

New items	Old items			Specifications(dxDxT)mm	Weight/kg
29317	9039317	29317E	29317E	85x150x39	2.87
29318	9039318	29318E	29318E	90x155x39	4.2
29320	9039320	29320E	29320E	100x170x42	4.49
29322	9039322	29322E	29322E	110x190x48	6.94
29324	9039324	29324E	29324E	120x210x54	7.78
29326	9039326	29326E	29326E	130x225x58	8.17
29328	9039328	29328E	29328E	140x240x60	11.2
29330	9039330	29330E	29330E	150x250x60	11.5
29332	9039332	29332E	29332E	160x270x67	15
29334	9039334	29334E	29334E	170x280x67	16.3
29336	9039336	29336E	29336E	180x300x73	19.9
29338	9039338	29338E	29338E	190x320x78	0
29340	9039340	29340E	29340E	200x340x85	34
29344	9039344	29344E	29344E	220x360x85	28.6
29348	9039348	29348E	29348E	240x380x85	35.4
29412	9039412	29412E	29412E	60x130x42	2.6
29413	9039413	29413E	29413E	65x140x45	3.33
29414	9039414	29414E	29414E	70x150x48	3.87
29415	9039415	29415E	29415E	75x160x51	4.27
29416	9039416	29416E	29416E	80x170x54	5.98
29417	9039417	29417E	29417E	85x180x58	6.76
29418	9039418	29418E	29418E	90x190x60	7.8
29420	9039420	29420E	29420E	100x210x67	11.32
29422	9039422	29422E	29422E	110x230x73	18.1
29424	9039424	29424E	29424E	120x250x78	19.5
29426	9039426	29426E	29426E	130x270x85	28.3
29428	9039428	29428E	29428E	140x280x85	24.6
29430	9039430	29430E	29430E	150x300x90	28.9
29432	9039432	29432E	29432E	160x320x95	32.8
29434	9039434	29434E	29434E	170x340x103	40.7

high quality spherical roller bearing producing process

Our agent team

Packaging & Shipping

1). for small ones: Anti-rust oil+ plastic bag+ paper box +carton box +wooden pallet
2). For big ones: Anti-rust oil+ waterproof belt+ professional belt +wooden box + pallet

Why choice WZA

1: in the same price , our quality is higher , in the same quality , our price is lower

2: high precision , long life

3: our brand is WZA , we also can OEM

4:best service ,many stocks

WQK spherical roller bearing adopt BAINITE QUENCHING, so they can be used up to an operating temperature of 200 ° C. However, if the self-aligning roller bearings are provided with a polyamide cage, the temperature limit of the cage (max. 120 ° C permanent temperature) should be taken into account. The standard versions of WQK spherical roller bearings are supplied with brass cage type MB, CA, and steel cage type CC AND E. Mainly is CC AND MB cage which have large stock.

Main items:

22205MBW33/C3 -22256MBW33/C3,

22306MBW33/C3-22368 MBW33/C3,

23130MBW33/C3-23180MBW33/C3,

21310MBW33/C3-21340MBW33/C3,

24020MBW33/C3-24080MBW33/C3.

24120MBW33/C3-24180MBW33/C3.

23218MBW33/C3-23280MBW33/C3.

ID size: 30mm-650mm, OD size: 50mm-860mm

WQK spherical roller bearings are widely used for Mining, Steel, oil, cement, construction, papermaking, rolling mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery. WQK also supply OEM service, and design products according to your drawings or samples as well.

With registered capital of RMB10 million, our factory covers an area 10, 200 square meters and 205 staffs which include 35 technicians. WQK use advanced Germany technology and design do BEST spherical roller bearing. WQK currently has advanced equipment, a reliable quality controlling system and a highly spiritual management team, thereby providing a further guarantee of product and service quality. Insisting on the spirit of "Quality First, Honesty First", we sincerely welcome customers from both at home and abroad to cooperate with us for mutual benefits.
