High Quality Spherical Roller Bearing Special for Industrial Machine

Name: High Quality Spherical Roller Bearing Special for Industrial Machine
Brand: tool-buy.com
SKU: 708097382
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

WQK Bearing Manufacture Co., Ltd.

Showroom Product Company Profile

Prod Model:	22336 MBC3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Available
Bearing Item:	22336 Mbc3
Rolling Body:	Roller Bearings
The Number Of Rows:	Double
Outer Dimension:	Medium and Large(',120-190mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

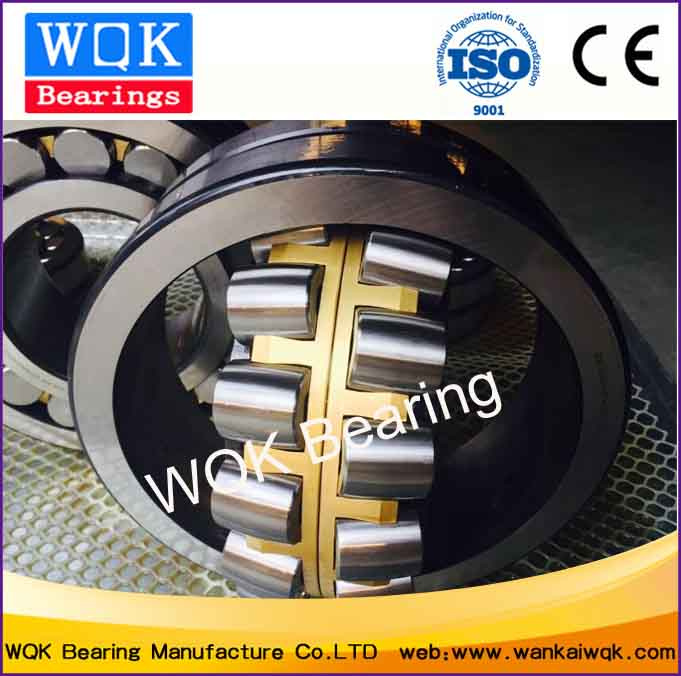

high quality Spherical Roller Bearing features

1.BAINITE QUENCHING

2.ISO9001:2008

3.Material :GCr15/GCr15SiMn / G20Gr2Ni4A

4.Hardness :HRC60-HRC64

5.Closures :Unsealed/Sealed

6.Grade : P6 P5

7.Clearance :C0, C3, C4

8.Lubrication :Oil or grease

9.Structure :Spherical Roller Bearing MB, CA, CC, and E series

10.Features: These bearings are featured by the extremely big axial load carrying capacity
and meanwhile they can also carry certain radial load

11.Application :Steel industry, oil industry, cement industry, mining & construction, paper making machinery,
rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery

Main items in stocks of spherical roller bearing:

New items					Specifications(dxDxB)	Weight/kg
23022MB/W33	23022CDE4	23022BD1	23022EAS·M	23022CC/W33	110x170x45	3.75
23024MB/W33	23024CDE4	23024BD1	23024EAS·M	23024CC/W33	120x180x46	4.2
24024MB	24024CE4	24024BD1	24024ES·TVPB	24024CC/W33	120x180x60	5.3
24026MB	24026CE4	24026BD1	24026ES·TVPB	24026CC/W33	130x200x69	7.95
24028MB	24028CE4	24028BD1	24028ES·TVPB	24028CC/W33	140x210x69	8.09
24030MB	24030CE4	24030BD1	24030ES·TVPB	24030CC/W33	150x225x75	10.5
24032MB	24032CE4	24032BD1	24032ES·TVPB	24032CC/W33	160x240x80	12.9
24034MB	24034CE4	23034BD1	24034BS·MB	24034CC/W33	170x260x90	17.5
24036MB	24036CE4	23036BD1	24036BS·MB	24036CC/W33	180x280x100	23
24038MB	24038CE4	24038BD1	24038BS·MB	24038CC/W33	190x290x100	24.2
24040MB	24040CE4	24040BD1	24040BS·MB	24040CC/W33	200x310x109	30.5
24044MB	24044CE4	24044BD1	24044B·MB	24044CC/W33	220x340x118	40.7
24048MB	24048CE4	24048BD1	24048B·MB	24048CC/W33	240x360x118	46.5
24052MB	24052CAE4	24052BD1	24052B·MB	24052CC/W33	260x400x140	66
24056MB	24056CAE4	24056BD1	24056B·MB	24056CC/W33	280x42x140	70.3
24064	24064CAE4	24064BD1	24064B·MB	24064CC/W33	320x480x160	103
24136MBK30/W33					180x300x118	44
22240MB/W33					200x360x98	43.5
21305MB	21305CD		21305E·TVPB	21305CC	25X62X17
21306MB	21306CD		21306E·TVPB	21306CC	30X72X19
21307MB	21307CD		21307E·TVPB	21307CC	35X80X21
21308MB	21308CD	21308C	21308E·TVPB	21308CC	40X90X23
21309MB	21309CD	21309C	21309E·TVPB	21309CC	45X100X25
21310MB	21310CD	21310C	21310E·TVPB	21310CC	50X110X27
21311MB	21311CD		21311E·TVPB	21311CC	55X120X29
21312MB	21312CD		21312E·TVPB	21312CC	60X130X31
21313MB	21313CD		21313E·TVPB	21313CC	65X140X33
21314MB	21314CD		21314E·TVPB	21314CC	70X150X35
21315MB	21315CD		21315E·TVPB	21315CC	75X160X37
21316MB	21316CD		21316E·TVPB	21316CC	80X170X39

high quality spherical roller bearing producing process

Our agent team

Packaging & Shipping

1). for small ones: Anti-rust oil+ plastic bag+ paper box +carton box +wooden pallet
2). For big ones: Anti-rust oil+ waterproof belt+ professional belt +wooden box + pallet

Why choice WZA

1: in the same price , our quality is higher , in the same quality , our price is lower

2: high precision , long life

3: our brand is WZA , we also can OEM

4:best service ,many stocks

WQK spherical roller bearing adopt BAINITE QUENCHING, so they can be used up to an operating temperature of 200 ° C. However, if the self-aligning roller bearings are provided with a polyamide cage, the temperature limit of the cage (max. 120 ° C permanent temperature) should be taken into account. The standard versions of WQK spherical roller bearings are supplied with brass cage type MB, CA, and steel cage type CC AND E. Mainly is CC AND MB cage which have large stock.

Main items:

22205MBW33/C3 -22256MBW33/C3,

22306MBW33/C3-22368 MBW33/C3,

23130MBW33/C3-23180MBW33/C3,

21310MBW33/C3-21340MBW33/C3,

24020MBW33/C3-24080MBW33/C3.

24120MBW33/C3-24180MBW33/C3.

23218MBW33/C3-23280MBW33/C3.

ID size: 30mm-650mm, OD size: 50mm-860mm

WQK spherical roller bearings are widely used for Mining, Steel, oil, cement, construction, papermaking, rolling mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery. WQK also supply OEM service, and design products according to your drawings or samples as well.

With registered capital of RMB10 million, our factory covers an area 10, 200 square meters and 205 staffs which include 35 technicians. WQK use advanced Germany technology and design do BEST spherical roller bearing. WQK currently has advanced equipment, a reliable quality controlling system and a highly spiritual management team, thereby providing a further guarantee of product and service quality. Insisting on the spirit of "Quality First, Honesty First", we sincerely welcome customers from both at home and abroad to cooperate with us for mutual benefits.
