| Prod Model: |
Malleable Wire rope Clip b |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Treatment: |
Quenched and Tempered |
| Test: |
Individully Proof Tested |
| Application: |
Used in Lifting Operation |
| Standard Required: |
European Standard |
Product Description
Our main produce include shackles, clips, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope, chains, snap hooks, stainless steel and solid brass riggings etc.
If you need this product, let us know ASAP.
WE ARE WAITING FOR YOU!

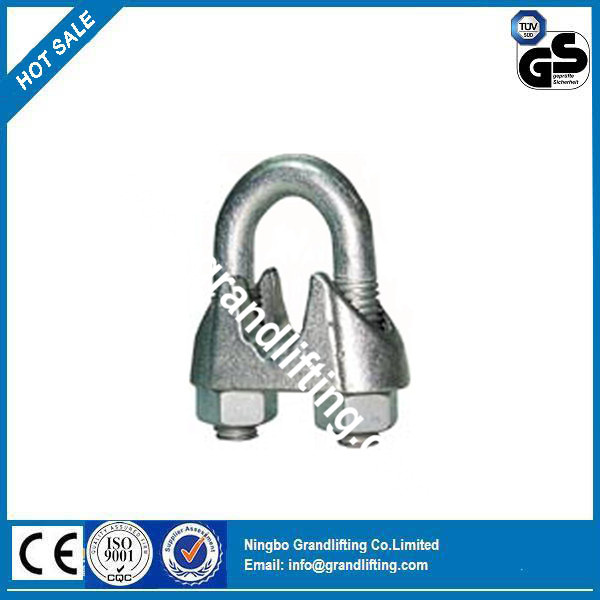

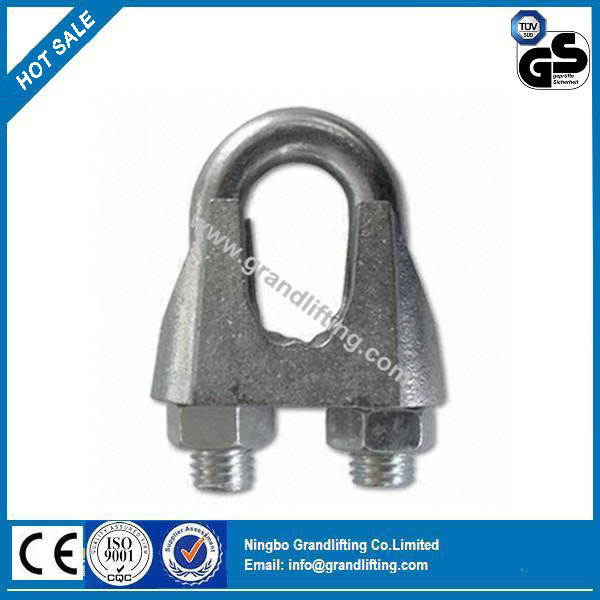

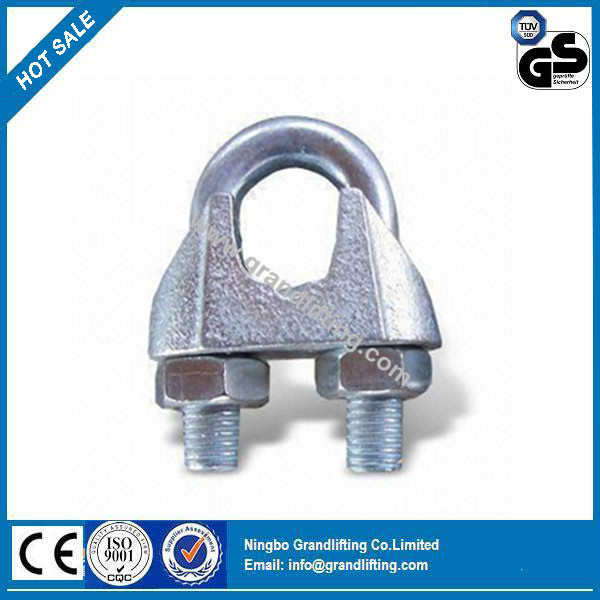

High QualityType B Galv Malleable Wire rope Clip
EN13411-5 Type A Galv Malleable DIN1142 Wire rope Clip
Type: DIN741, DIN1142, U. S. Malleable, U. S. Drop forged, Australian Malleable,
Australian Drop forged, Thailand Malleable, Thailand Drop forged, JIS Drop forged,
European Drop forged
Production process: Drop forged, or stamping
Packing: Gunny bag, wooden case, plastic drum., carton
The products are used in many area covering the marine transport, petrochemical industry, Pharmaceutical papermaking, food industry, electricity industry and so on.
For more information, please visit our website.
Essential hardware item for rigging rope, wire and cable
Zinc-galvanized for superior rust & corrosion resistance
Easy to attach, remove & reuse with hand tools
Dual nuts squeeze clamp tight for firm hold; use for anchoring, making loops, adjusting length

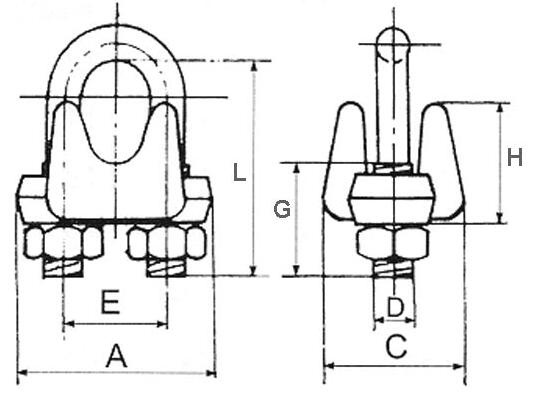

| ITEM NO | SIZE | A | B | C | D | E | F | G |
| | in | mm | mm | mm | mm | mm | mm | mm |
| ZHMWRC-B-1 | 1/8 | 9 | 12 | 12 | 4 | 9.5 | 19 | 20 |
| ZHMWRC-B-2 | 3/16 | 11 | 13.5 | 14 | 5 | 10.8 | 22 | 26 |
| ZHMWRC-B-3 | 1/4 | 12.5 | 15.5 | 14 | 6 | 11.5 | 25 | 26 |
| ZHMWRC-B-4 | 5/16 | 15.5 | 18 | 16 | 6 | 16 | 31 | 31 |
| ZHMWRC-B-5 | 3/8 | 21 | 22 | 20 | 8 | 20 | 40 | 37 |
| ZHMWRC-B-6 | 1/2 | 25 | 25 | 24 | 10 | 26 | 47 | 46 |
| ZHMWRC-B-7 | 5/8 | 30 | 28 | 28 | 12 | 31 | 55 | 57 |
| ZHMWRC-B-8 | 11/16 | 33 | 28.5 | 30 | 12 | 35 | 58.5 | 64 |
| ZHMWRC-B-9 | 3/4 | 36.5 | 31 | 34 | 16 | 36 | 65 | 71 |
| ZHMWRC-B-10 | 7/8 | 40 | 36 | 38 | 16 | 43 | 72 | 77 |
| ZHMWRC-B-11 | 1 | 45 | 40 | 44 | 20 | 48 | 80 | 88 |
