| Prod Model: |
AMD-357 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Service: |
Engineers Available to Service Machinery Overseas |
| Electric Control System: |
Siemens 808d or Fanuc |
| Warranty: |
1 Year |
| Processing Sheet Thickness: |
up to 6 mm(Mild Steel) |
| Standard Hole Shapes: |
Round, Square, Rectangle, Oval, Convex Hull, etc |
| Punching Frequency: |
600-800 Hpm |
| Dimension(L*W*H): |
4490*5300*2110mm |
| Sheet Moving Speed: |
40 M/Min |
| Loading: |
20'ot Container |
| Type: |
Turret Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

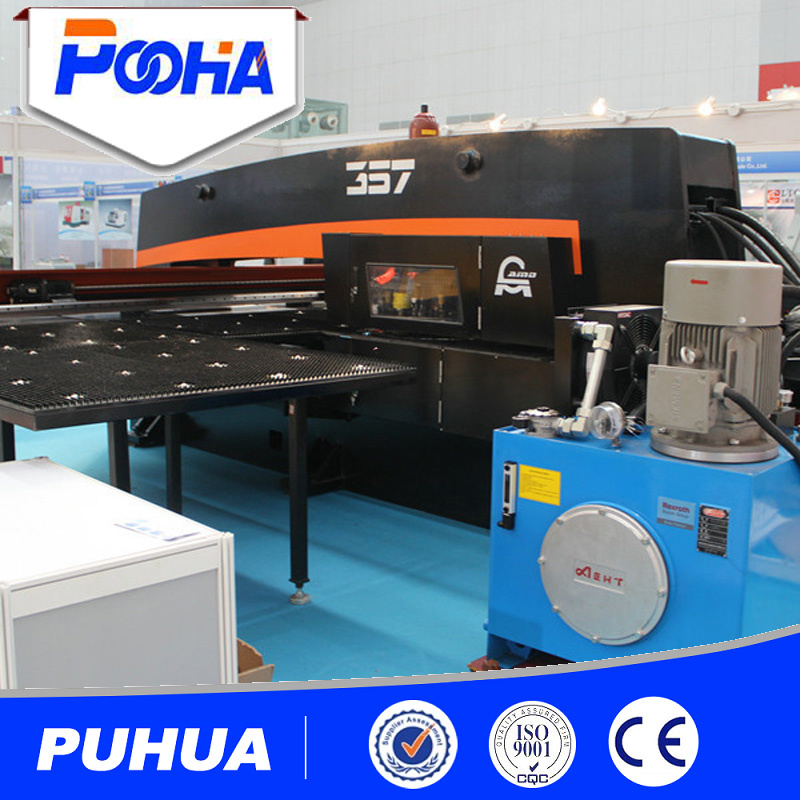

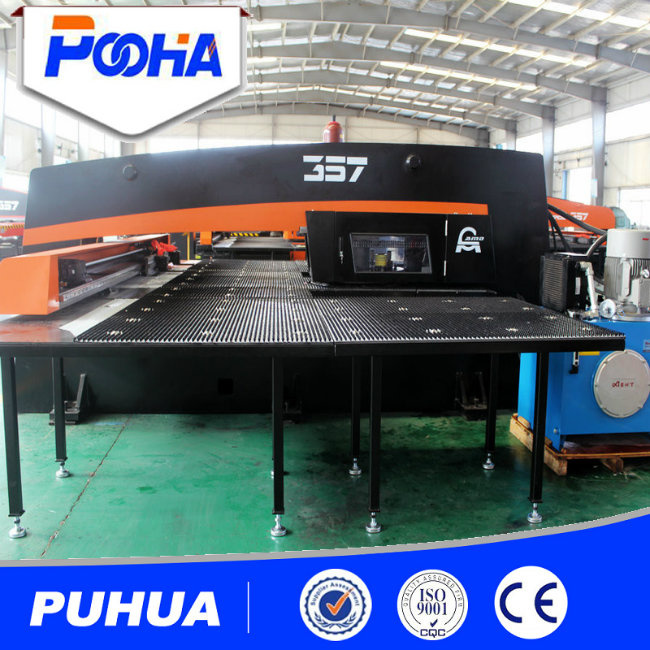

Hydraulic CNC Power Punch Press Machine
Sheet Metal Hole CNC Turret Punching Machine ApplicationCNC turret punching machine is mechatronics automation equipment, it's widely used in the chassis cabinets processing, air conditioners, refrigerators, range hood, instruments and meters, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, and other sheet metal processing industries.
Main Specification:
Specification |
Unit |
AMD-357 |
Transmission mode |
/ |
Hydraulic |
Punch force |
KN |
300 |
Power rating |
KW |
20 |
Processing sheet size |
mm |
2500*1250 |
Processing sheet thickness |
mm |
≤6 |
Max. Punch diameter |
mm |
Ø88.9 |
Sheet moving speed |
m/min |
40 |
Punching frequency |
hpm |
600-800 |
Hole accuracy |
mm |
±0.1 |
Number of stations in turret disc |
No. |
16/24/32 |
Turret rotational speed |
rpm |
30 |
Controlled axis |
No. |
3/4 |
Rotating location |
No. |
0/2 |
Air pressure |
Mpa |
≥0.8 |
Outline Dimension |
mm |
4490*5300*2110 |
Machine Weight |
T |
12.5 |

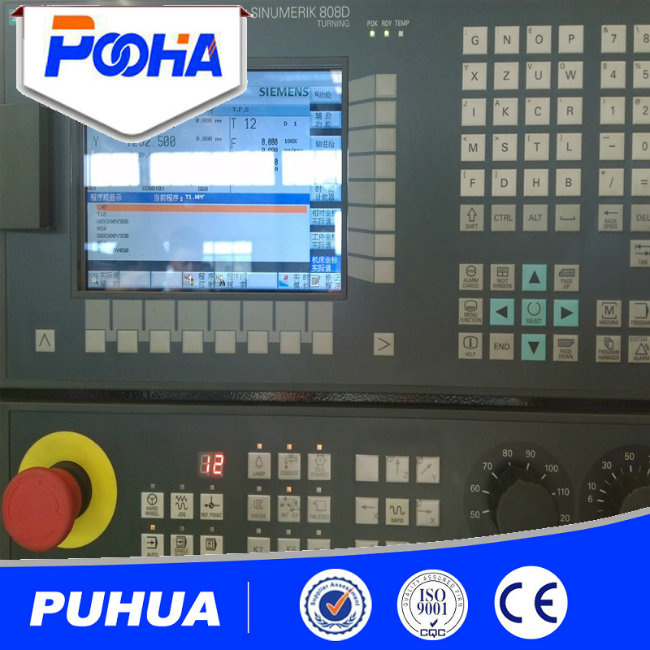

Features:1. Adopts Siemens or Fagor CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is open type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;

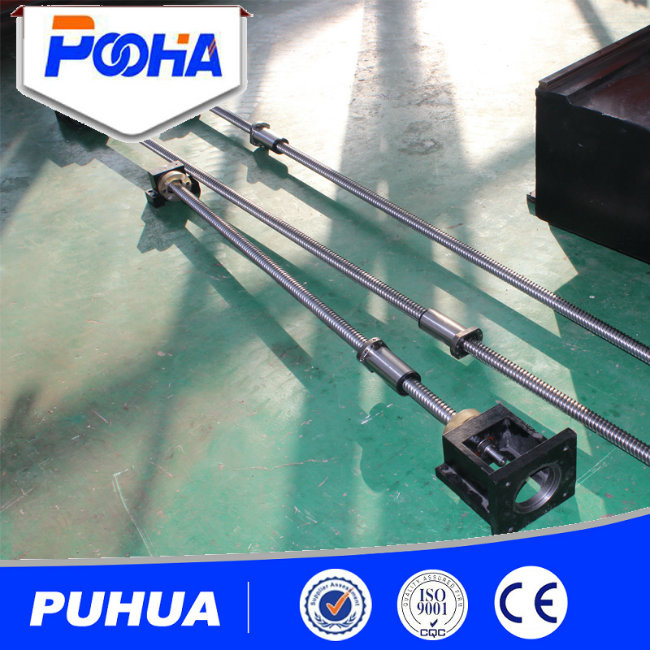

4. The transmission system use the international brand with high precision, big guide ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components, hydraulic components and transmission adopt perfectly;

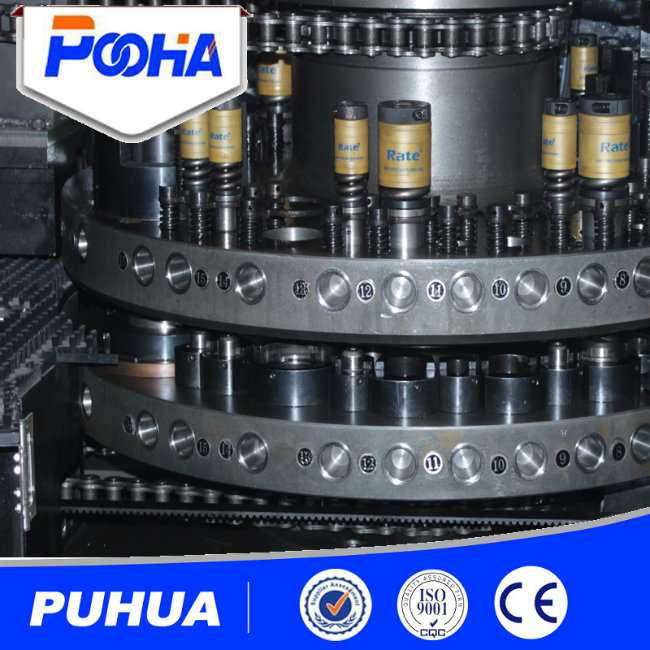

6. Use AMADA standards casting integrated thick turret mold disc and standards internationally general thick molds.

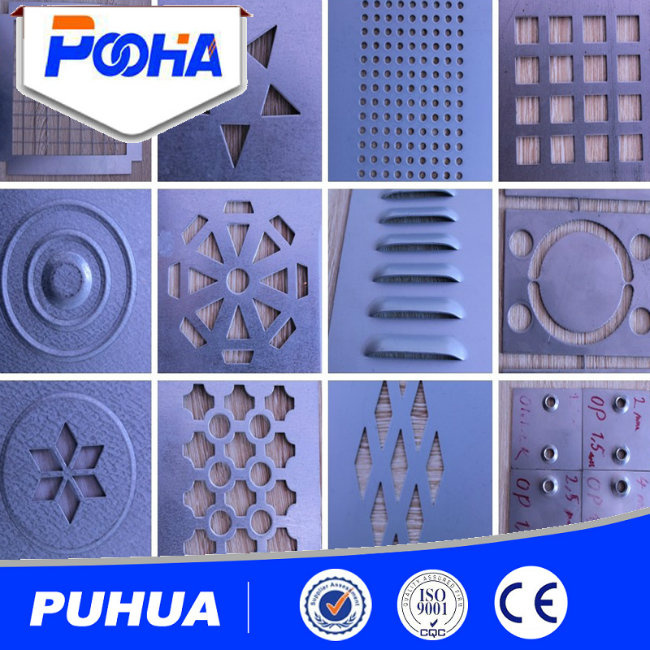

Punching Sample:
Notice:According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. Please tell us your metal sheet material.
2. The workpiece dimension, including length, width and thickness.
3. The information of your workpiece hole shapes and hole diameter.
4. It's my pleasure if you can send some photos or drawings of your products for us reference.
Based on these details information, the detailed technical proposals will be sent to you for reference.

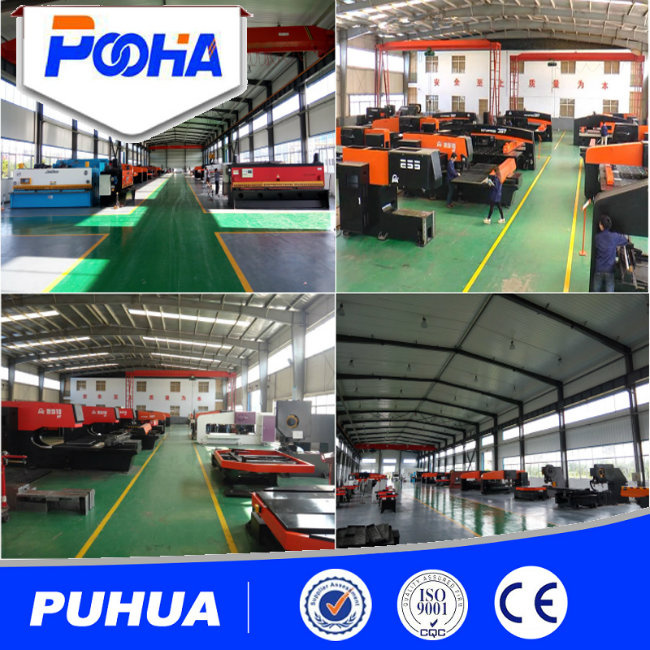

Factory Layout:
Warmly welcome to visit our factory in Qingdao!
Qingdao Puhua Heavy Industry is established in 2006, total registered capital over 8, 500, 000 dollar, total area nearly 500, 000 square meter. The company owns four subsidiary corporation: Qingdao Puhua Heavy Industrial Machinery Co., Ltd; Qingdao AMADA Numerical Control Technology Co., Ltd; Qingdao Puhua Dongjiu Heavy Industrial Machinery Co., Ltd and Qingdao Jichuan Automation Technology Co., Ltd. We are the National High-tech enterprise, collection of surface cleaning equipment, foundry machinery, painting production line, CNC forging equipment, environmental protection equipment and other industrial research and development.
The company has passed ISO90001, CE and BV certification.
The company always insists on technological innovation as the guide, focus on cooperating with world first-class company in technology, widely absorb international high-end core technology, and focus on technological innovation and talent accumulation.
Technological Achievements:
1. The first four axis CNC turret punch press in Shandong Peninsula
2. The first servo driven CNC turret punch press in Northern China
3. The first shot blasting machine used in office building external decoration
Marble in China
4. The first special high speed rail turnout shot blasting machine in China
5. The first high speed rail blasting & painting integrated machine in China
6. The first FRP cable tray shot blasting machine in China
7. The first double rotating trolley shot blasting machine in China
8. The first shot blasting machine used for aggrandizement floor grinding tool in China
As the leading enterprise of surface cleaning industry, these achievements covered multiterm technology gaps in China.
"Technological Innovation, Sincere Service" as the company business guideline, relying on high-end technology and products, developing international market, actively participate in international competition to promote Chinese products to the world, their products have exported to Europe, North America, South America, Southeast Asia, Middle East, Africa, Australia and other area, has founded agents in the USA, Russia, Saudi Arabia, Iran, Ukraine, Vietnam and other countries. "Effecient Collaboration, International Warranty" is their after-sale service principle.
"Integrity, Innovation, Integration" as business philosophy, "Informatization, Globalization" as development direction, the company insists the "Technological Innovation, Sincere Service", focus on delivering the best service and most cost performance product.
