| Prod Model: |
JA42-180 |
| Max Depth: |
180m |
| Hole Diameter: |
0-300mm |
| Usage: |
Coal, Water Well |
| Power Type: |
Electric |
Product Description
Low Price Ja42-180 Small Water Well Drilling Equipment
Applications And Features:
1 This small drilling machine occupies a small area ( 1square meters), a height of 3.5 metersstand, the job can be installed in less than ten minutes.can be used at indoor and outdoor site.
2 Can be disassembled, after dismantling ,the total length is less than 2 meters, the largestcomponent is no more than 40 kg.Can be load on a vehicle as it is very light.
3 The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water.
4 The drills has rock breaking ability. can drill 50 meters per hour. The deepest hit is 180 meters,can pierce the hard rock accompanied by a diamond bit.
5 Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble.
6 All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.
Technical Parameters:
| The Max Drilling Depth | 180 m |
| The Max Drilling Width | 300 mm |
| Main Machine Power | 4.5 kw |
| The Power Of Driving Motor | 1.25 kw |
| The Power Of Lifting Motor | 1.1 kw |
| The Power Of Submersible Pump Motor | 2.2 kw |
| The Drilling Pipe Rotation Speed | 150 r/min |
| The Area Of Working Platform | 1 M2 |
| The Max Height OF Well Stand | 3.5m |
| Maximum weight of a single piece after dismantling | 40 kg |
| Maximum length of a single piece after dismantling | 2 m |
| The Size Of Case1 | 1100X450X450mm |
| The Size Of Case2 | 670X670X450mm |
| The Weight Of Machine | 600kg |
| The Number Operating Person | 2 |
| Portable Economical Water Well Drilling Machine Design |
| Main Machine | JA42-180: 42mm Dia shaft and pipe |
| JA50-180: 50mm Dia shaft and pipe |
| 42mm Dia drilling pipe | 2m/piece |
| 1.5m/piece |
| 50mm Dia drilling pipe | 2m/piece |
| 1.5m/piece |
| 11cm and 20cm Alloy Steel Drilling Bit | can drill normal soil ground |
| 11cm and 20cm Diamond Drilling Bit | can drill mixed rock/sand/soil ground |
| 11cm-13cm Three-wing Diamond drilling bit | can drill rock |

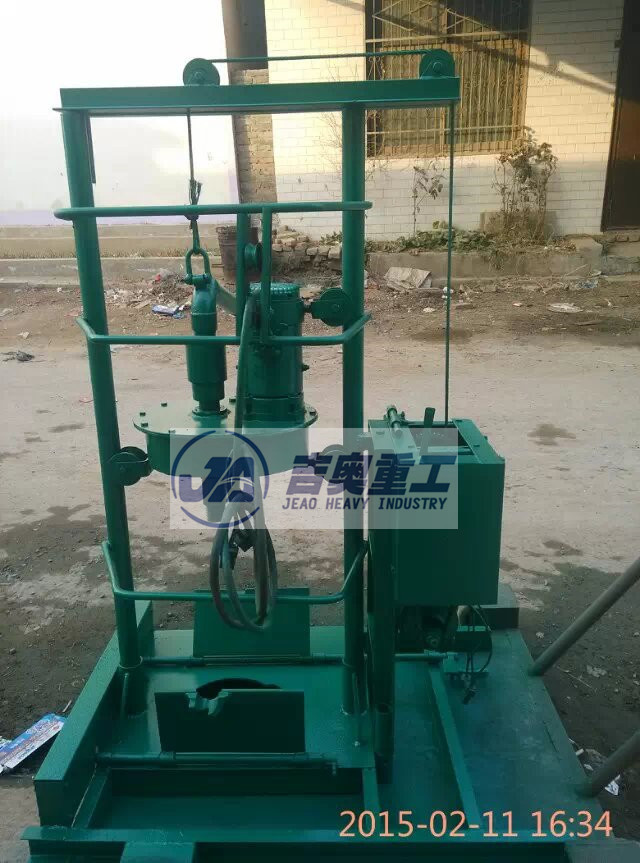

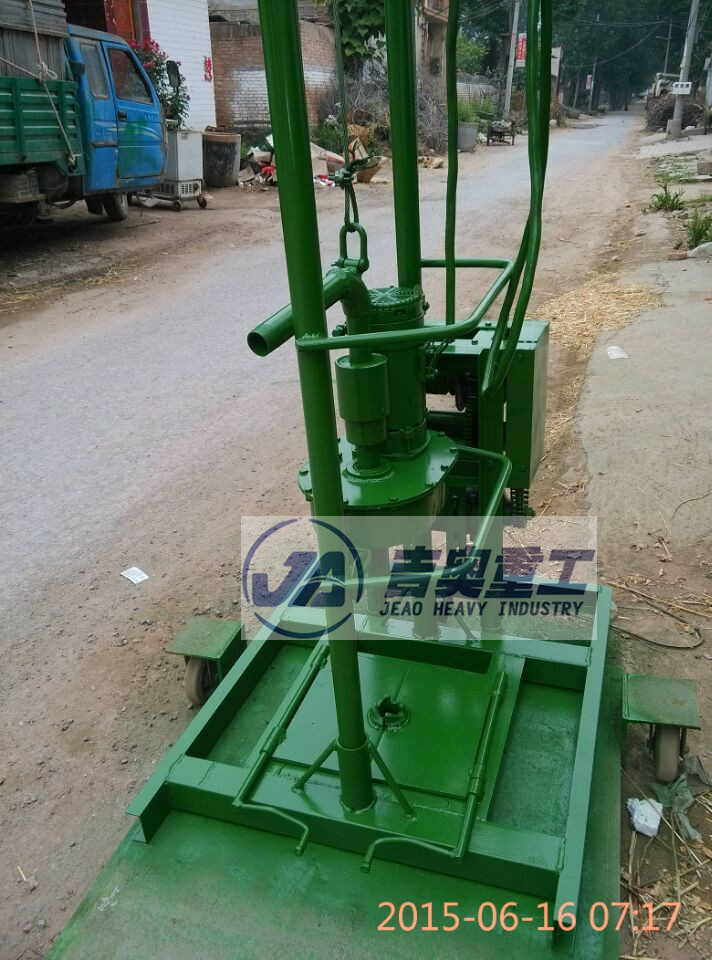

Picture:
