| Prod Model: |
PLC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
PLC Control Lifting System |
| Color: |
Customize |
| Delivery Time: |
10-20days After Receive Payment |
| OEM: |
Yes |
| Warranty: |
1 Year |
| Payment: |
T/T |
| Voltage: |
220V |
| Customized: |
Customized |
| Type: |
Lifting Control System |
Product Description
PLC Control Synchronous Lifting System
Specifications:
*Lifting Points: 4, 8, 12 or 16, 24, 32, 64
*Maximum Operating Pressure: 700 bar
*Capacity: 200Ton, 400ton, 800ton, 1200ton, 2000ton, 4000ton, 5000ton, 10000ton.
*Loading height: 10-500mm
*Accuracy Over Full Stroke: ± 0.1mm
*Computer controlled sync jack-up system.
*Single operation, computer controlled friendly human-computer interface.
*Coupled with high precision electronic control devices and displacement, pressure detection system.
*Closed loop control system with frequency control, synchronization accuracy of up to ± 0.15mm.
*Continuously adjustable flow pump, speed of lifting cylinder can be precisely controlled.
*Sync control 4 sets cylinders and sync equipment have more lifting positions available.
*Two-speed output, quickly retract for plunger rod.
*Valve controlled auto balance function.
*Providing the data records, displaying illustration and printing functions.
*The length of sensor extension is different from the cylinder stroke.
*Automatically halt when reaching end of pre-established stroke or overloading.
*Meet the simultaneous lifting, synchronized landing, heavy weight measurement and other functions.
*Vehicle-mounted design, convenient for moving.

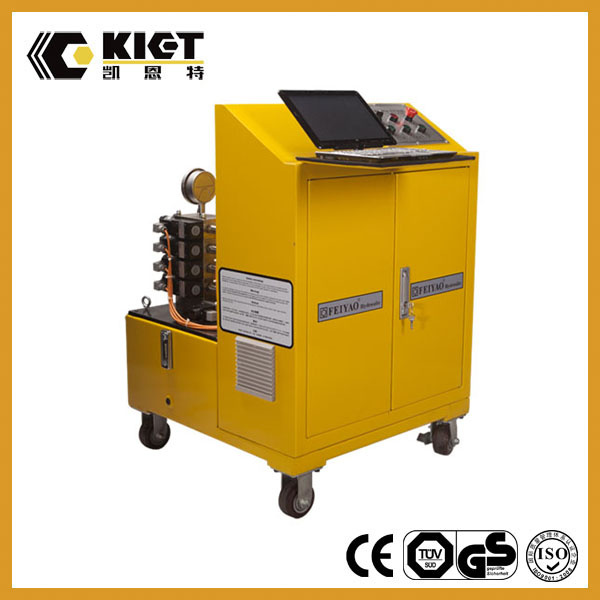

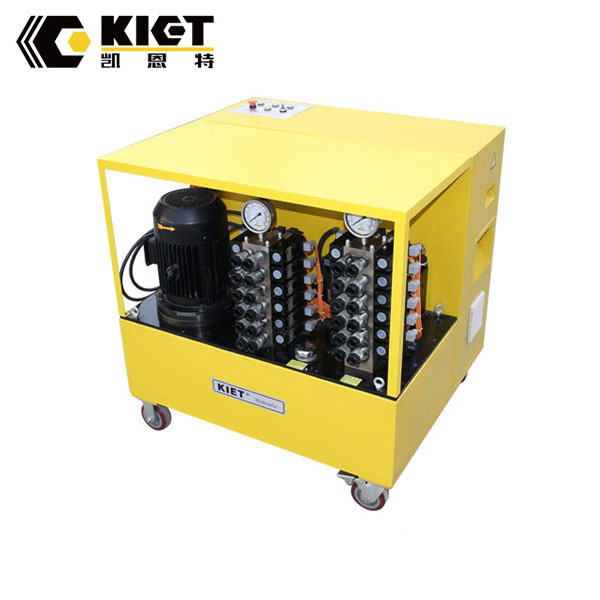

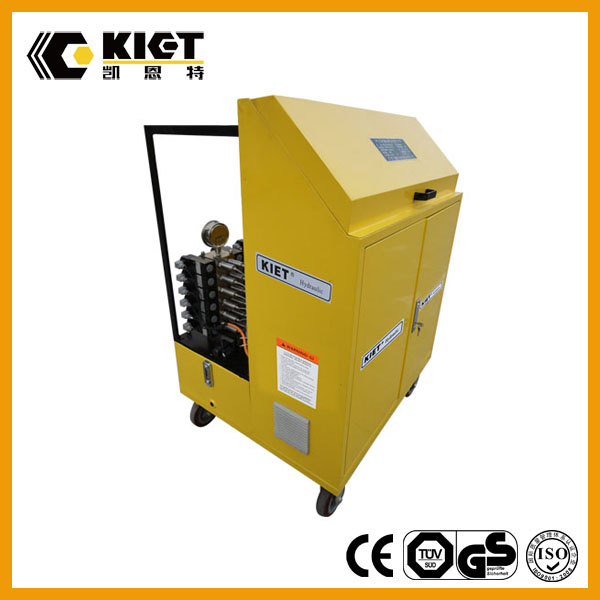

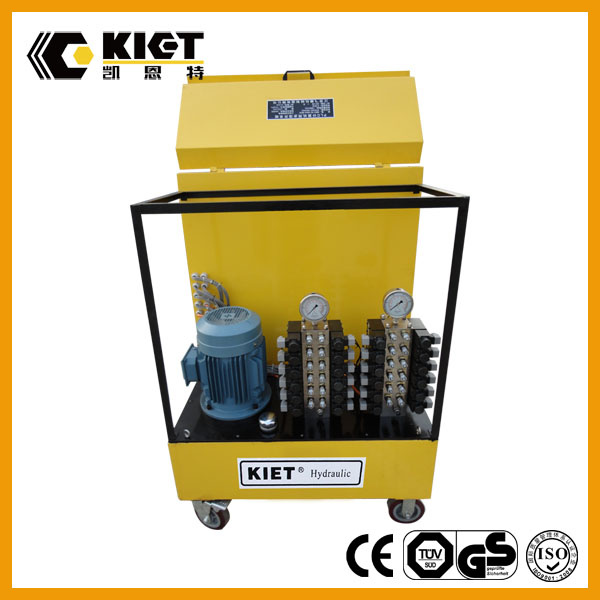

Pictures
Our Service:
KIET provide one year guarantee for all the hydraulic tools. We promise if there is any dysfunction of the hydraulic tools during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Packaging & Shipping:
We provide wooden packing for each PLC synchronous system, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.
Company Information:
Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
More Information and questions please feel free to contact me:
Aaron
Mobile: +86 18052610078
Office: +86 523-81569666
Hydraulic Tools Manufacturing Leader !
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Factory: No.199 , JingEr Road Economic Development Zone, Taizhou City, Jiangsu of China
Website: www.kaientehydraulic.com
Welcome to visit our Factory!
Model Number | Lifting Points | Weighing | Centre of Gravity | Oil Flow at 200 bar (l/min) | Oil Flow at 700 bar (l/min) |
| KT-4421380 | 4 | - | - | 11,1 | 2,1 |
| KT-821380 | 8 | - | - | 11,1 | 2,1 |
| KT-1221380 | 12 | - | - | 11,1 | 2,1 |
| KT-440380 | 4 | - | - | 11,1 | 4,0 |
| KT-840380 | 8 | - | - | 11,1 | 4,0 |
| KT-1240380 | 12 | - | - | 11,1 | 4,0 |
| KT-421380W | 4 | yes | yes | 11,1 | 2,1 |
| KT-821380W | 8 | yes | yes | 11,1 | 2,1 |
| KT-1221380W | 12 | yes | yes | 11,1 | 2,1 |
| KT-440380W | 4 | yes | yes | 11,1 | 4,0 |
| KT-840380W | 8 | yes | yes | 11,1 | 4,0 |
| KT-1240380W | 12 | yes | yes | 11,1 | 4,0
|
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
