| Prod Model: |
DFQ-100T |
| Application: |
Water Well, Bore Well, Borehole |
| Drilling Depth: |
100m |
| Drilling Caliber: |
105-150mm |
| Gas Consumption: |
11-17m3/Min |
| Impactor: |
DHD340/350 |
| Power: |
24kw |
| Walking Speed: |
0-5km/H |
| Weight: |
2100kg |
| Rotary Torque: |
1200n.M |
| Usage: |
Borehole |
| Power Type: |
Diesel |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
Product Description
Product Description

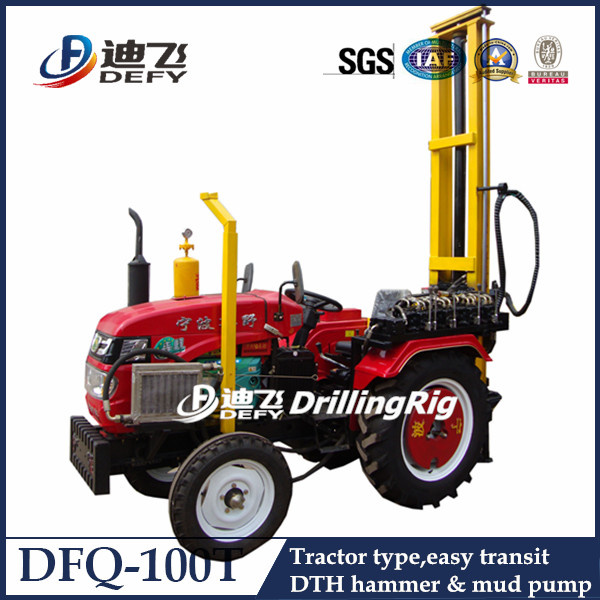

DFQ-100T small dth hammer drill is a new type tractor mounted dth hammer drilling rig. It equipped with four tractor wheels, operator seat and a powerful diesel motor. The machine can move around easily with the speed of 5km/h, very convenient for one person to do the drill work and change the work site frequently.
The machine equipped with BW-160D high-pressure mud pump and air compressor, mud pump is used for superficial soil drilling; while pneumatic drilling for rock areas, strong applicability for all kinds of ground.
It is widely used for water well drilling,geothermal air-conditioning project and other boreholes, especially applicable for mountain area and rock formation water engineering.
Much higher efficient than the traditional rotary drill rigs, creating the considerable economic benefit for users. Especially solve the problems of drilling hard rocks that the traditional rotary drilling rig meet, ,able to work effectively in all kinds of geological conditions.
Features:
1.Tractor mounted with operator seat, extremely convenient to drive.
2.Equipped with powerful diesel motor, provide strong driven force.
3.Multifunctional, both earth and hard rocks can drill.
4.Easily to operate, only 1 people can start the drill work.
Specifications:
| NO. | Item | unit | specification |
| 1 | Max. drilling depth | m | 100 |
| 2 | Drilling caliber | mm | φ105-150 |
| 3 | Unit Length of drill pipe | mm | 1500 |
| 4 | Diameter of drill pipe | mm | Φ73,φ63.5 |
| 5 | Work pressure | MPa | 1.05-1.7 |
| 6 | Gas consumption | m3/min | 11-17 |
| 7 | Impacter | / | DHD340\350 |
| 8 | Impacting frequency | Hz | 1200-1500 |
| 9 | applicable rock hardness | f | 6-12 |
| 10 | power | / | 24Kw/2200rpm |
| 11 | Climbing capacity | ( °) | 25 |
| 12 | Walking speed | Km/h | 0~5.0 |
| 13 | Ground clearance | mm | 280 |
| 15 | System pressure | MPa | 20 |
| 16 | Propulsion | tonf | 5.0 |
| 17 | Lifting force | tonf | 8.5 |
| 18 | Speed of spindle | fast | rpm | 115 |
| slow | rpm | 75 |
| 19 | Rotary torque | N.m | 1200 |
| 20 | Dimension | mm | 3200*1600*2050 |
| 21 | weight | Kg | 2100 |
FAQ:
1. Q: How could I know whether you are a Manufacturer or Trading company?
A: We master the technology, and constantly adjust our products according to the market trend and customer feedback, ensure product quality. As a professional drilling equipment manufacturer, you are welcomed to visit our factory to see and try your machine by yourself before purchasing.
2. Q: How to buy your drilling machine?
A: After confirming the goods you want, deposit for ordering the goods, then the good prepared for confirmation, payment balance, and then shipment.
3. Q: I am not familar with a new machine, how to use it?
A: First, the machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;
4. Q: How can I change the broken parts if the machine got problems?
A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.
Warranty:
All accessories of our machinery is available at Factory-price all Year around. We always do our best to solve our customers' worries.
We provide Turn-Key solution for all drilling project. No matter what you need, the professional drill machine, drill parts or just professional suggestion, you can send us an email and we will respond and offer you Complete set of Drilling Machine as per your requirements.
