| Prod Model: |
PR52 |
| Sizes: |
5 Inch |
| Model: |
Re531,Re004,Re542,Re543,Re545,Re547,Pr52,Pr54 |
| Connection Thread: |
4"-4.5" Remet or Metzke |
| Application: |
Reverse Circulation Drilling |
Product Description
Features:
Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;
Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.

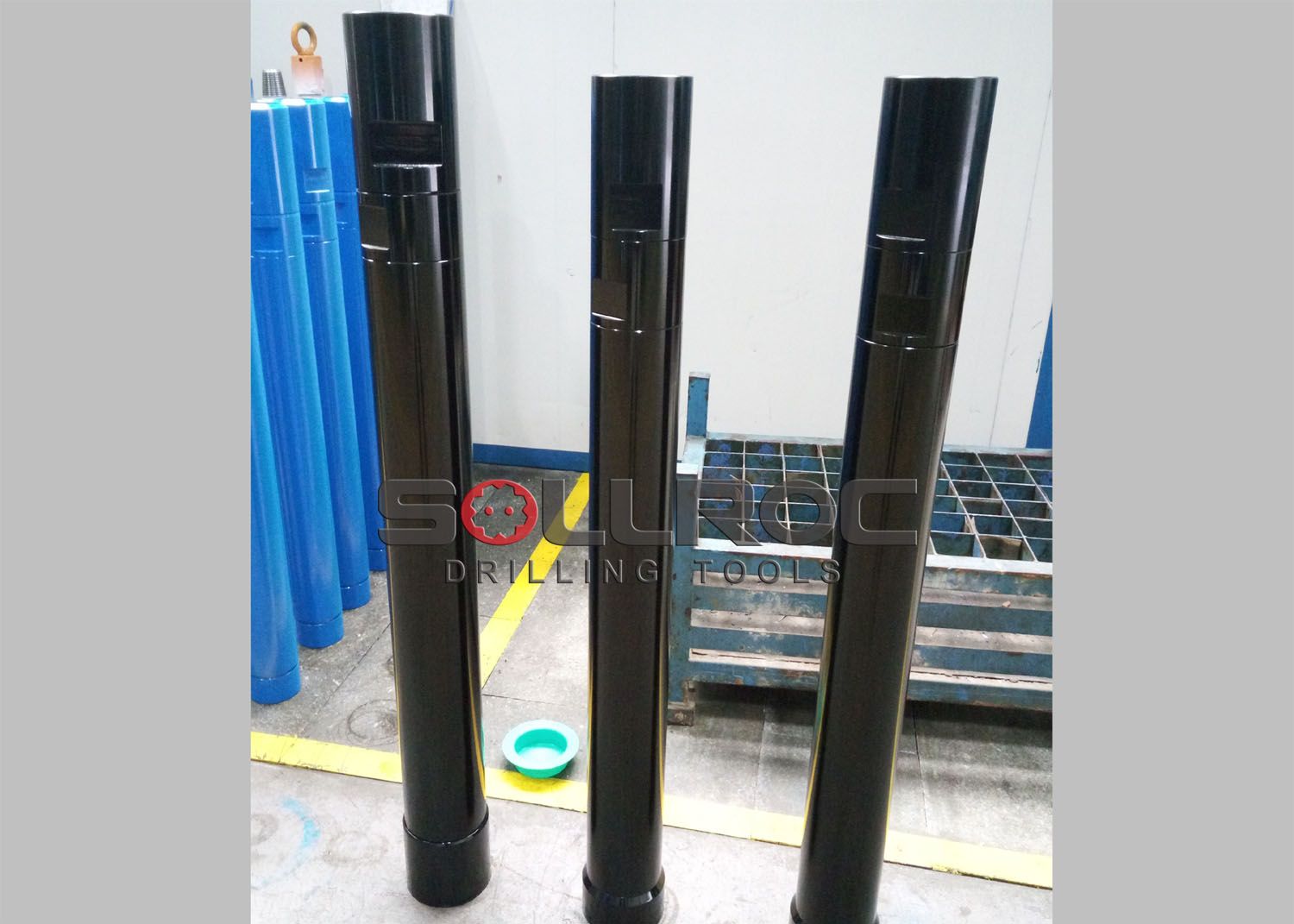

Model RC5.5-P52/P52R RC hammer technical date:
| Length (less bit) | 1227mm |
| Weight (less bit) | 68.5kg |
| External diamater | φ121mm |
| Bit shank | PR52 |
| Hole range | φ126-φ142 |
| Connection thread | 4"-4.5" Remet
4"-4.5" Metzke |
| Working pressure | 1.5Mpa-3.5Mpa |
| Air consumption | 1.7 Mpa | 16 m³/min |
| | 2.4 Mpa | 22 m³/min |
| | 3.0 Mpa | 28 m³/min |
RC bits can be available:
1). RC bits for 3" RC Hammer: Diameter(86mm-102mm), shank type: RE531,
2). RC bits 3.5" RC Hammer: Diameter(98mm-115mm), shank type:RC3.5
3). RC bits 4'' RC Hammer:Diameter (104mm-127mm), shank type: RE004
4). RC bits 4.5'' RC Hammer:Diameter(113mm-135mm), shank type: RE542,RE543
5). RC bits 5" RC Hammer: Diameter(122mm-142mm), shank type: RE545,PR40,RE004
6). RC bits 5.5" RC Hammer: Diameter(133mm-146mm), shank type:PR52, RE547, PR54,RE052,RE054
Other size can be upon to customer's requirements
We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc. SOLLROC always provide high quality products to customers.
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
