| Prod Model: |
HX5042 |
| Design System: |
Auto-CAD, Caxa |
| Nesting Software: |
Fastcam |
| Power Supply: |
China Huayuan or USA Hypertherm |
| Control System: |
Starfire, Flmc-F230A, Start, Nc-Studio |
| Cutting Way: |
Plasma Cutting and Flame Cutting |
| File Transmission: |
USB |

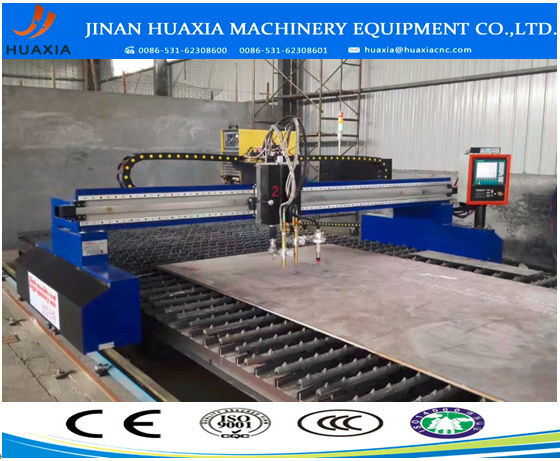

Product Description
Product introduction:1, the gantry type CNC cutting machine can equip with different plasma flame more cutting torch according to customer different configuration.2, CNC flame / plasma cutting machine is a kind of high efficiency, energy saving cutting equipment. Precision cutting work is suitable for all kinds of thickness of carbon steel, stainless steel and non-ferrous metal plate blanking, improving utilization of material, saving time and material . CNC flame cutting machine can max cut 5 - 300mm thickness with of high quality for carbon steel material.
3, gantry type beam, it's bearing capacity is good, suitable for wide span, effective bilateral drive, compact structure, whole temper, sufficient to eliminate welding stress, stable and reliable performance.
4, the X axis guide rail with domestic or imported linear guide rail, high precision, good guide. The Y axis guide rail adopts traits, the surface by grinding processing, has the very high mechanical precision and wear resistance.
5, the driving rack , gear by the professional manufacturer of custom, it's surface carburizing and quenching, high precision. The X and Y axis transmission adopts Germany NEUGART high precision, high torque, low backlash, maintenance free planetary gear reducer.6, the drive system can choose servo drive or stepping driving, according to the requirement of customers can choose the world's top brand from Japan -- Panasonic AC servo or stepper motor drive, can be more stable running speed, a wider range of speed transmission, short acceleration time;
7, lower body is made of aluminum alloy structure, lifting guide adopts the linear guide rail with ball screw lifting;
8,Automatic programming system is simple and easy to use.
9, control system adopts currently the most excellent stability and strong anti-interference ability.
10, multi configuration cutting usage, the cutting tool by configuring different, different cutting torch system can meet all kinds of fire, powder spraying, plasma processing applications.
11, the system is divided into gas control panel and the gas path distribution system, production of professional manufacturers. Equipped with automatic ignition device, a backfire preventing device, safety and stability.
12, according to the requirements can be equipped with various kinds of imported or domestic plasma cutting, for different metal materials.
13, add other special function according to special requirement .Gantry Plasma machine fit to thick plate .
Parameter:| Guide length(mm) | 3000 | 4000 | 5000 | 6000 | 7000 |
| Working width(mm) | 2200 | 3200 | 4200 | 5200 | 6200 |
| Control system | SHANGHAI FLMC-F2300A/BEIJING STARFIRE or customed |
| Flame cutting torch | The special NC flame cutting torch |
| Plasma power supply | According to the customer requirement |
| Torch distance(mm) | 200 |
Travelling speed
(mm/min) | 0-10000 |
| Cutting speed(mm/min) | 0-6000 |
| Flame cutting thickness(mm) | 5-300 |
| Plasma cutting thickness(mm) | According to the plasma power |
| Gas type | Acetylene, propane or natural gas
|
| Cutting Table and Base | we will supply darwing of cutting table
Base (H-beam )and cutting table are not supplied |

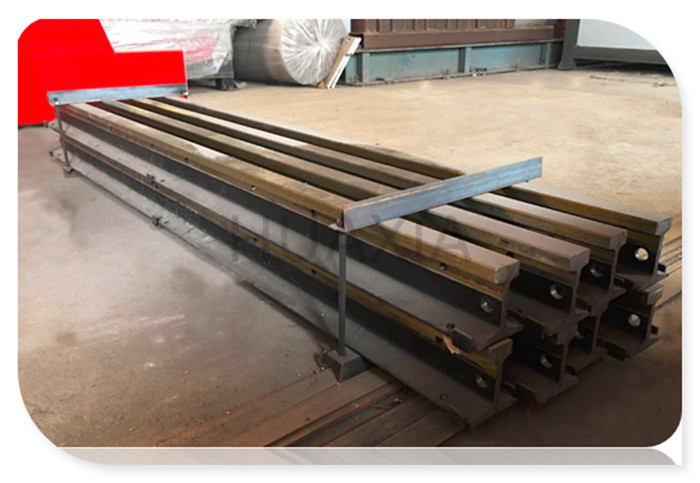

Rail:

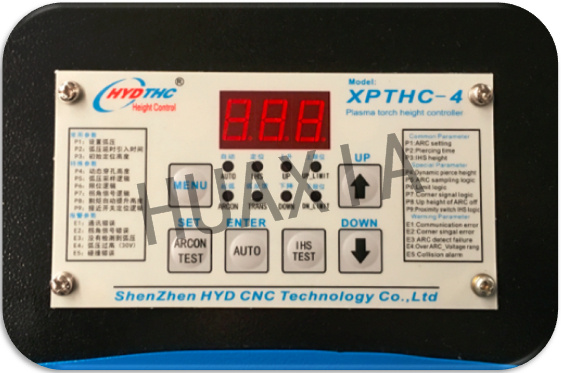

Automatic torch height controller:

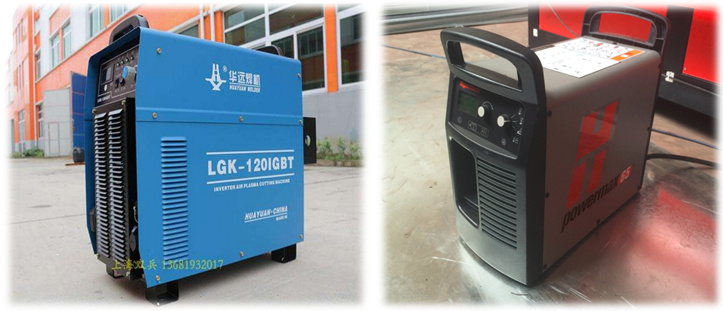

Power supply: China HUAYUAN power and American Hypertherm power

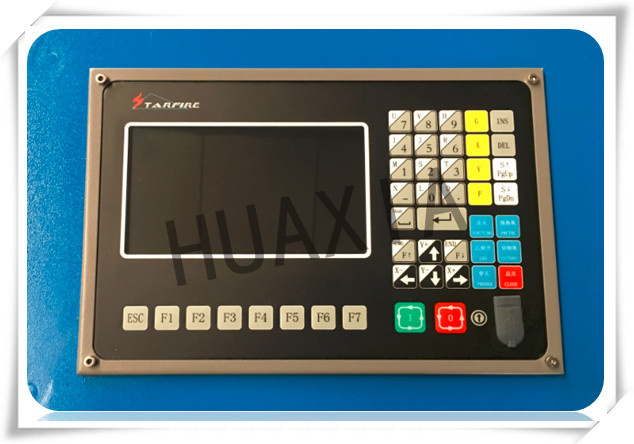

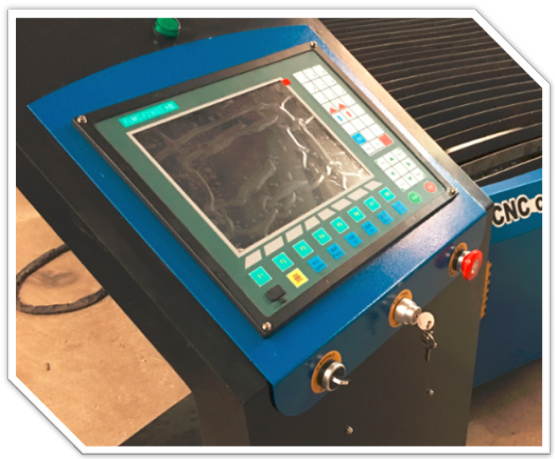

Control systerm:

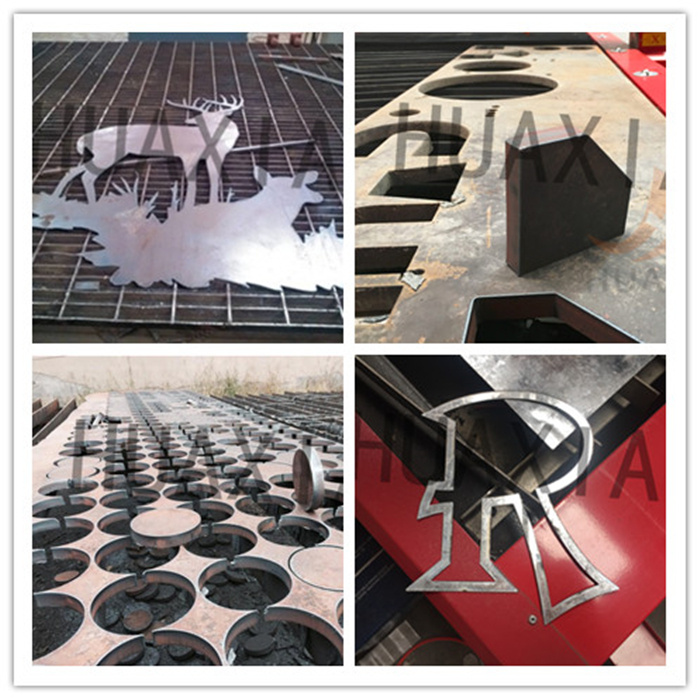

FLMC-F2300A Control Systerm STARFIRE Control SystermSample:
