| Price: | US $ 5150-5560set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Prod Model: | SYJ-400 |
|---|---|
| Position Accuracy: | 0.01 mm |
| Certificate: | Ce |
| Voltage | AC 110V or AC 220V +/- 10% (please select and highlight the working voltage for cutting saw and vacuum pump in your requirement.) |
| Motor | Brush-less magneto DC motor (110V) with variable speed up to 3,000 rpm. Power consumption: 180W |
| Effective Cutting Range | 3 dimension: X-axis: 8" Y-axis:4" Z-axis:4" |
| Moving/Cutting Speed Range | X-axis: 1-50mm/min adjustable Y-axis: 1-50mm/min adjustable Z-axis: 1-20mm/min adjustable |
| Accuracy | 0.0025 mm moving resolution and 0.01 mm position accuracy. |
| Cutting Blades Kits | One 4" Dia x, 0.35 mm thick fully sintered diamond blade Two pairs of flanges with 62 mm Dia. ( for dicing ) and 42 mm Dia. (for deep cutting) |

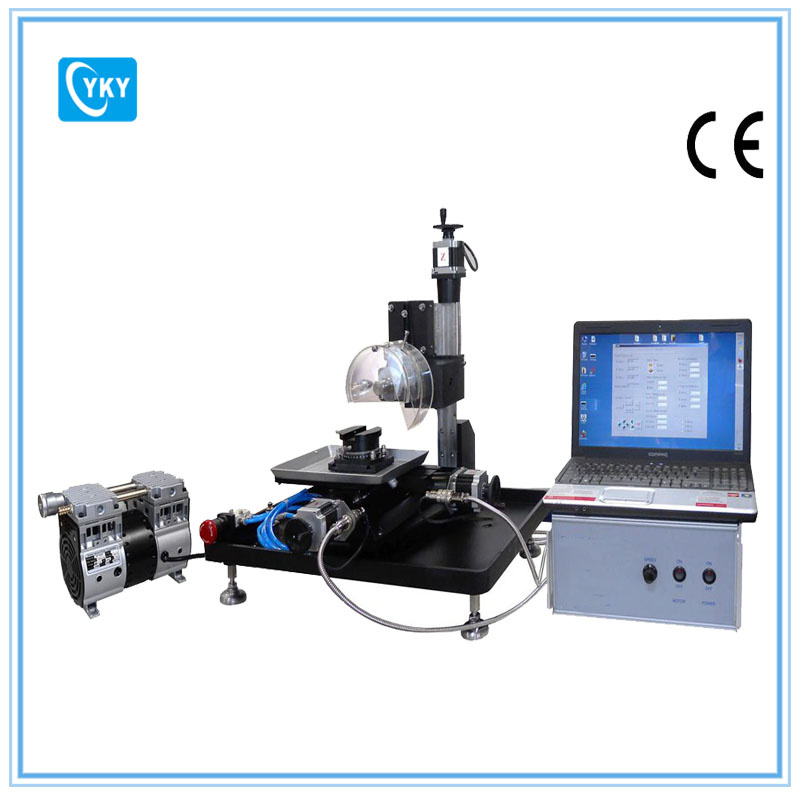

| PC Software | Labtop and PC software are provided with the equipment. Cutting parameters can be set in software as cutting length, width, diameter, time, feed speed, kerf loss, etc Manual or programmable control mode compatible with Win 7/8/8.1 Click the pic below to view software interface. |
| Water Cooling | Assemblies of water jetting, draining, and Transparent plastic splashing protection is included. |
| Accessories | Complete accessories are included for immediate use, including 120L/min Oilless vacuum pump, 4" diamond blade and sample holder.etc. Please see below standard package for details One vacuum chuck (P/N ECO402) and adhesive film (P/N ECO 419).are included for dicing the thin wafer |

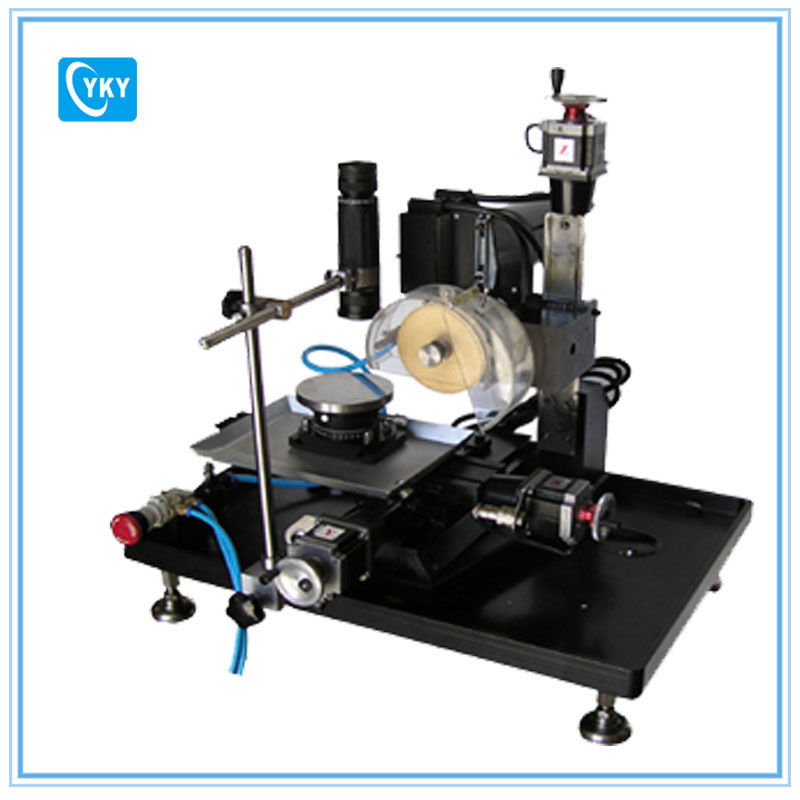

| Optionals | For longer wire life, please use LubeCool -150 Smart Solid Lubricant and Coolant For better lighting, please consider a Fiber Optic Y-shape Dual Light Microscope Illuminator In order to ensure accurate alignment when cutting the wafer, you should choose 25x stereo microscope with support frame (P/N ECO 421). For dicing Si, Ge, GaAs and quartz, LiNbO3 wafers, you may consider using 100 microns ultra-thin diamond blade because of fewer kerfs. |
| Net WT& DIMEN | Net Weight: 33.5 kg 580 L x 560 W x 660 H (mm) |
| Shipping WT & DIMEN | Shipping weight: 170 lbs 48"L x 40"W x 37"H (inch) |
| Warranty & Compliance | One year limited with lifetime support ---but not including damages caused by misuses, such as rusted part from inadequate storage and broken parts by the user. |
| Certification | CE certified. With additional certification fee, we can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request. |
| Application Notes | Must use anti-corrosion coolant during cutting to avoid rusting the lead screw. Please never use water as a coolant during cutting. You may select our LubeCool-150 lubricant as the coolant, and build up a small circulation system with 6L circulating coolant tank, which will make the diamond blade cut more efficiently and prevent corrosion. Also, you can use W10-30 motor oil as a coolant, which is available at any Auto store.
|
| Warning | It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil based coolant or lube cool lubricant with the water. Do not use tap water directly, otherwise, the rusting component is not part of the warranty. Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused by the spooler driving mechanism. For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond blade frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the blade sharp enough for efficient cutting. Please clean the machine after the completion of each use, especially the lead screw using WD-40 lubricant (1 can include) after each use. Make sure the X, Y, and Z axes can move freely without blocking and rusting. |
| Part No | Description | Quantity |
| EC 401 | Cross mount vise | 1 pcs |
| EC 403 | Controller | 1 set |
| EC 404 | Mechanical chuck and T-bolts assemblies Set | 1 pcs |
| EC 405 | Water splash guard for covering 4" blade | 1 pcs |
| EC 406 | Aluminum plate | 2 pcs |
| EC 407 | Wax for gluing samples | 2 pcs |
| EC 408 | Resin Bonded Ceramics for Samples Holding (50 x 50mm) | 2 pcs |
| EC 409 | Fully sintered diamond blade 4"x 0.3mm x 1/2" arbor | 1 pcs |
| EC 410-6 | Blade clamps (62 mm in dia.) | 1 pair |
| EC 410-4 | Blade clamps (42 mm in dia.) | 1 pair |
| EC 411 | 4" Steel plate for holding samples | 1 pcs |
| EC 412 | Screw drivers | 1 set |
| EC 413 | Water and drain hoses | 1 set |
| EC 414 | Operation manual and software | 1 set |
| ECO402 | 4" Vacuum chuck | 1 set |
| ECO 419 | Film for wafer bounding to vacuum chunk | 1 set |

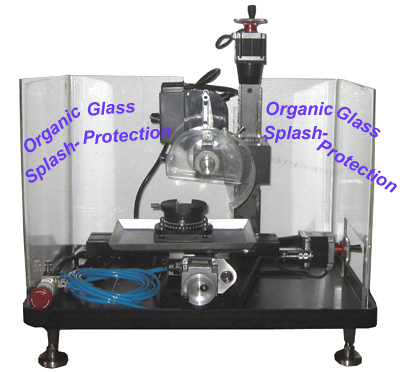

| EC300 | Plastic splash-protection cover | 1 set |
| EQ-LSS-021 | Diamond Blade Dressing Stone | 1 set |
| EC550 | A 14"-15" laptop with software installed | 1 set |
| ECO418 | 120L/min Oillless Vacuum Pump - EQ-OFP-14 | 1 set |

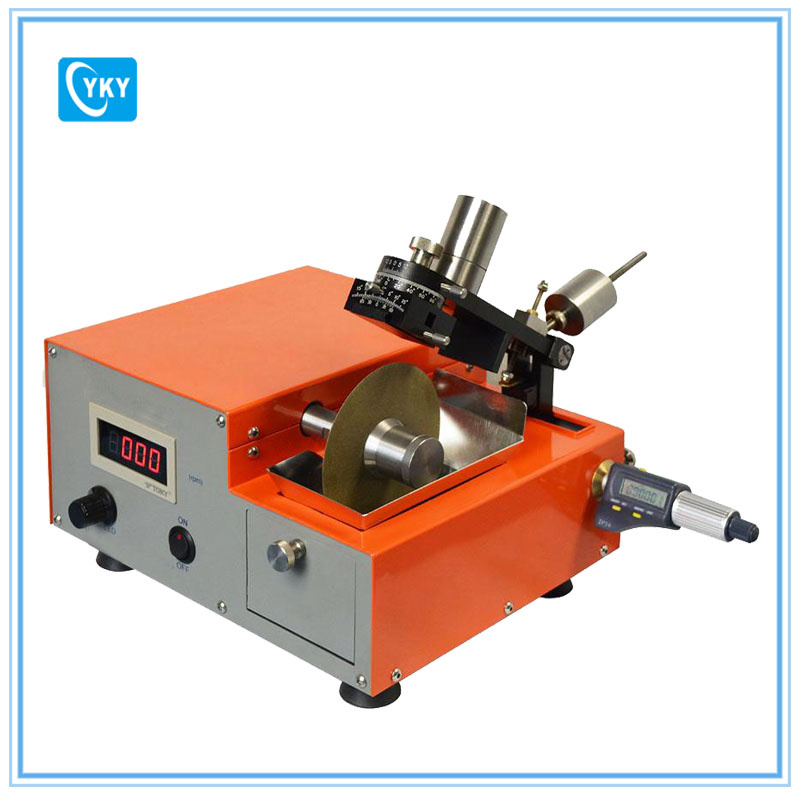

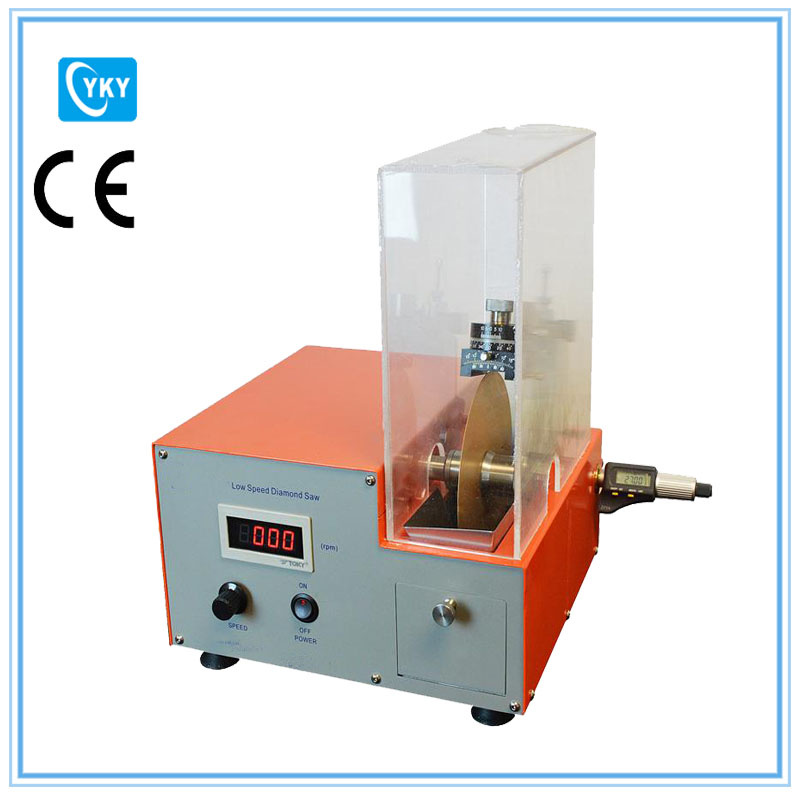

Other related diamond cutting saw that you may need:
