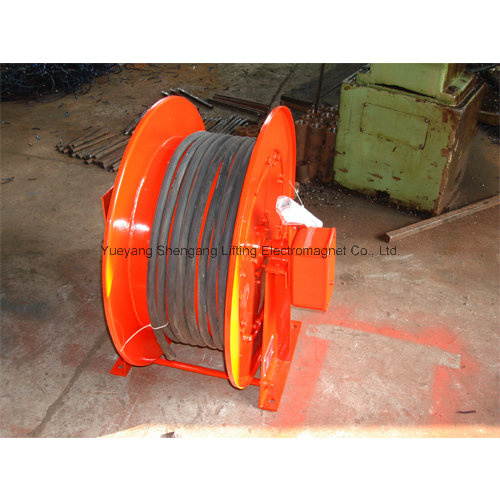

Spring of Cable Reel for Rewinding Power Cable
| Price: |
US $ 300-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JTD50-50-4 |
| Color: |
Red |
| Power Type: |
Spring Driven Type |
| Installation Pattern: |
Horizontal Coiling |
| Current Capacity: |
50A |
| Coil Length Of Cable: |
50m |
| Phase Number/Hose Number: |
4 Phase |
| Structure Type: |
Slip Ring Built-in |
| Matched Cable Model: |
Yc 3*6+1*4 Sq mm |
| Application: |
Lifting Electromagnet, All Kinds of Cranes etc. |
| Power Source For Cable Reel: |
Spring or Motor Type |
| Type: |
Module Connecting Machine |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Insulation |
Product Description
Spring of Cable Reel for Rewinding Power Cable
Description:
1. JT Series spring type cable reel is designed by our factory specially. It is a kind of automatic mechanical device which is driven by the spiral springs and using a spring energy storage automatic coiling cable.
2. It is suitable for all kinds of situations where the mobile cable power supply is needed, such as lifting magnet, electromotion flat car, all kinds of crane, hydraulic pressure grab bucket etc. It has the characteristics of easy power-supply, reliable operation etc.
Structures and Features:
-- Using spiral springs as power without electric energy consumption to keep reliable in operation;
-- Using collector slip ring carbon brush bracket to transfer the electric energy steadily and continuously;
-- Equipped with reversible unit/guide pulley to avoid the reel counter-rotating to break the springs;
-- Power supply easily, safety and reliability in operation.
-- Ways of coiling cable: Mid-feed(with guide pulley) or End-feed.

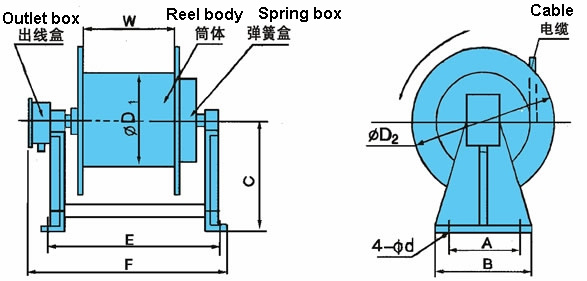

Overall Dimension Drawing:

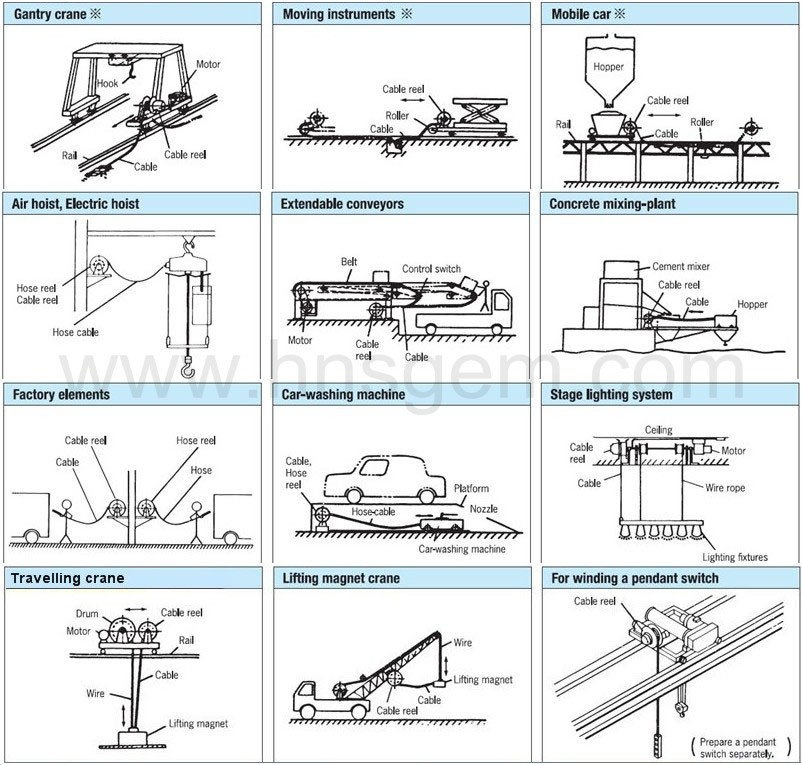

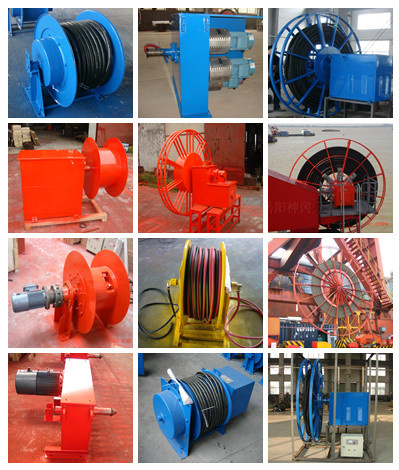

Cable Reel Series:--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
About Enquiry:
1. Do you have special requirement about the power types?
Spring type / motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?
3. What kind of mobile equipment will the cable reel be applied with?
Lifting electromagnet, all kinds of crane or others | Dimension(mm) |
| Contour items | A | B | C | D1 | D2 | d | E | F | W | Weight (kg) |
| 1 | 300 | 360 | 400 | 500 | 700 | 15 | 610 | 760 | 425 | 143 |
| 2 | 300 | 360 | 400 | 500 | 700 | 15 | 710 | 860 | 525 | 455 |
| 3 | 400 | 460 | 450 | 600 | 800 | 18 | 643 | 800 | 500 | 162 |
| 4 | 500 | 580 | 550 | 800 | 1000 | 18 | 835 | 990 | 690 | 236 |
| Technical Data |
| Cable Model | Enabled Current(A) (40 centigrade) | 40m series | Contour item | 50m series | Contour item | 100m series | Contour item |
| Core number×Cross section(mm²) | continuously | 1 min. on;1 min. Off |
| YC3×6+1×4 | 35 | 50 | JTD50-40-4 | 1 | JTD50-50-4 | 3 | | |
| YC3×10+1×6 | 50 | 65 | JTD65-40-4 | 1 | JTD65-50-4 | 3 | JTD65-100-4 | 4 |
| YC3×16+1×6 | 66 | 85 | JTD85-40-4 | 1 | JTD85-50-4 | 3 | | |
| YHD8×6 | 35 | 50 | JTD50-40-4 | 2 | | | | |
