Spring Type Cable Reel for Power Cable
| Price: |
US $ 500-850/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JTA75-15-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue/Grey |
| Power Type: |
Spring Type |
| Installation Pattern: |
Vertical Coiling |
| Current Capacity: |
75A |
| Coil Length Of Cable: |
15m |
| Phase Number/Hose Number: |
2 Phase |
| Structure Type: |
Slip Ring Built-in |
| Matched Cable Model: |
Yc2*10 Sq mm |
| Application: |
Lifting Electromagnet, All Kinds of Cranes etc. |
| Power Source For Cable Reel: |
Spring or Motor Type |
| Type: |
Module Connecting Machine |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Insulation |
Product Description
Spring Type Cable Reel for Power Cable
Introduction:
1.JT Series spring type cable reel is designed by our factory specially. It is a kind of automatic mechanical device which is driven by the spiral springs and using a spring energy storage automatic coiling cable.
2.It is suitable for all kinds of situations where the mobile cable power supply is needed, such as lifting magnet, electromotion flat car, all kinds of crane, hydraulic pressure grab bucket etc. It has the characteristics of easy power-supply, reliable operation etc.
Structures and Features:
· Using spiral springs as power without electric energy consumption to keep reliable in operation;
· Using collector slip ring carbon brush bracket to transfer the electric energy steadily and continuously;
· Equipped with reversible unit/guide wheel to avoid the reel counter-rotating to break the springs;
· Power supply easily, safety and reliability in operation.
· Ways of coiling cable: Mid-feed(with guide wheel) or End-feed.
Model Description:JTA75-15-2
"J"------Cable Reel Series
"T"------ Spring Driven Type
"A"------ Vertical Coiling
"75"------ Maximum Current(A)
"15"------Cable Length(m)
"2"------Core Number of the Cable

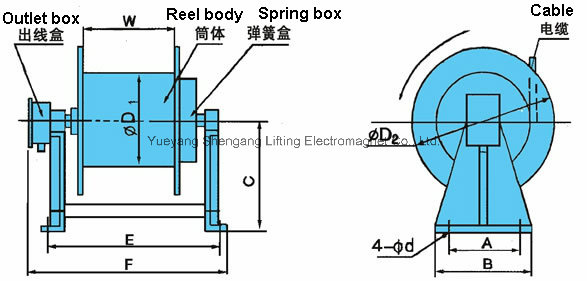

Overall Dimension Drawing:

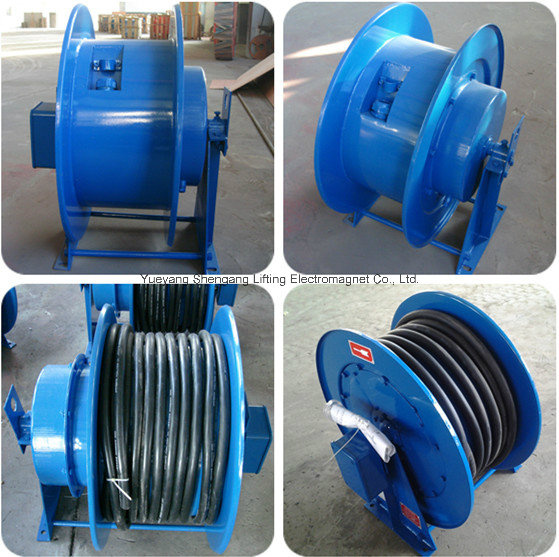

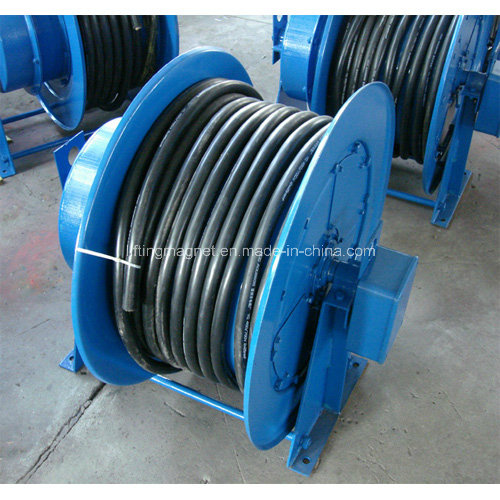

Product Pictures:

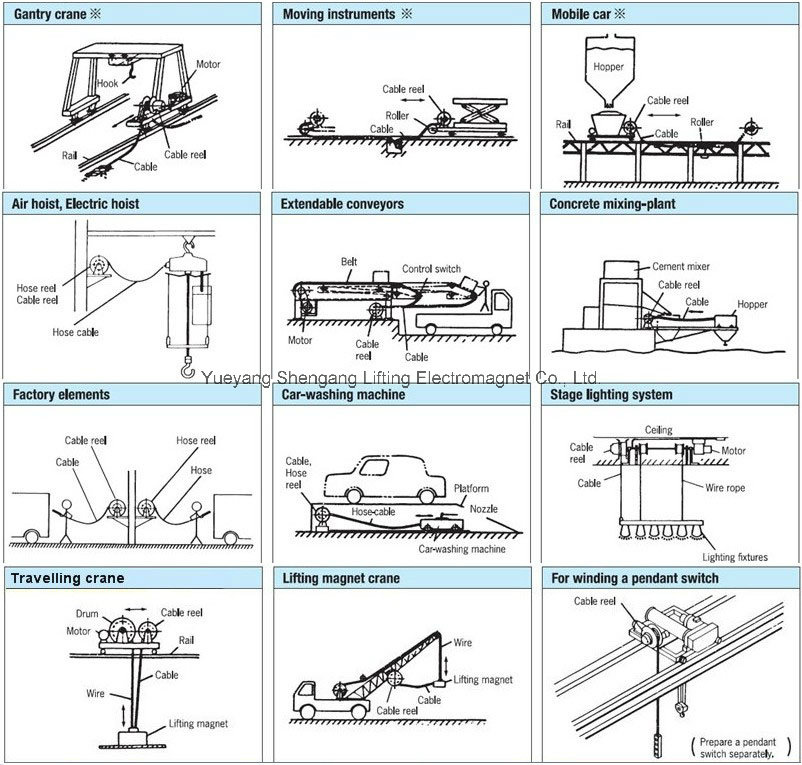

Example of available usage:
About Enquiry:
1. Do you have special requirement about the power types?
Spring type / motor powered type
2. What is the cable specification?
Cable core number × Cross section,Cable outer diameter,coil length of cable?
3. What kind of mobile equipment will the cable reel be applied with?
Lifting electromagnet, all kinds of crane, flat car or others

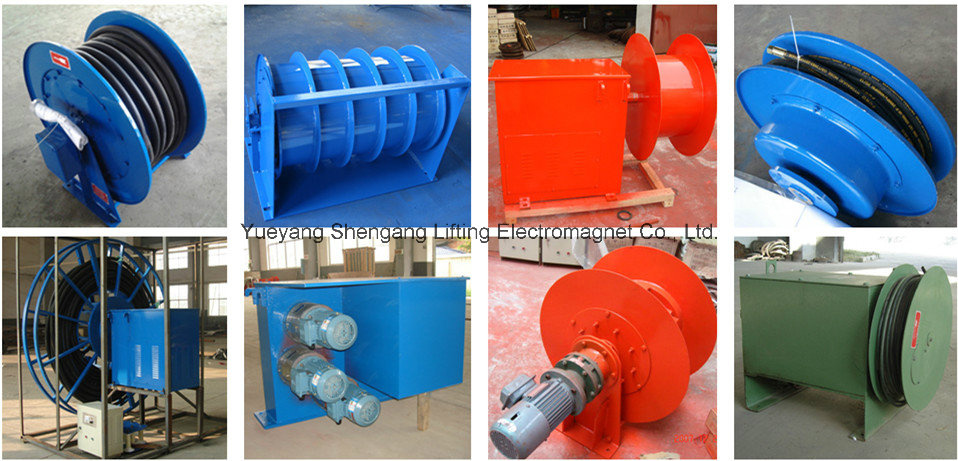

Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
Technical data: | Overall dimension table(mm) |
| Contour items | A | B | C | D1 | D2 | d | E | F | W | Mass (kg) |
|
| 10m series | 1 | 250 | 300 | 300 | 360 | 500 | 14 | 450 | 600 | 320 | 73 |
| 2 | 485 | 650 | 350 | 78 |
| 15m,20m series | 1 | 300 | 360 | 400 | 500 | 700 | 15 | 440 | 600 | 250 | 95 |
| 2 | 490 | 650 | 300 | 100 |
| 3 | 560 | 720 | 250 | 115 |
| 4 | 610 | 770 | 300 | 120 |
| 5 | 720 | 880 | 300 | 150 |
| Technical Data |
| Cable Model | Enabled Current(A)
(40 centigrade) | 15m series | Contour
item | 20m series | Contour
item | 25m series | Contour
item | 30m series | Contour
item |
Core number×
Cross section
(mm²) | continuously | 1 min. on;
1 min. Off |
| YC2×6 | 40 | 50 | | | | | JTA50-25-2 | 1 | | |
| | | | | JTB50-25-2 | | |
| YC2×10 | 58 | 75 | JTA75-15-2 | 1 | JTA75-20-2 | 1 | JTA75-25-2 | 2 | JTA75-30-2 | 6 |
| JTB75-15-2 | JTB75-20-2 | JTB75-25-2 | JTB75-30-2 |

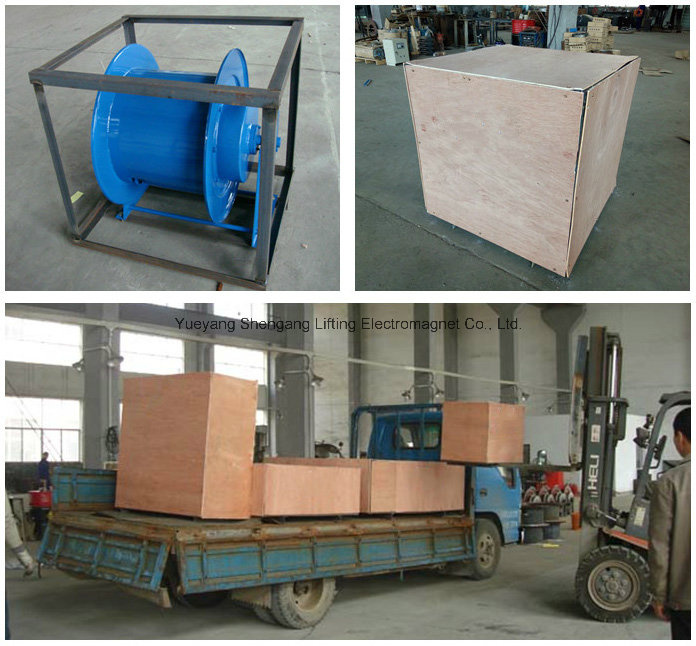

Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Convenient Transportation:
*All available shipping ways could be applied, by courier, air or sea.
*Appointed shipping company or our own forwarders all could be used in shipment.
*Full-way tracking the cargos for you till the goods arrive.
