| Prod Model: |
HX6020 |
| Design System: |
Auto-CAD, Caxa |
| Nesting Software: |
Fastcam |
| Power Supply: |
USA Hypertherm or China Huayuan |
| Control System: |
Starfire, Flmc-F2300A |
| Voltage: |
380V/220V |
Product Description

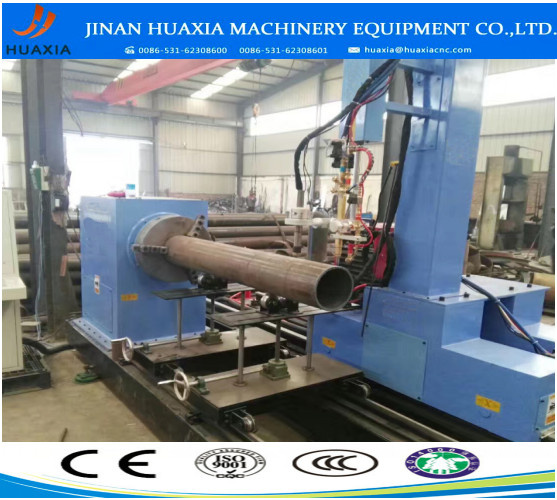

Square Pipe Plasma Cutting Machine, Circle Tube Plasma Cutter CNC plasma cutting machine can used for tube plate of carbon steel, stainless steel, copper, aluminum and other metal plane graph cut, also can be used for circular tube cut, can cut all kinds of graphics on the circular pipe.
With a high degree of automation, high precision, fast cutting speed, good cutting effect, low cost, widely used in petroleum, chemical, lighting, machinery, pressure vessels, aerospace etc. Technical parameters | 1 | Cutting graphics | All kinds of plane figure |
| 2 | Cutting speed | 0-4000mm/min |
| 3 | Round tube speed | 0-4000mm/min |
| 4 | Cutting method | Plasma /flame |
| 5 | Cutting area | X: 1500mm, Y: 2500mm/3000mm |
| 6 | Cutting thickness | Flame: 6-200mm,
Plasma: 1.5-20mm(according to the plasma power supply) |
| 7 | Thickness of circular tube | Flame: 6-80mm, plasma1-20mm
(according to the plasma power supply) |
| 8 | Max tube diameter | 0-250mm(can be customized ) |
| 9 | Cutting length | According to different machine size |
| 10 | Cutting precision | ±0.5mm |
| 11 | NC programming | Support AUTOCAD/TYPE3/CAXA/SOLIDWORKS etc. |
| 12 | File transfer | U disk |
| 13 | Power supply voltage | 220V 50HZ /plasma: 380V |
| 14 | Work environment temperature | Temperature: -10ºCto +60ºC,
Relative humidity: 0-95%No condensation |

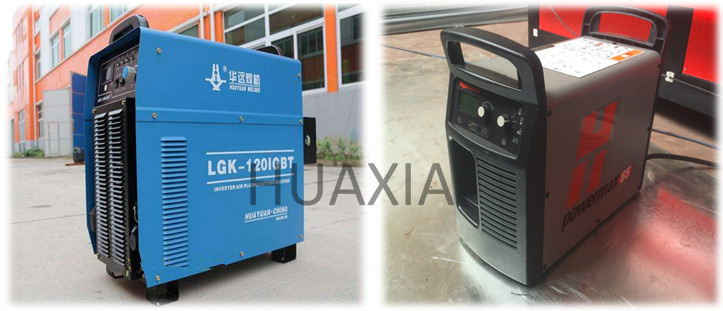

Power source

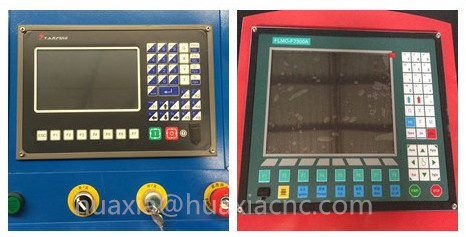

China HUAYUAN power USA Hypertherm power Control systerm
STARFIRE control system FLMC-F2300A control system

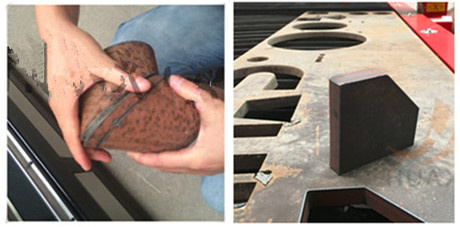

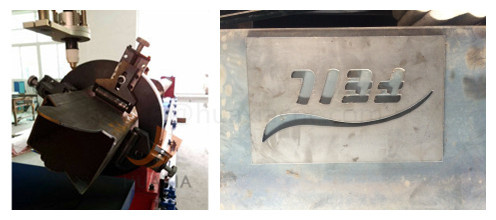

Sample
Company information:"High Quality, Good Service" is our COMPANY CULTURE!
- Welcome to come to our factory for inspection at any time.
- Whole visual machine production process
- Professional multilingual sales team
- Free Training Team at factory,to ensure that every customer operates the machine skillfully
- Professional engineer after-sales team
- 3 years guarantee period.
Company Brand: HUAXIA
Company Type: Industry and trade integrationService:Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.FAQ:1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Payment terms?
T/T,L/C,Western Union,Paypal,Alibaba Secure Payment ect.
3.How about of your shippng?With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. When receive your payment, we produce the machine, when we finished the machine, will help you book the ship, the shipping to you. Contact:Jinan Huaxia Machinery Equipment Co.,Ltd
Connect Person:Claire
Tel: (+86)0531-62308600
Mail:claire at huaxiacnc com
0086183400056306
Imo: +8618340056306
Website:http://www.huaxiacnc.com/en/Packaging Details:Packing:plywood case after packed by Wrapping filmDelivery Detail:within 15 working days after recieved the deposit
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
