SS316 Stainless Steel Wire Mesh for Building
| Price: |
US $ 200-1000/Roll |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Roll |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SSWM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Diameter: |
0.025mm-2.0mm |
| Mesh Size: |
1mesh-635mesh |
| Width: |
0.6m-6m |
| Length: |
30m,30.5m |
| Weave Style: |
Plain Weave, Twill Weave, Dutch Weave |
| Payment Term: |
T/T, L/C at Sight |
| Delivery Time: |
According to The Final Request |
| Sample: |
A4 Size Free Sample Sent on Request |
| Tensile: |
High |
| Packing: |
Paper Tube, Water-Proof Paper and Wooden Case |
| Material: |
SUS316 |
| Hole Shape: |
Square |
| Application: |
Window Curtain |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Technique: |
Woven |
| Certification: |
Ce |
| Wire Mesh Width: |
0.6m- 6m |
| Nickels: |
10%-12% |
Product Description
stainless steel wire mesh
Product Description
Hebei Maishi Wire Mesh Manufacture Group supply Stainless Wire Mesh with good quality,favorable price and best service.
Material: SS316 Stainless Steel Wire Mesh

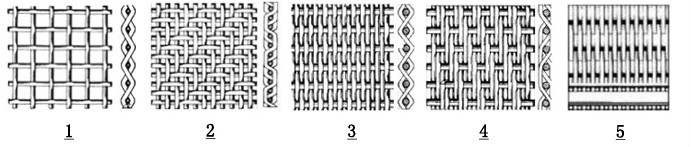

Weave Type:
Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
Plain Dutch Weave.
Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
Reverse Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Normal mesh sieze:
plain weave: 0.5X0.5mesh to 635X635 mesh;
twill weave:20x20mesh to 400x400mesh;
plain dutch weave:10X64mesh to 80X700mesh;
twill dutch weave:20x250mesh to 400X2800mesh;
reversed dutch weave: 48x10mesh to 720x150mesh.

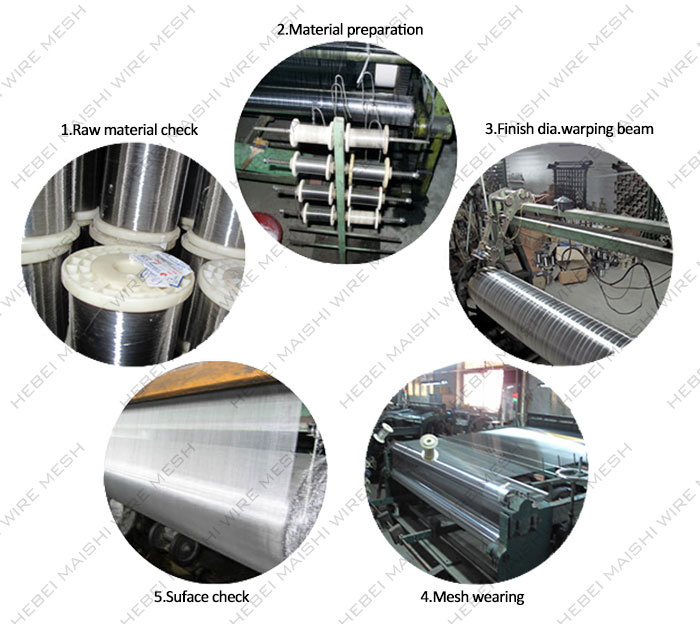

We cotrol our product quality by following 5 steps.
We believe that product quality depends its life. As a result, We have exported our products to more than 90 countries with good customer feedback.
Wire diameter: 0.025mm-1.8mm
Roll width: 0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.
Roll length: 30m or 50m,any length available at request.
Sample: Free sample sent on request.
Parameters I : Stainless Steel Printing Mesh| Mesh/Inch | Wire Diameter(mm) | Screen Thickness(mm) |
| 105 | 0.075 | 0.14 |
| 120 | 0.08 | 0.15 |
| 150 | 0.06 | 0.115 |
| 165 | 0.05 | 0.095 |
| 180 | 0.045 | 0.085 |
| 200 | 0.04 | 0.1 |
| 230 | 0.036 | 0.085 |
| 250 | 0.036 | 0.088 |
| 270 | 0.035 | 0.083 |
| 300 | 0.03 | 0.07 |
| 325 | 0.028 | 0.065 |
| 350 | 0.03 | 0.06 |
| 400 | 0.023 | 0.040 |
| 450 | 0.023 | 0.042 |
Parameters II: Plain Weave Stainless Steel Woven Wire Mesh| Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh |
| Mesh/inch | Wire diameter
(mm) | Aperture
(mm) | -- | Mesh/inch | Wire diameter
(mm) | Aperture
(mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | 500mesh | 0.025 | 0.0385 |
Technical Note:
1.Standard roll length:15.24m, 30m, 30.5m, 61m
2.Standard roll width:0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')
3.Special sizes available at request
4.Packing:In waterproof paper, PVC bag, wooden case.Custom packing available at request. |
Parameters III: Plain Dutch Weave Mesh| Mesh per Inch (Warp x Weft) | Wire Diameter (Warp x Weft) |
| 12meshx64mesh | 0.58mm X 0.40mm |
| 14meshx88mesh | 0.50mmx0.33mm |
| 24meshx110mesh | 0.355mm X 0.25mm |
| 30mesh X 150mesh | 0.23mm X 0.18mm |
| 40mesh X 200mesh | 0.18mm X 0.14mm |
| 50mesh X 250mesh | 0.14mm X 0.11mm |
| 60mesh X 300mesh | 0.14mm X 0.09mm |
| 70mesh X 400mesh | 0.12mm X 0.08mm |
