| Price: | US $ 15-50/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | WWWM |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Diameter: | 0.5mm-4.5mm |
| Mesh Opening: | 6mm-152.4mm |
| Width: | 300mm-2500mm |
| Length: | 15.24m, 24m, 30m, 50m |
| Galvanized: | Electro Galvanized and Hot Dipped Galvanized |
| Copper Finished: | Resistant to Atmospheric Corrosion, Salt Air and B |
| Hole Shape: | Square |
| Application: | Filter |
| Type: | Welded Mesh |
| Certification: | ISO9001 |
| Condition: | New |
| Material: | Stainless Steel Wire, Black Iron Wire, Galvanized |
| Mesh Size: | 6mm-152.4mm |
| Surface Treatment: | Galvanized, PVC Coated |
| Weave Technique: | Welded |
| Color: | Green, Blue, Black, White etc. |
[ About welded wire mesh ]

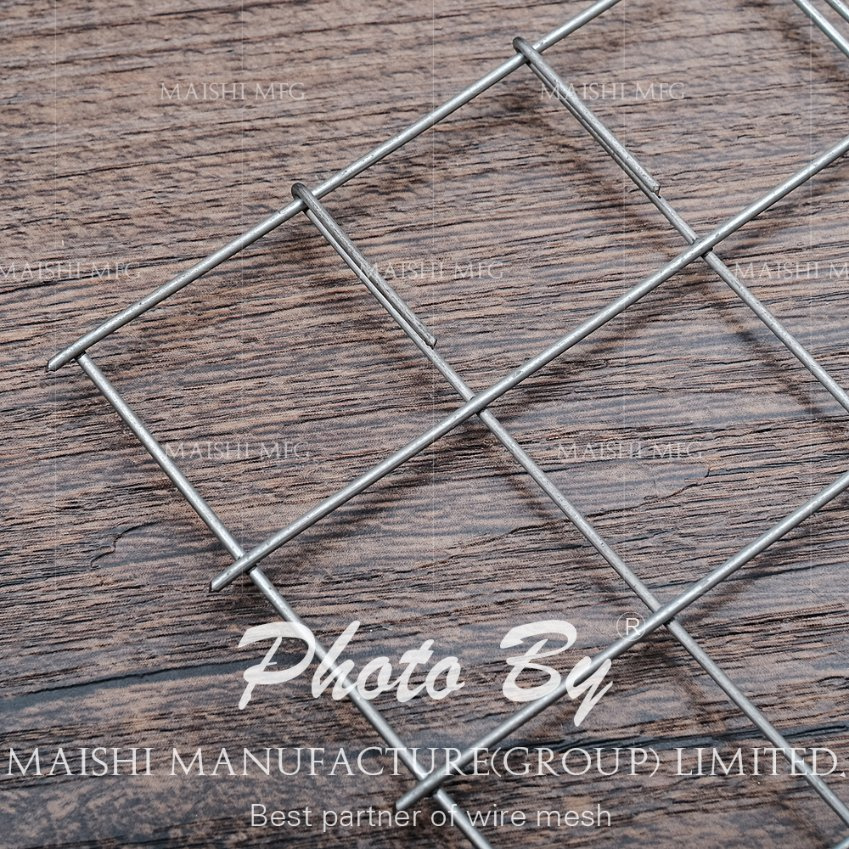

Welded wire mesh, or welded wire fabric, or "weldmesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing.
Machines are used to produce the mesh with precise dimensional control. The product can result in considerable savings in time, labour and money.
[ Common Specifications ]
Opening: From 1/4"X1/4" to 6"X6"
Wire diameter: From 0.45mm to 12mm
Width: 1m, 1.22m, 1.524m, 1.82m, 2.0m etc., custom require available at request.
Roll length: 15m, 30m, 50m etc, . Custom require available at request.

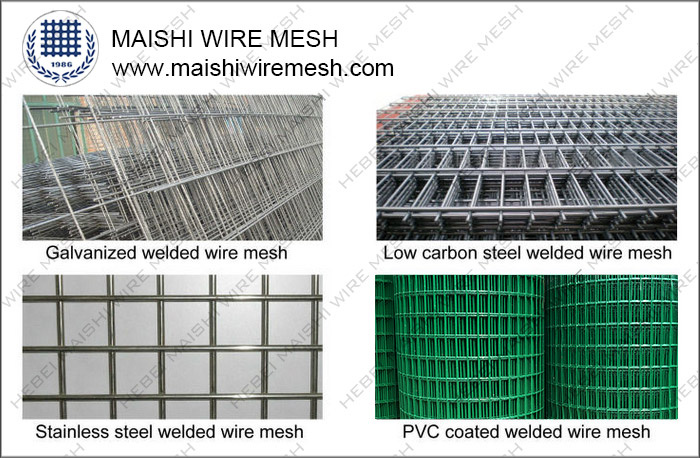

Material: Electro galvanized wire, hot-dipped galvanized, stainless steel wire
[ Welding Type ]
Electro galvanized before welding
Electro galvanized after welding
Hot-dipped galvanized before welding
Hot-dipped galvanized after welding
Iron/galvanized wire + PVC coated
* We choose the best low carbon wire or stainless steel wire material available in China, high quality & reasonable price product come from the right material.

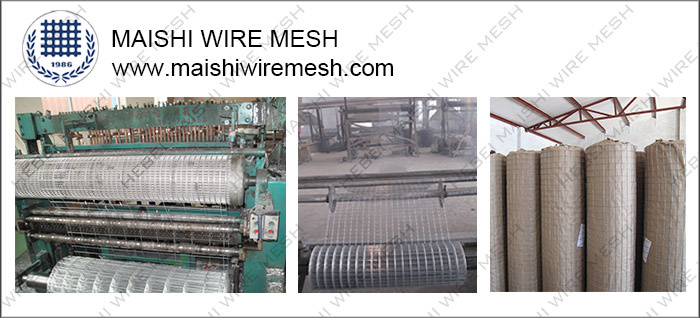

[ Production ]
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
[ Package ] In waterproof paper in rolls, custom packing available at request.
Specification List of Welded Wire Mesh | ||
Opening | Wire diameter | Width |
1/4" X 1/4" | 0.5mm-0.7mm | 300mm-1828mm |
3/4" X 3/4" | 0.7mm-2.0mm | 300mm-1828mm |
3/8" X 3/8" | 0.7mm-1.1mm | 300mm-1828mm |
5/8" X 5/8" | 0.8mm-1.2mm | 300mm-1828mm |
1/2" X 1/2" | 0.45mm-1.6 mm | 300mm-1828mm |
1" X 1" | 0.7mm-3.0mm | 300mm-2000mm |
1" X 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
1-1/2" X 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
1" X 2" | 1.6mm-2.1mm | 300mm-1828mm |
2" X 2" | 0.7mm-4.0mm | 300mm-2500mm |
2" X 3" | 1.5mm-3.5mm | 300mm-2000mm |
2" X 4" | 2.0mm-4.0mm | 300mm-1828mm |
3" X 3" | 1.0mm-4.5mm | 300mm-2500mm |
3" X 4" | 1.5mm-4.5mm | 300mm-2000mm |
4" X 4" | 1.0mm-4.5mm | 300mm-2500mm |
5" X 5" | 2.5mm-4.5mm | 300mm-2500mm |
6" X 6" | 2.5mm-4.5mm | 300mm-2500mm |
Technical Note: | ||
[ Application ] Guarding, Railings, Architectural, Ceiling Tiles, Partition Systems, Farm
6 X 6mm hole - Mouse protection
13 X 13mm hole - Fruit cages, bird protection, engineering uses
13 X 25mm hole - Bird protection, enclosures for small animals
20 X 20mm hole - Rat and squirrel protection
25 X 25mm hole - Fox protection, cat and dog enclosures
50 X 50mm hole - Fox protection, dog enclosures
[ Payment Term ]
T/T(30%T/T paid in advance and 70% paid against of BL copy), irrevocable L/C at sight, can be negotiable.
Sample: Free sample sent on request.
[ Stock & Loading ] We have enough stock for normal sizes in case of the urgent orders.
[ Guarantee ]
1. Shortest delivery time as we have 200-500rolls for stocks(normal size).
2. We guarantee our customers will get right material and sizes, enough weight, on time delivery at our best service and price
3. The goods can be returned or compensated if the quality is not ok
4. There is no "cheat" and "misunderstanding" in Maishi
To serve you best we appreciate getting the following information:
1. Material: Electro galvanized, hot dipped galvanized before or after welding, if PVC coated. Please inform inner wire material.
2. Opening size
3. Wire diameter (if PVC coated, please inform before and after coated wire diameter)
4. Roll or pallets, sizes
5. Quantity
Welcome to send us inquiry with detailed specification, MAISHI is always here.
