Top Quality Ss Wire Mesh

Hebei Maishi Wire Mesh Manufacture Group supply Stainless Wire Mesh with good quality,favorable price and best service.

Material: NO MAGNET NO NICKEL, AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc.

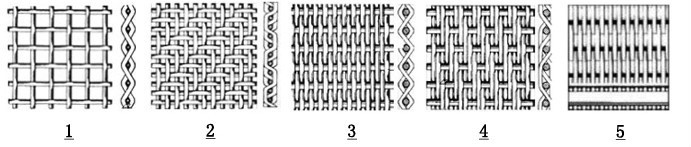

Weave Type:

Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Plain Dutch Weave.

Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
Reverse Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

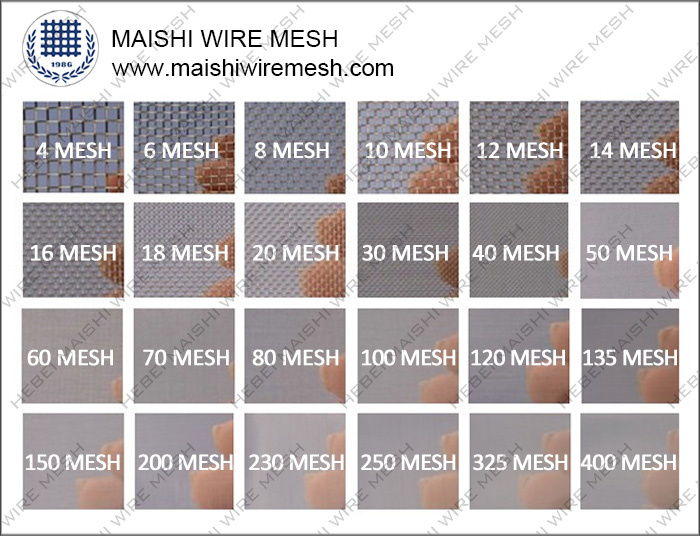

Normal mesh sieze:

plain weave: 0.5X0.5mesh to 635X635 mesh;

twill weave:20x20mesh to 400x400mesh;

plain dutch weave:10X64mesh to 80X700mesh;

twill dutch weave:20x250mesh to 400X2800mesh;

reversed dutch weave: 48x10mesh to 720x150mesh.
