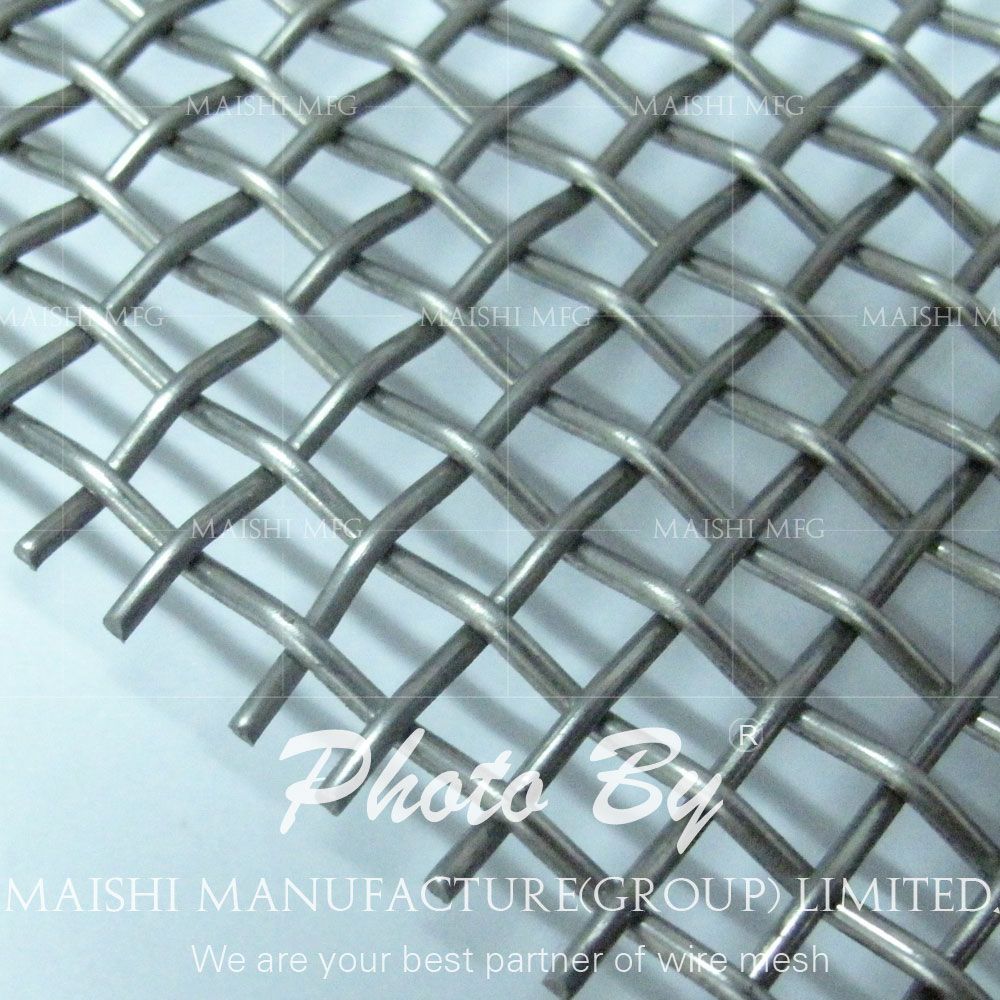

T-316 Stainless Steel Wire Mesh

Prod Model:	SS
Materials:	SUS316
Mesh Size:	1mesh-635mesh
Wire Diameter:	0.025mm-2.0mm
Width:	0.6m- 6m
Length:	30m, 30.48m
Weaving Type:	Plain Weave, Twill Weave, Ducth Weave etc.
Packing Terms:	Warter Proof Paper Packed and Then in Wooden Case
MOQ:	1rolls
Place Of Origin:	China
Material:	SUS316
Hole Shape:	Square
Application:	Barbecue Wire Mesh
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Weave
Technique:	Woven
Nickels:	12%
Certification:	ISO9001
Wire Mesh Width:	0.6m- 6m

Product Description

T-316 Stainless Steel Wire Mesh

Material: 316 stainless steel wire
Wire diameter: 0.025mm-2.0mm
Weaving method: Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave

 Weave type:
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.


Full mesh specifications view:


Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	-	mesh/inch	wire diameter(mm)	aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.25	0.0385



Stainless Steel Woven Wire Mesh(Twill Weave)
mesh	wire diameter(mm)	aperture(mm)	material (AISI)
250mesh	wire dia.0.040mm	0.063	304 or 316
300mesh	wire dia.0.040mm	0.044	304 or 316
325mesh	wire dia.0.035mm	0.043	304 or 316
350mesh	wire dia.0.030mm	0.042	304 or 316
400mesh	wire dia.0.030mm	0.033	304 or 316



Stainless Steel Woven Wire Mesh(Dutch Weave)
Mesh	Wire Dia. (MM)	Material(AISI)
12meshX64mesh	0.58/0.40	304 or 316
24meshX110mesh	0.36/0.25	304 or 316
14meshX88mesh	0.50/0.33	304 or 316
30meshX150mesh	0.18/0.14	304 or 316
40meshX200mesh	0.14/0.11	304 or 316
50meshX250mesh	0.10/0.071	304 or 316
80meshX700mesh	0.06/0.05	304 or 316
165meshX800mesh	0.071/0.040	304 or 316
165meshX1400mesh	0.05/0.032	304 or 316
200meshX1800mesh	0.05/0.03	304 or 316
325meshX2300mesh	0.030/0.025	316L
400meshX2800mesh	0.030/0.02	316L
Technical Note: 1, Standard roll length: 30m,30.5m 2, Special sizes available at request 3, Packing: in waterproof paper, PVC bag, wooden case. Custom packing available at request.

Characteristics: Wear-resisting, Heat-resisting, Acid-resisting, Corrosion resisting


[ Width ]: 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.

[ Roll Length ]: 30m, 30.48m or as per your request

HEBEI MAISHI dostrictly tested before the goods dispatched from our factory to ensure their quality. Make sure customers get perfect quality.

304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.

316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.

Factory show
Hebei Maishi Stainless Steel Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of stainless steel wire mesh. Our company was connected with production of metal wire mesh since 1986 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1995, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D)  and apparatus used in production process fully based on the high computer technology.
26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
Dedicated and experienced weavers.
Consistent quality products.
On-time delivery.
We have 15 R&D technical staffs,with more than 10 years experience.
80% repeat customers.
Reasonable claim refund system.

Usage: Extensively used in mining, chemical industry, food industry and pharmaceutical industry
Packaging: In waterproof paper, pvc bag, moist proof paper,wooden case, pallet.
Delivery time: It is according to customers' order quantity. Some mesh size always have stocks about 5-10rolls
Payment: T/T
