| Prod Model: |
HDC drill |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bit Diameter: |
76mm |
| Automation: |
Automatic |
| Layout: |
Horizontal |
| Control: |
Artificial |
| Precision: |
High Precision |
| Application: |
Stone Industry |
| Certification: |
CE |
Product Description
Company introduction:
Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine maufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product performance have been widely proven in the world, and they are exported to Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.

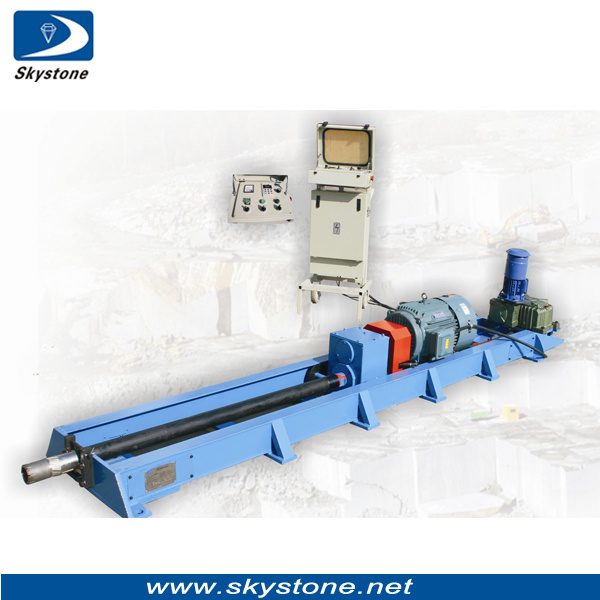

The TSY-HDC80 Drill which controlled jointly by electric, is a new model drill we developed specially used for stone quarry, and especially suitable for the mine that lack of compressed air.
The characters of the drill
1. Light weight, easy installation and transportation
2. The high quality pneumatic components ensure lower energy & air consumption and high efficiency
3. The good hoisting ability
4. The particular mechanical tube devices for screwing and discharging to reduce the labor intensity;
5. The Particular design for guiding drilling.
The total weight of machine is 1050kg( including 15 drill rods and 1 bit, 1 down the hole hammer ).
Specification:
| Item No. | TSY-HDC80 |
| Bit diameter | 76mm |
| Minimum distance between Drilling center and ground | 124mm |
| Main motor power | 15kw |
| Rod specification | 73*1500mm |
| The min pressure of cooling water | 0.1mpa |
| Single drilling distance | 1.5m |
| Drilling speed | 2-8m/h |
Mainly used in stone quarries to introduce the diamond wire, with features of high working efficiency, long drilling life, easy to converge the hotizontal and vertical wire holes, and low cost etc.
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
