Xdl Stroke Adjustable C Frame Single Crank Power Press Machine (25ton~260ton)
| Price: |
US $ 13000-90000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XDL (25ton-260ton) |
| Precision Standard: |
GB(Japan 1 Class) |
| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |
| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description

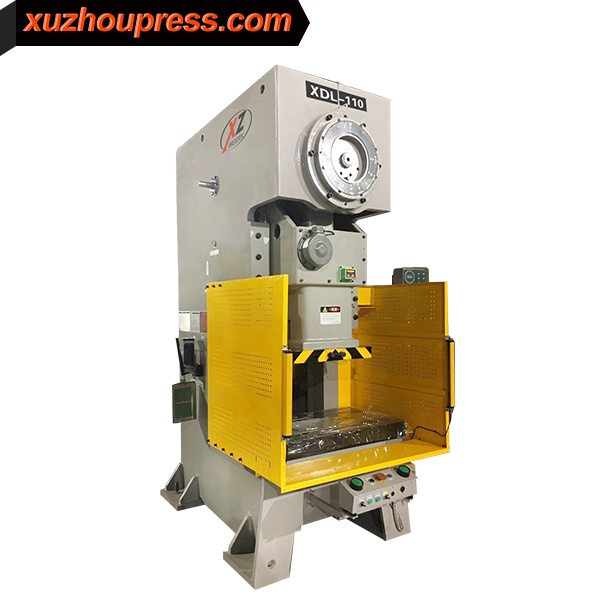

Adjustable C Frame Single Crank Power Press Machine
(25ton~260ton )
Manufacturing Precision Standards : ISO/CE/Japanese JIS 1 Class
1. Parameters
1) 25ton ~60ton Parameters
| Name | Unit | XDL-25 | XDL-35 | XDL-45 | XDL-60 |
| Capacity | Ton | 25 | 35 | 45 | 60 |
| Rated tonnage point | mm | 3.2 | 3.2 | 3.2 | 4 |
| Speed changing | s.p.m | 60-140 | 40-120 | 40-100 | 35-90 |
| Stable speed | s.p.m | 110 | 85 | 75 | 65 |
| Stroke | mm | 12-60 | 15-70 | 20-80 | 20-100 |
| Die height | mm | 200 | 220 | 250 | 310 |
| Slide adjustment | mm | 50 | 55 | 60 | 75 |
| Slide area | mm | 300x230x50 | 360x250x50 | 400x300x60 | 500x360x70 |
| Bolster area | mm | 680x300x70 | 800x400x70 | 850x440x80 | 900x500x80 |
| Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ50 |
| Main motor | kw.p | V3.7x4 | VS 3.7x4 | VS 5.5x4 | VS 5.5x4 |
| Slide adjust device | HP | Manual operation |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class |
| Presses dimension | mm | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | 1595x1000x2800 |
| Presses weight | Tons | 2.1 | 3 | 3.8 | 5.6 |
| Die cushion capacity | Ton | - | 2.3 | 2.3 | 3.6 |
| Stroke | mm | - | 50 | 50 | 70 |
| Die cushion effective area | mm2 | - | 300x230 | 300x230 | 350x300 |
2) 80ton ~260ton Parameters
| Name | Unit | XDL-80 | XDL-110 | XDL-160 | XDL-200 | XPA-260 |
| Capacity | Ton | 80 | 110 | 160 | 200 | 260 |
| Rated tonnage point | mm | 4 | 6 | 6 | 6 | 7 |
| Speed changing | s.p.m | 35-80 | 30-60 | 20-50 | 20-50 | 20-40 |
| Stable speed | s.p.m | 65 | 50 | 35 | 35 | 30 |
| Stroke | mm | 25-120 | 25-160 | 30-180 | 30-180 | 40-200 |
| Die height | mm | 340 | 370 | 470 | 470 | 520 |
| Slide adjustment | mm | 80 | 80 | 100 | 110 | 120 |
| Slide area | mm | 560x420x70 | 650x470x80 | 700x550x90 | 850x630x90 | 950x700x100 |
| Bolster area | mm | 1000x550x90 | 1150x600x110 | 1250x800x140 | 1400x820x160 | 1500x840x180 |
| Shank hole | mm | Φ50 | Φ50 | Φ65 | Φ65 | Φ65 |
| Main motor | kw.p | VS7.5x4 | VS 11x4 | VS 15x4 | VS18x4 | VS 22x4 |
| Slide adjust device | HP | Electrial driving |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class |
| Presses dimension | mm | 1800x1180x2980 | 1900x1300x3200 | 2315x1400x3670 | 2615x1690x4075 | 2780x1850x4470 |
| Presses weight | Tons | 6.5 | 9.6 | 16 | 23 | 32 |
| Die cushion capacity | Ton | 3.6 | 6.3 | 10 | 14 | 14 |
| Stroke | mm | 70 | 80 | 80 | 100 | 100 |
| Die cushion effective area | mm2 | 450x310 | 500x350 | 650x420 | 710x480 | 810x480 |
2.Technical Description :
Product Features :
* The precision of adjusting up to 0.1mm,safety,reliable and convenient.
* Crank,gear,connec bar are oxidized hardening and milled,having super comprehensive mechanical performance and durable function.
* Used reliable high clutch/break and international up-to-date twin electomagnetic valve,overloading protector can guarantee the precision of slider running and stop and safe production of the machine.
* Reasonable structural design, is benefit for automation prodution and reduce cost, improve effciency.
* Advanced design principle, low noise, low consumption, low cost, save energy.
* With high rigidity design in machine frame, the machine body is welded of quality steel sheet and treated by tension elimination, improve atability and reliability of precision of the machine.
* Keep the transmission center and machine center in uniformity, guarantee the precision of pressing.
* In order to guarantee the machine running in stable and smooth, adopts the design of symmetrical boards with balancer.
* Six-speed adjustable ram stroke,suitable for a variety of different molds die height use.
Standard configuration:
* Inverter
* Hydraulic over-load protector
* Slide adjuster (60Tons and below)
* Slide adjust device (80Tons and above)
* Die height indicator (60Tons and below)
* Die height indicator (60Tons and above)
* Balance device
* Rotary cam switch
* Misfeed detection consent
* Power supply
* Crank angle indicator
* Electrical stroke counter
* Air source connector
* Against over-run safety device
* Air ejector
* Maintenance tool box
* Operation manual
Optional configuration:
* High performance wet clutch & brake
* Electrical automatic lubrication system
* Pneumatic die cushion device
* Foot switch
* Quick die change device (die lifter, clamp and die arm sepjes)
* Slide knock-out device
* Anti-vibration press mount
* Photo-electronic safety device
* Feeder
* Uncoiler
* Leveler
* Mechanism hand
* Die room light
* Touch pad (preset total counter)
* PAC 100 counter system
* Human-computer control system
