Xpf Series Single-Crank H Type High Precision Power Press (110ton-600ton)

Name: Xpf Series Single-Crank H Type High Precision Power Press (110ton-600ton)
Brand: tool-buy.com
SKU: 826722755
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	US $ 40000-180000set
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Xuzhou Metalforming Precision Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	XPF
Precision Standard:	GB(Japan 1 Class)
Frequency Inverter:	Taiwan Delta / Japan Yaskawa
Hydraulic Over-Load Protector:	Japan Showa/ Taiwan King Air
Dry Clutch:	Italian Ompi
Main Motors:	Taiwan Teco
Double Solenoid Valve:	Japan's Taco
Oil Lubricator/Filter:	German Rexroth/Japan SMC
Bearings:	Japan NTN/NSK
PLC:	Japan Omron
Welded Steel Structure:	Elimination of Internal Stress Process, CNC Precis
Controlling Mode:	CNC
Power Source:	Mechanical Drive
Precision:	High Precision
Type:	High Precision Power Press
Automatic Grade:	PLC Control ,Human-Machine Interface

Product Description

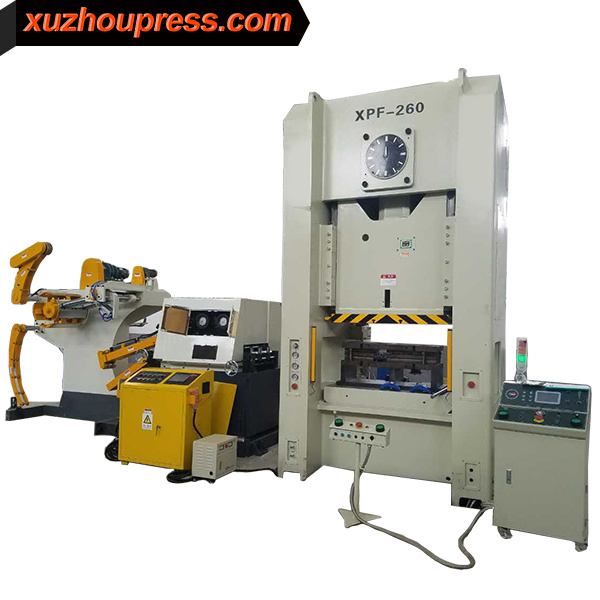

XPF Series Single-crank H Type High Precision Power Press (110ton-600ton)
Manufacturing Precision Standards : Japanese JIS 1 Class

Video Link:

https://www.youtube.com/watch?v=4h4MdXWJO2I
https://www.youtube.com/watch?v=fhcScBOd4EE
https://www.youtube.com/watch?v=763I3r4TVtY

1. Parameters

1.1 110ton-260ton

Name	Unit	XPF-110		XPF-160		XPF-200		XPF-260
Model		V	H	V	H	V	H	V	H
Capacity	ton	110		160		200		260
Rated tonnage point	mm	6	3	6	3	6	3	7	3.5
Stroke	mm	180	80	200	90	200	100	250	150
Speed changing	s.p.m	30~60	60~90	20~50	40~70	20~50	50~70	20~40	40~50
Stable speed	s.p.m	50		35		35		30
Die height	mm	360	410	460	510	460	510	500	550
Slide adjustment	mm	80		100		110		120
Slide area	mm	1000x550x70		1100x600x90		1200x650x90		1300x700x100
Bolster area	mm	1100x600x110		1200x800x140		1300x820x160		1400x840x180
Side opening	mm	700x500		800x600		800x600		800x600
Main moter	kw x p	11x4		15x4		18x4		22x4
Slide adjusting moter	kw x p	0.4x4		0.75x4		0.75x4		1.5x4
Air pressure	kg/cm²	6	6	6	6	6	6	6	6
Presses Precision		GB/T23280-2009 [JIS1]

1.2 300ton-600ton

Name	Unit	XPF-300		XPF-400		XPF-500	XPF-600
Model		V	H	V	H	V	V
Capacity	ton	300		400		500	600
Rated tonnage point	mm	7	3.5	9	4.5	10	13
Stroke	mm	300	170	300	200	250	250
Speed changing	s.p.m	20~40	35~50	15~25	20~35	20~30	15~20
Stable speed	s.p.m	30		20		20	20
Die height	mm	550	615	550	600	550	550
Slide adjustment	mm	120		120		120	120
Slide area	mm	1400x800x110		1500x850x110		1400x800	1500x1200
Bolster area	mm	1500x950x200		1600x1000x200		1500x1000	1700x1300
Side opening	mm	900x600		1000x750		1000x800	1000x900
Main moter	kw x p	30x4		40x4		55x4	75x4
Slide adjusting moter	kw x p	1.5x4		2.2x4		3x4	3x4
Air pressure	kg/cm²	6	6	6	6	6	6
Presses Precision		GB/T23280-2009 [JIS1]

2. Technical Descriptions :

Product Features:
* Mix European, American, and Japanese advanced technologies, adopt functional structure CAE dynamic simulation optimization design.
* High-rigidity lathe bed with high-quality steel profiling welding or cast-in-block casting part tempering process or vibration stress processing.
* High-standard fabrication processing of hard chrome plating/nitriding/grinding for key parts such as gears and bent axles ,and etc.
* Adopt high-level configurations such as high-performance controllers/drive parts/electromagnetic * clutches/steam-driven elements and bearings
* International Technical grade of stamping equipment and inspection of machine index.
* High-response multi-functional superposition expansion/high-quality industrial control processor
* High-memory module/individual design franchised software compilation
* High-compatibility multi-axial variable speed drive/automation equipment onboard expansion
* High-intelligent human-computer interface/high-frequency real-time control/Ethernet & USB interface

Standard Configuration:
* Hydraulic overload protector
* Electric slider adjusting device
* Digital moulding-height indicator (unit: 0.1 mm)
* Slider and mould balancing device
* Rotary cam switch
* Crank angle indicator
* Circulation centralization lubrication oil feeding device
* Electromagnetic stroke counter
* Over-run safety device
* Programmable controller
* Moveable T-type operating platform
* Air source connector
* Independent electric control cabinet
* Maintenance tool and tool box

Optional Configuration:
* Die cushion
* Upper slider knock out device
* Die Light
* Main motor inversion device
* Photo-electric safety device
* Safety groove and safety pin
* Pre-set counter (6 digits)
* Loading inspection device
* Misfeed detection device
* Frequency converter
* Basic bolt and soleplate
* Anti-vibration foot
* Safety shelf and safety ladder
* Power socket
* Quick die change device

3. Company Introduction :

Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.

* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.

* Factory Area 200, 000.00 square meters.

* Staff of about 400 people

Main Products:

*Mechanical Press

* Coil Feeder

* Hydraulic Press

*Forging Hydraulic Press

* Special Purpose Customized Power Press.

Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.

Technology advantages:

* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.

* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China

Manufacturing Strength:

*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.

*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.

Marketing:

* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.

*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
