Xpd Straight Side High Precision Single Crank Steel Frame Power Press (80ton-315ton)
| Price: |
US $ 13000-90000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XPD |
| Precision Standard: |
GB(Japan 1 Class) |

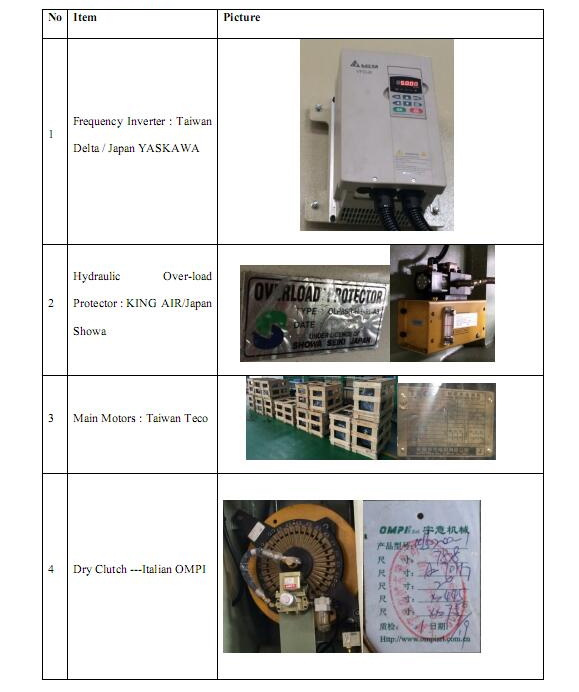

| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |
| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description

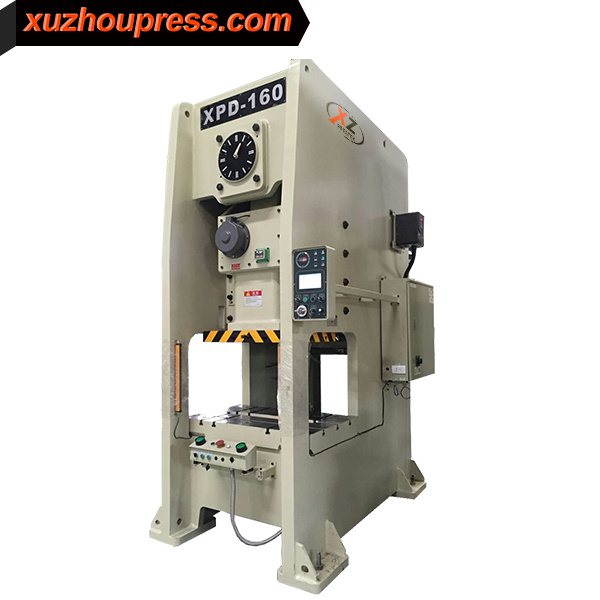

XPD Series Semi Closed Single-crank High Precision Power Press (80ton~315ton )
Manufacturing Standards : ISO/ CE/ Japanese JIS 1 Class
Video Link:
https://www.youtube.com/watch?v=WfnoEEqnv5I
* Provide Customized Personalized Service
1.1 80ton-160ton
| Name | Unit | XPD-80 | XPD-110 | XPD-160 |
| Model | | V | H | V | H | V | H |
| Capacity | Ton | 80 | 110 | 160 |
| Rated tonnage point | mm | 4 | 2 | 6 | 3 | 6 | 3 |
| Stroke | mm | 150 | 70 | 180 | 80 | 200 | 90 |
| Die height | mm | 340 | 380 | 360 | 410 | 460 | 510 |
| Stroke per minute | s.p.m | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 |
| Slide adjustment | mm | 80 | 80 | 100 |
| Slide area | mm | 560x420x70 | 650x470x80 | 700x550x90 |
| Bolster area | mm | 760x550x90 | 900x600x110 | 980x880x140 |
| Main motor | kwxp | 7.5x4 | 11x4 | 15x4 |
| Slide adjust device | HP | Electrical driving |
| Air pressure | kg/cm2 | 6 | 6 | 6 |
| Presses dimension | mm | 1300x1890x3000 | 1420x1985x3200 | 1600x2200x3500 |
| Presses weight | Ton | 7.8 | 10.5 | 17.8 |
| Presses precision | | GB(JIS)1 class |
| Die cushion capacity | Ton | 3.6 | 6.3 | 10 |
| Stroke | mm | 70 | 80 | 80 |
| Die cushion effective area | mm2 | 450x310 | 500x350 | 650x420 |
1.2 200ton-315ton
| Name | Unit | XPD-200 | XPD-260 | XPD-315 |
| Model | | V | H | V | H | V | H |
| Capacity | Ton | 200 | 260 | 315 |
| Rated tonnage point | mm | 6 | 3 | 7 | 3.5 | 7 | 3.5 |
| Stroke | mm | 200 | 100 | 250 | 150 | 280 | 170 |
| Die height | mm | 460 | 510 | 500 | 550 | 550 | 600 |
| Stroke per minute | s.p.m | 20-50 | 50-70 | 20-40 | 40-50 | 20-35 | 30-50 |
| Slide adjustment | mm | 110 | 120 | 120 |
| Slide area | mm | 850x630x90 | 950x700x100 | 1000x750x110 |
| Bolster area | mm | 1140x820x160 | 1500x840x180 | 1600x900x200 |
| Main motor | kwxp | 18x4 | 22x4 | 30x4 |
| Slide adjust device | HP | Electrical driving |
| Air pressure | kg/cm2 | 6 | 6 | 6 |
| Presses dimension | mm | 1750x2500x3900 | 2080x2895x4470 | 2100x2925x4550 |
| Presses weight | Ton | 25.3 | 37 | 42 |
| Presses precision | | GB(JIS)7 class |
| Die cushion capacity | Ton | 14 | 14 | 14 |
| Stroke | mm | 100 | 100 | 100 |
| Die cushion effective area | mm2 | 710x480 | 810x480 | 810x480 |
2. Technical Descriptions :Product Features:
* With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.
* Consistent driving center and machine center to guarantee accurate and stable punching.
* In order to guarantee relative stationarity of machine operation, it is equipped with two balancers.
* Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.
* Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.
* Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.
* Machine's structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.
* Possess advanced design concepts, low noise, low consumption, and energy saving.
Standard Configuration:
* Inverter
* Hydraulic overload protector
* Electric slider adjusting device
* Electric moulding-height indicator
* Slider and mould balancing device
* Misfeed detection consent
* Power socket
* Rotary cam switch
* Crank angle indicator
* Counter
* Air source connector
* Over-run safety device
* Maintenance tool and tool box
* Operating manual
Optional Configuration:
* Auto grease pump device
* Air die cushion device
* Preset counter
* Preset counter
* Foot switch
* Quick die change device (Die lifter, die clamper, or mould-shift arm)
* Knock out device on the slider
* Anti-vibration foot
* Photo-electric safety device
* Feeder (air, machinery, NC,and servo )
* Feeding rack
* Leveller
* Manipulator (Bar Feeder )
* Die Room Light
* Left (right) feeding device
* Man-machine control system
Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200, 000.00 square meters.
* Staff of about 400 people
Main Products:
*Mechanical Press
* Coil Feeder
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.
Technology advantages:
* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing:
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
