XPE Series Double-Crank Straight Side Precision Power Press (160ton~600ton)
| Price: |
US $ 60000-266000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XPE(160ton-600ton) |
| Precision Standard: |
GB(Japan 1 Class) |
| Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
| Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
| Dry Clutch: |
Italian Ompi |
| Main Motors: |
Taiwan Teco |
| Double Solenoid Valve: |
Japan's Taco |
| Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
| Bearings: |
Japan NTN/NSK |
| PLC: |
Japan Omron |
| Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
| Controlling Mode: |
CNC |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
| Type: |
High Precision Power Press |
| Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description

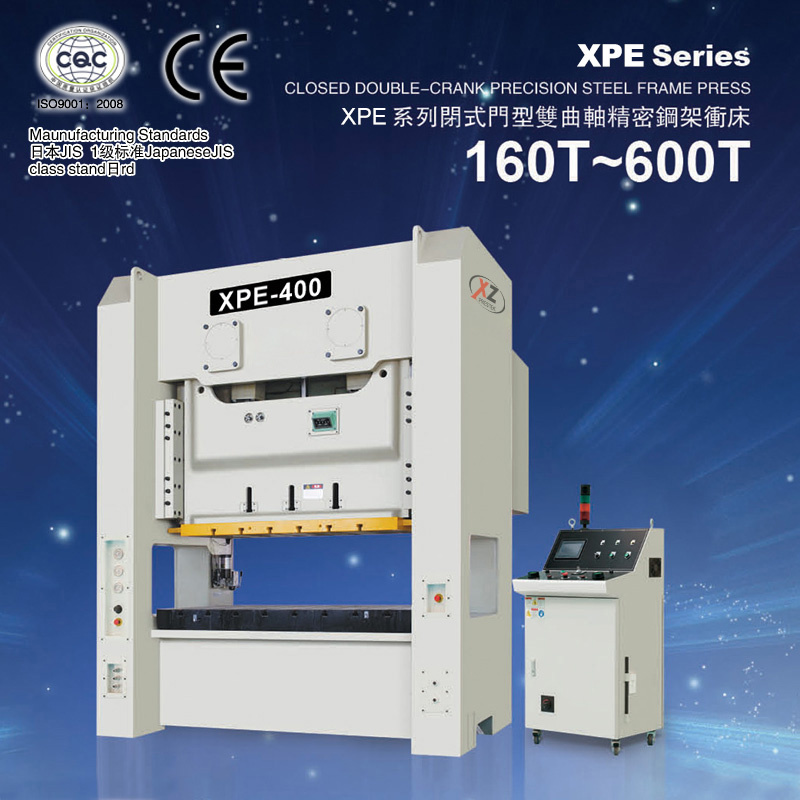

XPE Series Double-crank Straight Side Precision Power Press (160ton~600ton )
Manufacturing Standards : ISO /CE Japanese JIS 1 Class
Video Link:
https://www.youtube.com/watch?v=qCpx1fwfmac
https://www.youtube.com/watch?v=ctBiJ5Eg4wQ
https://www.youtube.com/watch?v=ycV-8uaP9mE
https://www.youtube.com/watch?v=IqBnZOjd2mQ
1. Technical Parameters* Provide Customized Personalized Servic
| Name | Unit | XPE-160 | XPE-200 | XPE-250 |
| Model | | S | H | S | H | S | H |
| Capacity | Ton | 160 | 200 | 250 |
| Rated tonnage point | mm | 6 | 3 | 6 | 3 | 7 | 3 |
| Stroke | mm | 180 | 130 | 250 | 150 | 280 | 170 |
| Stroke per minute | s.p.m | 30-55 | 40-85 | 20-50 | 35-70 | 20-40 | 30-60 |
| Die height | mm | 450 | 400 | 500 | 450 | 550 | 450 |
| Slide adjustment | mm | 100 | 120 | 120 |
| Slide area | mm | 1600x650 | 1850 x750 | 2300x900 |
| Bolster area | mm | 1800 x760 | 2200x940 | 2500 x1000 |
| Side opening | mm | 700 x450 | 900x600 | 900x600 |
| Main motor | KwxP | 15x4 | 18.5x4 | 22 x 4 |
| Slide adjust device | KwxP | 1x4 | 2x4 | 2x4 |
| Air pressure | kg/cm2 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1 class | GB(JIS)1class | GB(JIS)1 class |
1.2 400ton-600ton | Name | Unit | XPE-300 | XPE-400 | XPE-500 | XPE-600 |
| Model | | S | H | S | H | S | H | S | H |
| Capacity | Ton | 300 | 400 | 500 | 600 |
| Rated tonnage point | mm | 7 | 3 | 7 | 3 | 10 | 6 | 10 | 6 |
| Stroke | mm | 300 | 170 | 300 | 170 | 300 | 180 | 300 | 180 |
| Stroke per minute | s.p.m | 20-35 | 30-50 | 20-30 | 20-40 | 18-25 | 20-30 | 15-25 | 20-30 |
| Die height | mm | 550 | 450 | 550 | 450 | 580 | 480 | 600 | 500 |
| Slide adjustment | mm | 120 | 120 | 120 | 120 |
| Slide area | mm | 2300x900 | A:2300x1000 | 2900x1000 | 3100x1100 |
| B:2400x1000 |
| C:2800x1000 |
| Bolster area | mm | 2500x1000 | A:2500x1000 | 3300x1200 | 3500x1200 |
| B:2800x1000 |
| C:3200x1000 |
| Side opening | mm | 900x600 | 900x600 | 1000x750 | 1100x750 |
| Main motor | KwxP | 30x4 | 37x4 | 45x4 | 55x4 |
| Slide adjust device | KwxP | 2x4 | 2x4 | 3x4 | 3x4 |
| Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
| Presses precision | | GB(JIS)1class | GB(JIS)1 class | GB(JIS)1class | GB(JIS)1 class |
2. Technical Descriptions : Product Features:
*With high rigidity rack design, they are welded with the use of high-quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.
*Machine adopts high-alloy-steel, two-bent-axle, and two-wide work center, to optimize design.
*In order to guarantee relative stationarity of machine operation, it is equip with two balancers.
*Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.
*Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.
*Adopt highly sensitive and reliable clutch/brake and internationally advanced duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.
*Machine's structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.
*Possess advanced design concepts, low noise, low consumption, and energy saving.
Standard Configuration:
* Dry clutch brake
* Standard operating system of xieduan
* Operation Method Choice/inch stroke /safe journey/continuation of operating mode
* Oil pressure overload protection device
* Over-run safety device
* Duplex magnetic valve
* Misfeed detection device
* Electric slider adjusting device
* Digital moulding-height indicator (unit: 0.1 mm)
* Electric butter lubricating device
* Accumulative counter (6 digits)
* Pre-determined counter (6 digits)
* Maintenance counter (6 digits)
* Service Life counter (6 digits)
* Electronic rotary cam switch (6 connections)
* Air-blast device 1/2" primary circuit
* Air source connector 1/2" secondary circuit
* Error inspection socket
* Power socket (only apply to single-phase 110V power)
Optional Configuration:
* Wet clutch brake
* Die cushion device
* Vs variable-speed motor
* Touch-screen device
* Photo-electric safety device
* Knock-out device on Ram
* Main motor inversion device
* Foot switch
* Safety dog and safety latch
* T-type two-hand button operating platform
* Inspection variable-connection magnetic valve
* Anti-vibration mechanical foot
* Quick Die Change Device
* Upper die clamper
* Lower die clamper
* Die lifter
* Mould-shift arm
* Basic bolt and soleplate
* Automatic feeder device
* Three-in-one NC straightening feeder
* NC Servo Roll feeder
* Two-in-one feeder and straightening machine
* Leveller
Xuzhou Metalfoming Precision Machinery Co., Ltd is a large-scale professional power press R&D and manufacturing enterprise, covered capacity 40ton~18000ton.
* Inherited more than 60 years of metalforming R&D and Manufacturing experiences, more than 20 patents.
* Factory Area 200, 000.00 square meters.
* Staff of about 400 people
Main Products:
*Mechanical Press
* Coil Feeder
* Hydraulic Press
*Forging Hydraulic Press
* Special Purpose Customized Power Press.
Widely used in varieties of areas of aerospace, automobile manufacturing, shipbuilding, home appliances and others, popular for technologies of drawing, blanking, bending, Extrusion, Forging, SMG Composite molding, and etc.
Technology advantages:
* Inherited 60 years of hydraulic metalforming R&D and Manufacturing experiences, more than 20 patents.
* Take lead in technologies of proportional servo control, position digital control, synchronizing control, screen-touching and industry computer control, adopt three-dimension and module design technology, representing the highest level in the hydraulic press industry in China
Manufacturing Strength:
*The company have lots of large floor boring and milling machines, heavy lathes, milling machine planers and other key equipments, for varieties of machining.
*Also established new production base specially for heavy duty hydraulic press manufacturing more than 4000ton.
Marketing:
* As a result of good quality and reputation so that our products renowned at home and abroad, typical customers such as China CRRC, China CSR, China FAW, YTO, SINOPEC, CSIC, SHIFENG GROUP, LIFAN AUTO, BTE wheel, SUNRISE Wheel, FIAT, Bosch, Gree Air-conditioners, and etc.
*The presses already exported to over 20 countries and regions, such as Asia, Australia, America and Africa, and etc.
