| Prod Model: |
krt-200 |
| Name: |
200A Plasma Power |
| Voltage: |
380V/3 Phase 50/60Hz |
| Working Gas: |
Air |
Product Description
plasma cutting machine cnc plasma cutter
Feature :- Small size, light weight, energy efficient;
- It can cut carbon steel, stainless steel, galvanized steel and aluminum ect metal sheet ;
- Energy concentration, cutting speed, cutting slits narrow, smooth incision, small deformation;
- Vertical high cutting surface, cutting mild steel can be within 5 degree ;
- Built-in over current, over voltage, pressure, temperature and other multiple protection;
- 100% duty cycle, can work long hours;
- Three-phase 380V power supply, voltage for strong, can vary within the range of ± 10%;
Parameter :| Model | CUT-100 | KRT-130 | KRT-200 |
| Input voltage | V | 3X380(50Hz)±10% | 3X380(50Hz)±10% | 3X380(50Hz)±10% |
| Input power | KVA | 16 | 22 | 40 |
| Cutting current | A | 35-100 | 35-130 | 35-200 |
| Duty cycle | - | 100A/100% | 130A/100% | 200A/100% |
| Cutting thickness | MM | It depend on the cutting material , it only for reference | It depend on the cutting material , it only for reference | It depend on the cutting material , it only for reference |
| Perforation thickness | MM | 16 | 20 | 25 |
| Quality Cutting thickness | MM | 20 | 30 | 45 |
| Max Cutting thickness | MM | 38 | 45 | 55 |
| Working gas | - | Dry air | Dry air | Air(oxygen) |
| Gas flow | L/min | 200 | 200 | 150 |
| Working gas pressure | Mpa | 0.4 | 0.45 | 0.5 |
| Cooling method | - | Air cooling | Double Air cooling | Water cooling |
| Weight | kg | 45 | 60 | 90 |
| Dimensions | CM | 60x31x56(length x width x height ) | 76x35x63(length x width x height ) | 69x37x81(length x width x height ) |

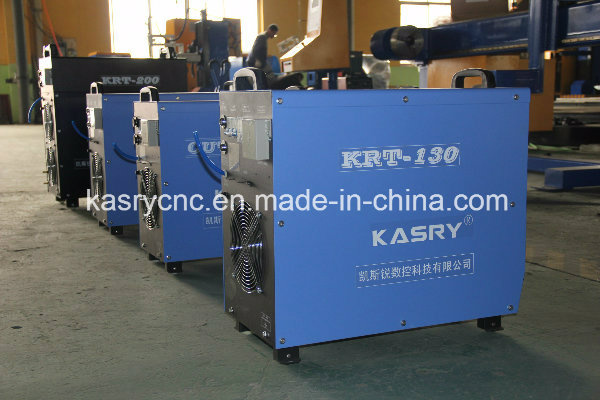

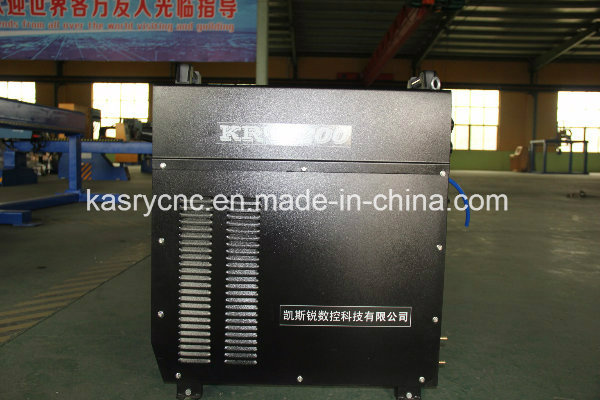

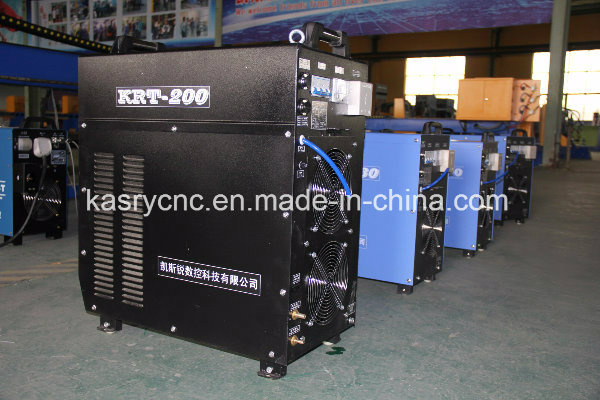

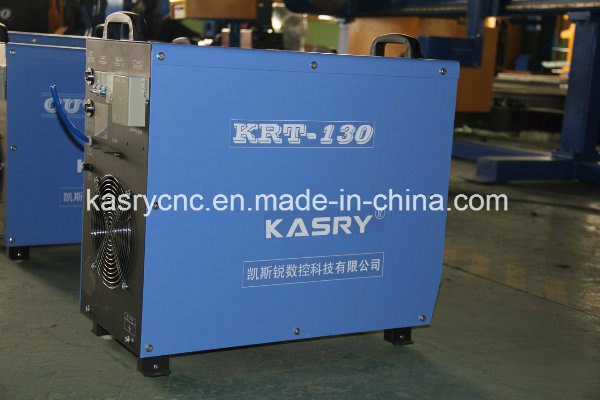

Machine at factory :
Why choose us ?1-We are professional manufacturer , our cutting machine all match with our own plasma cutter ,cutting quality is good .
2-We have strong technical and after sale team ,give customer enough support
3-We can provide the consumables for longtime
4-one year global warranty We are looking for agent ! Welcome to your inquiry !
