| Prod Model: |
SJZ |
| Rated Capacity: |
240kg |
| Min Platheight: |
3m |
| Platform Size: |
1.15*0.7m |
| Lift Motor Power: |
24 V/2kw |
| Drive Speed: |
4km/H |
| Extened Platform Size: |
0.555m |
| Battery: |
2*24V/160A |
| Charge: |
24V/15A |
| Netweight: |
590kg |
| Body Size: |
1.28m*0.7m*0.915m |
| Power: |
AC Motor |
| Load Capacity: |
≤1T |
| Load Center: |
550 |
Product Description
1.WHITE brand hydraulic motor, stable performance;
2.TROJAN large capacity maintenance free battery, long working hours.
3.Foldable guardrail, easy for stroage and transportation.
4.Extended platform,wide working scope.

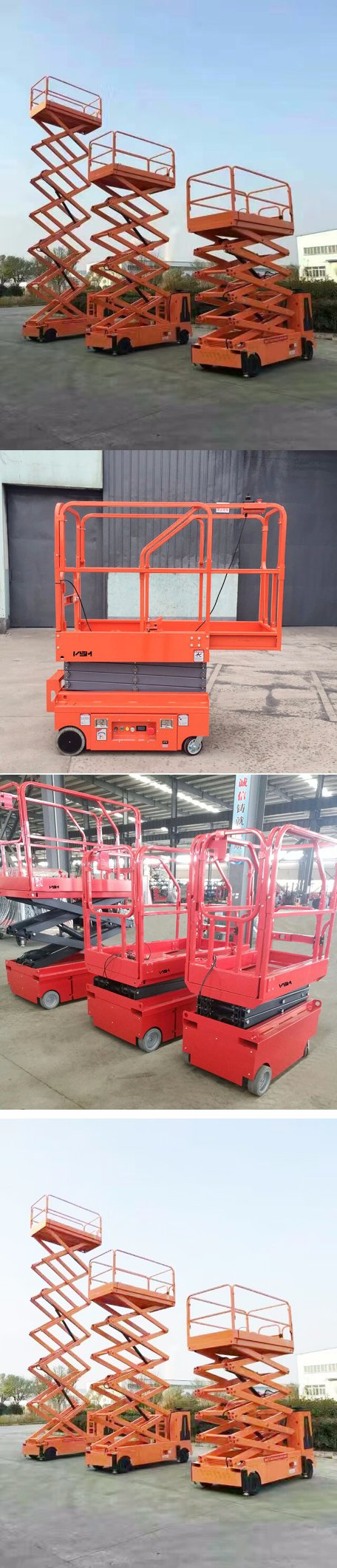

PRODUCT PHOTOES
PRODUCT INFORMATION:| Model | / | SJY0.24-3 | SJY0.24-3.9 |
| safe work capacity | kg | 240 | 240 |
safe work capacity of
extended platform | kg | 100 | 100 |
| Ma. Person No. | / | 1 | 1 |
| Max. work height | m | 5 | 5.9 |
| Max.Platform height | m | 3 | 3.9 |
| Length | m | 1.3 | 1.3 |
| width | m | 0.76 | 0.76 |
| height (unfolded guardrail ) | m | 1.86 | 1.94 |
| 2.77height (folded guardrail ) | m | 1.5 | 1.59 |
| work platform size | m | 1.15*0.7 | 1.15*0.7 |
| extended platform size | m | 0.55 | 0.55 |
| Min. Ground clearance (folded) | m | 0.05 | 0.05 |
| Min. Ground clearance (lifting) | m | 0.05 | 0.05 |
| wheel base | m | 1.03 | 1.03 |
| Min. turning radius | m | 0 | 0 |
| Min. turning radius | m | | |
| Lift motor | kw/v | 0.8/24 | 0.8/24 |
| driving speed (folded) | km/h | 4 | 4 |
| ()driving speed (lifting) | km/h | 0.5 | 0.5 |
| 0.8 ascend/descend speed | sec | 28/20 | 32/21 |
| battery | V/Ah | 2*12/55 | 2*12/55 |
| charger | V/A | 24/11 | 24/25 |
| Max. Grade ability | % | 25 | 25 |
| Max. Working angles | / | 1.5/2° | 1.5/2° |
| Inner and outer radius of tire | mm | 230*80 | 230*80 |
| overall weight | kg | 630 | 660 |

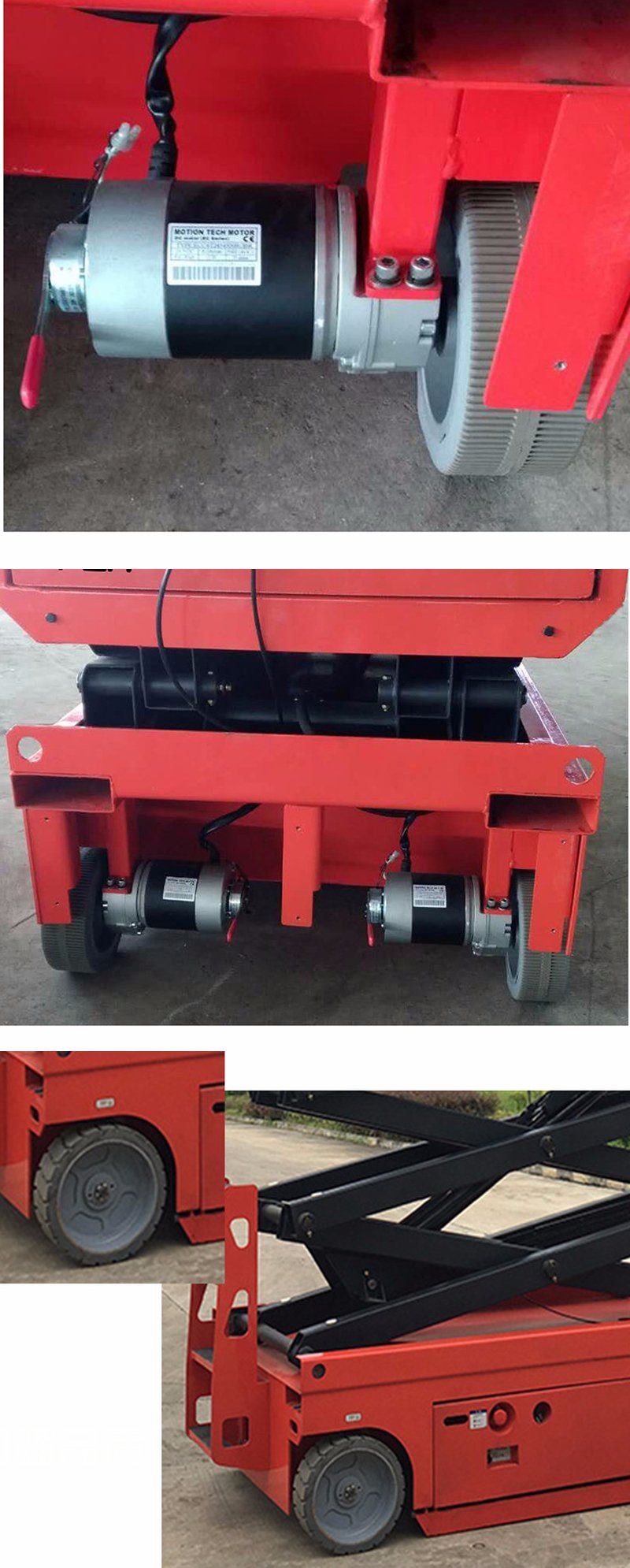

DETAILED PHOTOES
Packing:According to customers' requirement.
Our Service:1.We can design the customerized mini scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the mini scissor lift break down to help you repair.
6.Parts of mini scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:1.How can customer buy parts once it break down?
The mini self propelled scissor lifts adopt most of the common parts of hardware.
You can buy the parts in your local hardware market.
2.How can customer repair the mini self propelled scissor lifts.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to
repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certificate:ISO and CE
