API CF8c/321 Stainless Steel Gate Valve 600lb 4inch

Name: API CF8c/321 Stainless Steel Gate Valve 600lb 4inch
Brand: tool-buy.com
SKU: 749730965
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Zhejiang Jieyu Valve Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details:	Plywood or as The Customers' Requirement.
Delivery Detail:	Depend on The Quantity
Material:	Stainless Steel
Connection Form:	Flange
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Outside Gate Valve
Application:	Water Industrial Usage

Product Description

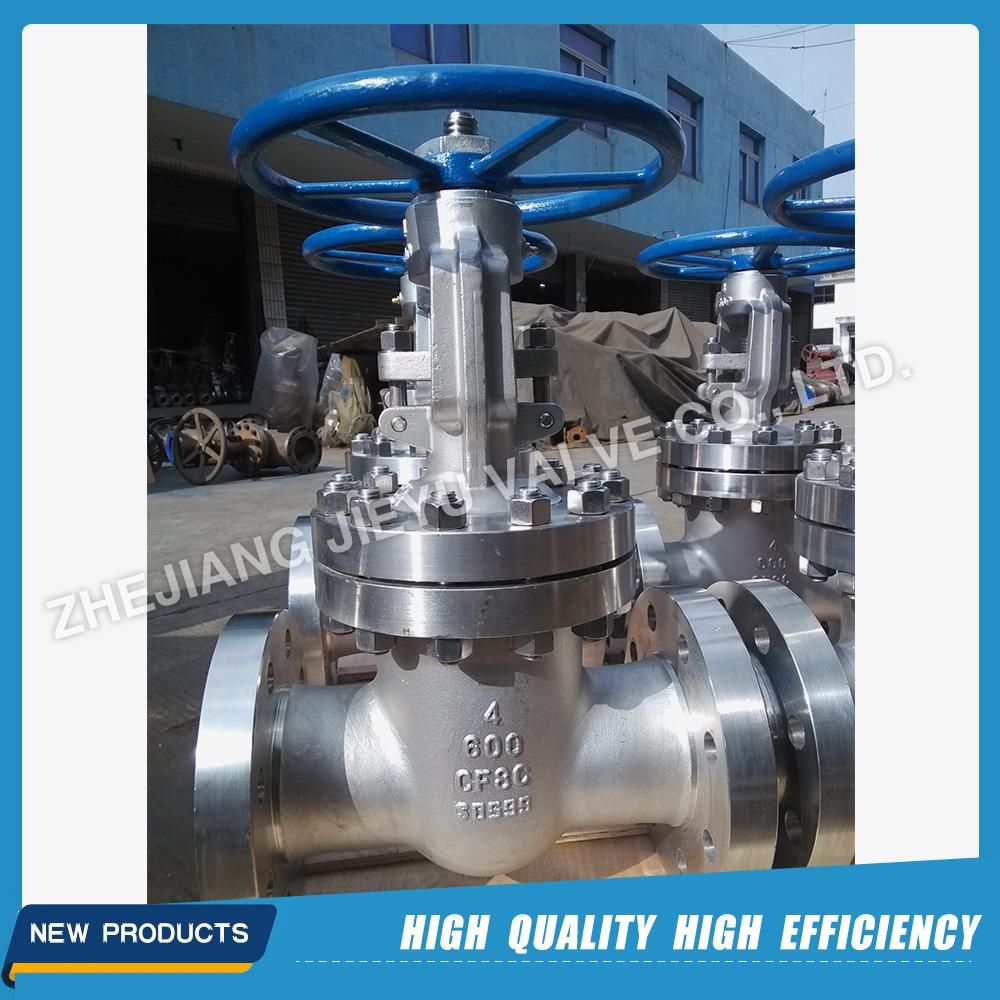

API CF8C/321 Stainless Steel Gate Valve 600LB 4inch

Specification:

Size: 1/2"-30"
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.

Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)

Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system

Standard:

Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc

NO.	Part Name	Material
01	Body	ASTM A216WCB	ASTM A351 CF8	ASTM A351 CF8M
02	Seat Ring	ASTM A216+13Cr	ASTM A351 CF8	ASTM A351 CF8M
03	Wedge	ASTM A216+13Cr	ASTM A351 CF8	ASTM A351 CF8M
04	Stem	ASTM A276 420	ASTM A182 F304	ASTM A182 F316
05	Gasket	304+Graphite	304+Graphite	316+Graphite
06	Bonnet	ASTM A216WCB	ASTM A351 CF8	ASTM A351 CF8M
07	Stud	ASTM A193 B7	ASTM A193-B8	ASTM A193-B8M
08	Nut	ASTM A194 2H	ASTM A194-8	ASTM A194-8M
09	Backseat	ASTM A216+13Cr	ASTM A351 CF8	ASTM A351 CF8M
10	Packing	Graphite	Graphite	Graphite
11	Pin	C.S	S.S	S.S
12	Gland Bolt	ASTM A193 B7	ASTM A193-B8	ASTM A193-B8M
13	Gland Nut	ASTM A194 2H	ASTM A194-8	ASTM A194-8M
14	Bushing	ASTM A216 F6a	S.S	S.S
15	Gland	ASTM A216WCB	ASTM A351 CF8	ASTM A351 CF8M
16	Stem Nut	ZcuAl10Fe3 Bronze	ZcuAl10Fe3 Bronze	ZcuAl10Fe3 Bronze
17	Lubricator	Cu	Cu	Cu
18	Retaining Nut	C.S	C.S+Cr	C.S+Cr
19	Handwheel	ASTM A47	ASTM A47	ASTM A47
20	H.W. Lock Nut	C.S	C.S+Cr	C.S+Cr

Products:

Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

show of power

FAQ:
1. Yes, sample order is available for quality check and market test. But it is not free.
2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.
3. We usually accept T/T, L/C, Western Union, Cash.
4. We offer 12months warranty time.
5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.
6. Yes, different models can be mixed up in one container.

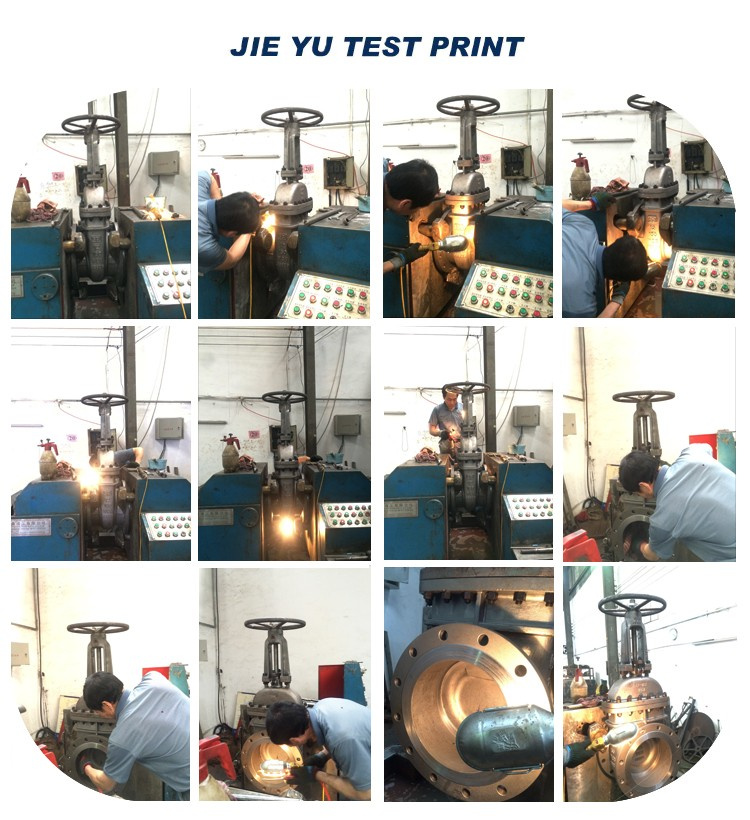

7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.
8. Yes, we have the right to export and can sell product all over the world.
9. Our company has been audited and approved API 6D, CE 0036, ISO9001.
Test report will be provided when all goods finished. Also we are the alibaba's gold supplier since 2010. Now we clients all around the world.

Zhejiang Jieyu Valve Co., Ltd. is located in the City of Valves-Longwan Wenzhou. The company possesses high precision machinery and equipment over 70 sets and has more than 200 employees, 30 of whom are dedicated senior or middle technicians. With advanced testing equipment, complete detection method and sound CAD aided design system, the company sets in research, production, sale and after-sale service integration business.

JIEYU is one of China's top enterprises with kinds of certificates, such as API-6D certificate from American Petroleum Institute \CE certificate from EC Pressure Equipment Directive PED\ISO9001 International Quality Management System Certificate\Manufacture License of Special Equipment TS certificate and so on

JIEYU valves are grouped into the broad categories of gate, globe, check, ball valves, strainers and etc, All of products are manufactured to strict specifications and industry standards, which include ANSI, API, BS, DIN, JIS, GB and JB. JIEYU valves are broadly applied in the areas of power generation, chemical and petrochemical, oil and gas, metallurgy, ship-building, medicine, and environmental protection industries.

JIEYU's strategy is to win with top quality and reliable reputation, that is why we now have so many esteemed and faithful clients at home and abroad. We are working harder and harder to offer all of clients the best
