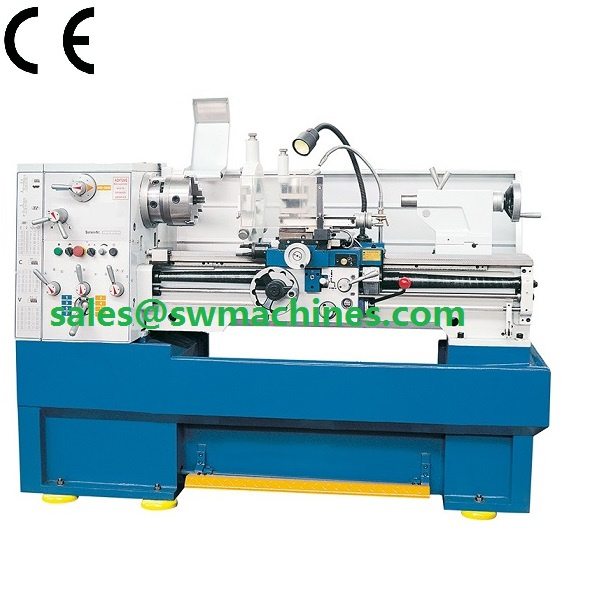

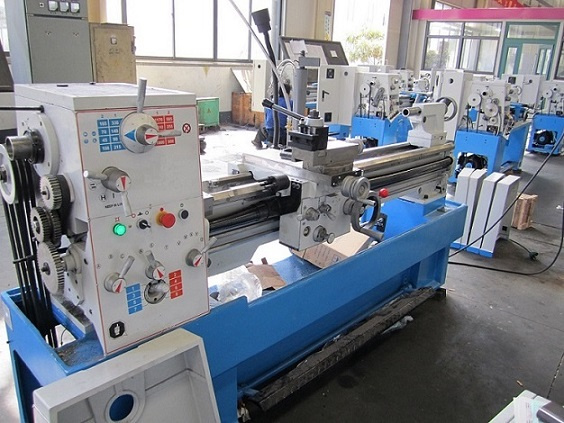

Bench Lathe with CE Standard (LC41)

Bench Lathe with CE Standard (LC41)
Price: US $ 4000-5500/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: LC41
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Swing Over Bed:410mm: Spindle Bore:52mm
Type: Horizontal Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: Precision

Product Description





Product Name: Bench Lathe LC41



Performance:

·  Powerful precision gear head lathe with cost effective.;
·  Need not change any gears you can turn all the metric and inch thread indicating in chart;
·  Three points support for spindle for the machine;
·  Clutch in apron for safety and for changing apron feed direction without changing spindle running direction knuth.

Standard Accessories:

·  3-Jaw chuck and adapter 200mm
·  4-Jaw chuck and adapter 320mm
·  Face plate 300mm
·  Staedy and follow rest
·  Thread chasing dial
·  MT 6/4 sleeve
·  Oil gun
·  Wrenches
·  Operation manual

Optional Accessories:

·  Taper turning attachment
·  Driving plate 200mm
·  Quick change tool post

Main Technical Data of the Machine:

SpecificationLC41
Capacity
Swing over bed410 mm
Swing over cross slide255 mm
Swing in gap580 mm
Length of gap190 mm
Distance between centers1000 mm / 1500 mm
Width of bed250 mm
Headstock
Spindle noseD1-6
Spindle bore52 mm
Taper of spindle boreNo.6 Morse
Range of spindle speed16 changes 45-1800 r/min
Feeds and Threads
Max.travel of compound rest102 mm
Max.travel of cross slide210 mm
Leadscrew pitch4T.P.I.
Max.Section of tool20 × 20 mm
Longitudinal feeds range0.05-1.7mm/rev
Cross feeds range0.025-0.85 mm
Metric threads range39 kinds 0.2-14 mm
Inch threads range45 kinds 2-72T.P.I.
Diametrical pitches range21 kinds 8-44 D.P.
Module pitches range18 kinds 0.3-3.5 M.P.
Tailstock
Dia.of tailstock sleeve50 mm
Travel of tailstock sleeve120 mm
Morse taper of tailstock sleeveNo.4 Morse
Cross adjustment±13 mm
Motor
Power of main motor2.2/3.3kw( 3.8/4.5HP)
Power of coolant pump0.1kw (1/8HP), 3PH
Dimension and Weight
Overall Dimension (L × W × H)1940 × 850 × 1320 mm

Packing size (L × W × H)2060 × 900 × 1640 mm
Net weight / Gross weight1550 / 1800 kg

Chengdu West Industrial Machinery Co., Ltd. is professional machine tools exporter. Our main products include lathe, line boring machine, portable welder and boring machine, on-site machine, CNC lathe, drilling machine, milling machine, machine center, grinding machine, press machine, slotting machine, press brake, shearing machine, sawing machine, welding machine, and related machine tools The company was established based on important principles for success in the machine tool industry - QUALITY, SERVICE, INNOVATION. West Industry's collaboration with international customers, suppliers and distributors has produced a strong international supplier network, loyal sales and distribution network and a large global customer base. Currently, our machine tools are already exported to MID East, Europe and other countries in Latin America. The Company's commitment to continuous development of research, innovation has supplied the high standards of products to maintain a competitive advantage in the global machine tool industry.
