| Prod Model: |
MT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Bore: |
Swing Over Bed |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| Power Source: |
Electric |
| Setting Mode: |
Table |
| Controlling Mode: |
Artificial |
| Type: |
Mini Lathe |
| Processing Accessory: |
Metal Parts |
Product Description

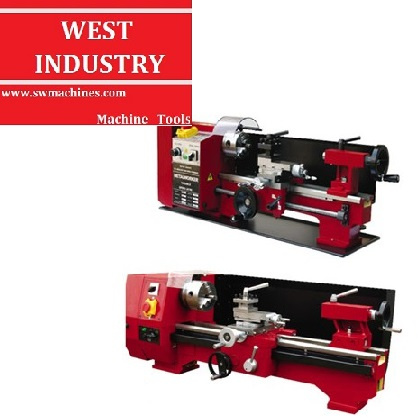

Product Name: Mini-Lathe MT Series
Performance: · Universal Mini Lathe;· Enough strong power motor;· With safety switch and over-load protection;· Complete set of change gear;· Four position turret post;· High accuracy; Standard Accessories: · 3-jaw Chuck (standard size)· MT2 Center· Change gear set· Wrench set· Oil gun Optional Accessories: · Grinding attachment· Carriage stop· Face plate· Clamping kit for face plate· Steady rest· Follow rest· Digital readout for cutting depth kit· Big size of 3-jaw chuck· 4-jaw chuck· Spindle center· Rolling center· Lathe dog· Rolling tailstock chuck· Mill attachment Main Technical Data of the Lathe:| Model | MT11x125 |
| Swing over bed | 110 mm |
| Distance between centers | 125 mm |
| Hole through spindle | 10 mm |
| Tailstock screw | M14×1 mm |
| Spindle speed | 100-3800 rpm±10% |
| Cross slide travel | 50 mm |
| Motor output power | 150 W |
| Overall dimension (L×W×H) | 440×270×210 mm |
| Weight (Net/Gross) | 14/16 kg |
| Packing size (L×W×H) | 500×400×310 mm |
| Model | MT14x250 |
| Swing over bed | 140 mm |
| Distance between centers | 250 mm |
| Hole through spindle | 10 mm |
| Spindle taper | MT2 |
| Tailstock taper | MT1 |
| Spindle speed | 100-2000 rpm±10% |
| Cross slide travel | 50 mm |
| Motor output power | 150 W |
| Range of threads | Metric 0.5-1.25mm (5 thread pitches) Inch 16-24TPI (5 thread pitches) |
|
| Overall dimension (L×W×H) | 620×300×220 mm |
| Weight (Net/Gross) | 23/32 kg |
| Packing size (L×W×H) | 680×350×390 mm |
| Model | MT18Ax200 | MT18Bx300 | MT18Cx300 |
| Swing over bed | 180 mm |
| Swing over saddle | 110 mm |
| Distance between centers | 200 mm | 300 mm |
| Hole through spindle | 20 mm |
| Cross slide travel | 65 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Spindle speed | Low range: 100-1100 rpm±10% | 100-2500 rpm±10% |
| High range: 100-2500 rpm±10% |
| Motor output power | 250 W | 500W |
| Range of threads | Metric 0.4-2.0mm (10 thread pitches) Inch 12-52 TPI (8 thread pitches |
|
| Overall dimension(L×W×H) | 620×300×290 mm | 720×300×290 mm | 720×300×290 mm |
| Net/Gross weight | 33/36 kg | 37/40 kg | 50/60 kg |
| Packing size (L×W×H) | 670×330×330 mm | 770×330×330 mm | 870×360×380 mm |
| Model | MT18Dx350 |
| Swing over bed | 180 mm |
| Distance between centers | 350 mm |
| Cross slide travel | 65 mm |
| Hole through spindle | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Spindle speed | Low range100-1200 rpm±10% High range 100-3000 rpm±10% |
|
| Motor output power | 350 W |
| Range of threads | Metric 0.4-2.0mm (10 thread pitches) Inch 12-52TPI (8 thread pitches) |
|
| Weight (Net/Gross) | 44/56 kg |
| Overall dimension(L×W×H) | 880×290×290 mm |
| Packing size (L×W×H) | 850×340×370 mm |
| Model | MT21x410 |
| Swing over bed | 210 mm |
| Distance between centers | 410 mm |
| Cross slide travel | 100 mm |
| Hole through spindle | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Spindle speed | 150-2000 rpm±10% |
| Compound travel | 70 mm |
| Motor output power | 1000 W |
| Range of threads | Metric 0.25-3.0mm OR Inch 8-24TPI |
|
| Weight (Net/Gross) | 94/125 kg |
| Overall dimension(L×W×H) | 1000×550×400 mm |
| Packing size (L×W×H) | 1070×710×530 mm |
| Model | MT25Ax400 | MT25Bx500 |
| Swing over bed | 250 mm |
| Distance between centers | 400 mm | 550 mm |
| Hole through spindle | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Spindle speed (6 stpes) | 125-2000 rpm |
| Compound travel | 75 mm |
| Cross slide travel | 110 mm |
| Motor output power | 550 W |
| Range of threads | Metric 0.4-3.0 mm (12 thread pitches) Inch 10-44TPI (8 thread pitches) |
|
| Net/Gross weight | 125/160kg | 145/180kg |
| Overall dimension(L×W×H) | 1080×680×450 mm | 1230×680×450 mm |
| Packing size (L×W×H) | 1100×680×610 mm | 1230×660×610 mm |
| Model | MT25Cx400 | MT25Dx550 |
| Swing over bed | 250 mm |
| Distance between centers | 400 mm | 550 mm |
| Hole through spindle | 20 mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Spindle speed (variable steps) | 0-2000 rpm |
| Compound travel | 75 mm |
| Cross slide travel | 110 mm |
| Motor output power | 800 W |
| Range of threads | Metric 0.4-3.0 mm (12 thread pitches) Inch 10-44TPI (8 thread pitches) |
|
| Net/Gross weight | 125/160kg | 145/180kg |
| Overall dimension(L×W×H) | 1080×680×450 mm | 1230×680×450 mm |
| Packing size (L×W×H) | 1100×680×610 mm | 1230×660×610 mm |
