| Prod Model: |
LG36/40/50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
Spindle Bore |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
Product Description

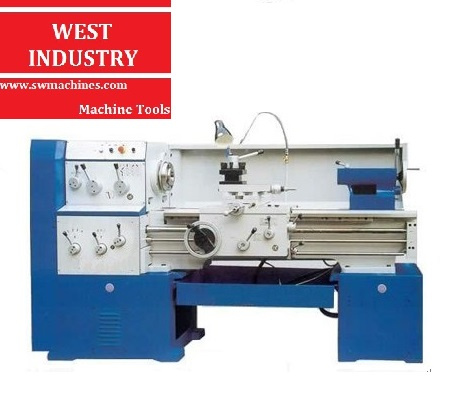

Product Name: Lathe LG36/40/50 Series
Performance: · Ideal precision horizontal lathe;· Guideways ultrasonic frequency quenched to ensure a long service life;· Guideways ground to ensure high accuracy;· Spindle bore is 52mm and the spindle nose conforms to ISO-C6;· Gears in headstock precisely ground to reduce noise;· Feeding box well sealed to eliminate leakage;· Kinds of threads;· Tailstock locked by thread or camlock;· The machine's electric system is reliable and safe;· The machine has the Removable gap;· Electromagnetic brake can be amounted when needed, and color at users option. Standard Accessories:· 3-Jaw chuck· Center sleeve· Face plate · Steady rest · Follow rest · Wrenches · Oil gun · Operation manual· Thread dial Optional Accessories: · Live center· Quick change toolpost· Taper copy ruler Main Technical Data of the Machine:| Specifications | LG36 | LG40 | LG50 |
| Capacity | Max. swing over bed | 360 mm | 400 mm | 500 mm |
| Max. swing over cross slide | 190 mm | 230 mm | 330 mm |
| Max. swing over gap | 520 mm | 560 mm | 660 mm |
| Center distance | 750, 1000, 1500 mm |
| Bed width | 360 mm |
| Spindle | Spindle hole | φ52 mm |
| Spindle nose | C6 |
| Spindle taper | MT6 |
| Spindle speeds (Number) | 40-1400 rpm (9Steps) |
| Feeds | Metric threads range (Kinds) | 0.25-14 mm (19 Kinds) |
| Inch threads range (Kinds) | 2-40 Inch |
| Module threads range (Kinds) | 0.5-3.5 (11 Kinds) |
| Carriage | Cross slide travel | 180 mm | 222 mm |
| Compound rest travel | 95 mm |
| Cross-section size of toolshank | 20 × 20 mm2 |
Tailstock
| Dia. of tailstock sleeve | 65 mm |
| Taper of tailstock sleeve | MT4 |
| Travel of tailstock sleeve | 140 mm |
| Main motor power (kw) | 4 | 5.5 |
| Net / Gross Weight (kgs) | Center distance 750 mm | 1350/2000 | 1400/2050 | 1500/2150 |
| 1000 mm | 1450/2100 | 1500/2150 | 1600/2250 |
| 1500mm | 1600/2250 | 1650/2300 | 1750/2400 |
| Packing size(L × W × H) | Center distance 750 mm | 2220 × 1150 × 1590 mm |
| 1000 mm | 2470 × 1150 × 1590 mm |
| 1500 mm | 2970 × 1150 × 1590 mm |
