Product Description

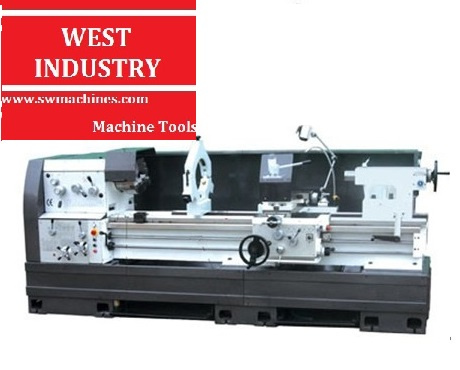

Product Name: Lathe LG60Y/66Y/80Y Series
Performance:
· Large spindle bore precision lathe;
· The machine 's spindle bore is 103 mm;
· Precision ground;
· Clutched head stock;
· CE-conformity;
· Safety torque limiting device for lead screw;
· Safety overload clutch for feed rod;
· Rapid traverse (optional);
· Main spindle supported at 2 points with predision taper roller bearings;
· 2500-3000mm Lathe with follow chip curd;
· Super-audio frequency hardened (more than HB400);
· The machine has removable gap.
Standard Accessories:
· 4 jaw chuck
· Driving plate
· Center and center sleeve
· Wrenches
· Oil gun
· Operation manaul
· Steady rest and follow rest
· Face plate
· Thread dial
Optional Accessories:
· Live center
· Quick change toolpost
· Taper copy ruler
Main Technical Data of the Machine:
| Specifications | LG60Y | LG66Y | LG80Y |
| Capacity | Swing over bed | 600 mm | 660 mm | 800 mm |
| Swing over cross slide | 400mm | 460mm | 600 mm |
| Swing in gap | 800 mm | 860 mm | 1000 mm |
| Valid length of gap | 280 mm |
| Max. length of work piece | 1000, 1500, 2000, 3000 mm |
| Width of bedways | 400 mm |
Headstock
| Spindle nose | ISO-C11 or ISO-D11 |
| Spindle bore | 103 mm |
| Range of spindle speeds(Nnber) | Orthogyral:9-1275rpm,18step / Reversal:16-816rpm, 6step |
Feeds and Threads
| Max. travel of compound rest | 110 mm |
| Max. travel of cross slide | 325 mm |
| Longitudinal leadscrew pitch | 12 mm or 2TPI |
| Section of tool | 32 × 32 mm |
| Longitudinal feeds range | 72 kinds 0.073-4.066 mm/rev |
| Cross feeds range | 72 kinds 0.036-2.033 mm/rev |
| Metric threads range | 72 kinds 0.5-112 mm/rev |
| Inch threads range | 72 kinds 56-¼ t/inch |
| Module threads range | 36kinds 0.5-7 mm/rev |
| Diametral threads range | 36kinds 56-4Dp |
| Tailstock | Dia. of tailstock sleeve | 90 mm |
| Morse taper of tailstock sleeve | Morse No.6 |
| Taper of tailstock sleeve | 150 mm |
| Cross adjustment range | 10 mm |
| Motor | Power of main motor | 7.5 or 10 |
| Power of quick-travel motor | 250 W |
| Power of coolant pump | 90 W |
| Power supply applicable | 220V, 380V, 420V (50HZ, 60HZ) |
| Packing size (L × W × H) | 1000 mm | 2820 × 1300 × 2100 mm |
| 1500 mm | 3320 × 1300 × 2100 mm |
| 2000 mm | 3820 × 1300 × 2100 mm |
| 3000 mm | 4820 × 1300 × 2100 mm |
| NET / Gross Weight (kg) | 1000 mm | 2900/3500 | 3000/3600 | 3150/3750 |
| 1500 mm | 3150/3750 | 3250/3850 | 3400/4000 |
| 2000 mm | 3400/4050 | 3500/4150 | 3650/4300 |
| 3000 mm | 3800/4450 | 3900/4550 | 4050/4700 |
