Product Description

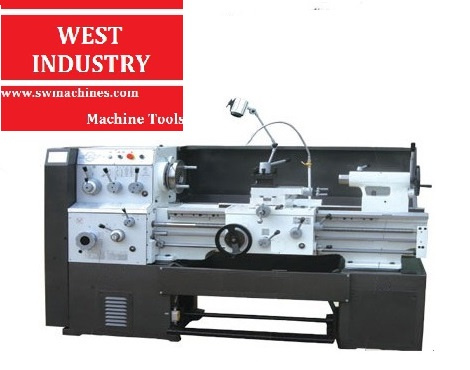

Product Name: Lathe LG36F/40F/50F Series
Performance: · Powerful horizontal lathe;· Gear box upgraded on the basis of LG series lathe, so as to free operators free the trouble from
exchange gears, and to enlarge thread ranges;· Guideways ultrasonic frequency quenched to ensure a long service life;· Guideways ground to ensure high accuracy;· Spindle bore 52mm and the spindle nose conforms to ISO-C6;· Gears in headstock precisely ground to reduce noise;· Feeding box well sealed to eliminate leakage;· Full Series of threads;· The machine 's tailstock locked by thread or camlock;· Electric system is reliable and safe;· Electromagnetic brake can be amounted when needed and color at user option;· The machine has removable gap. Standard Accessories: · 3 jaw chuck· Center and center sleeve· Wrenches· Oil gun· Operation manaul· Steady rest and follow rest· Face plate· Thread dial Optional Accessories: · Live center· Quick change toolpost· Taper copy ruler Main Technical Data of the Machine: | Specifications | LG36F | LG40F | LG50F |
| Capacity | Max. swing over bed | 360 mm | 400 mm | 500 mm |
| Max. swing over cross slide | 190 mm | 230 mm | 330 mm |
| Max. swing over gap | 520 mm | 560 mm | 660 mm |
| Center distance | 750, 1000, 1500 mm |
| Bed width | 360 mm |
| Spindle | Spindle hole | φ52 mm |
| Spindle nose | C6 |
| Spindle taper | MT6 |
| Spindle speeds (Number) | 40-1400 rpm (9 steps) |
| Feeds | Metric threads range (Kinds) | 0.25-14 mm (17 Kinds) |
| Inch threads range (Kinds) | 5-144/ Inch (30 Kinds) |
| Module threads range (Kinds) | 0.25-3.5 (12 Kinds) |
| Diametral threads range (Kinds) | 10-288 π/inch (30 Kinds) |
| Carriage | Cross slide travel | 180 mm | 222 mm |
| Compound rest travel | 95 mm |
| Cross-section size of toolshank | 20 × 20 mm2 |
| Tailstock | Dia. of tailstock sleeve | 65 mm |
| Taper of tailstock sleeve | MT4 |
| Travel of tailstock sleeve | 140 mm |
| Main motor power (kw) | 4 | 5.5 |
| Packing size (L × W × H) | Center distance 750 mm | 2220 × 1150 × 1590 mm |
| 1000 mm | 2470 × 1150 × 1590 mm |
| 1500 mm | 2970 × 1150 × 1590 mm |
| NET / Gross Weight (kg) | Center distance 750 mm | 1350/2000 | 1400/2050 | 1500/2150 |
| 1000 mm | 1450/2100 | 1500/2150 | 1600/2250 |
| 1500 mm | 1600/2250 | 1650/2300 | 1750/2400 |
