| Prod Model: |
P22611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania |
| 02: |
G1/8" X 28 |
| 04: |
G1/4" X 19 |
| 06: |
G3/8" X 19 |
| 08: |
G1/2" X 14 |
| 10: |
G5/8" X 14 |
| 12: |
G3/4" X 14 |
| 16: |
G1" X 11 |
| 20: |
G1.1/4" X 11 |
| 24: |
G1.1/2"X11 |
| 32: |
G2"X11 |
| Standard: |
ANSI |
| Material: |
Medium Carbon Steel |
| Connection: |
Female |
Product Description

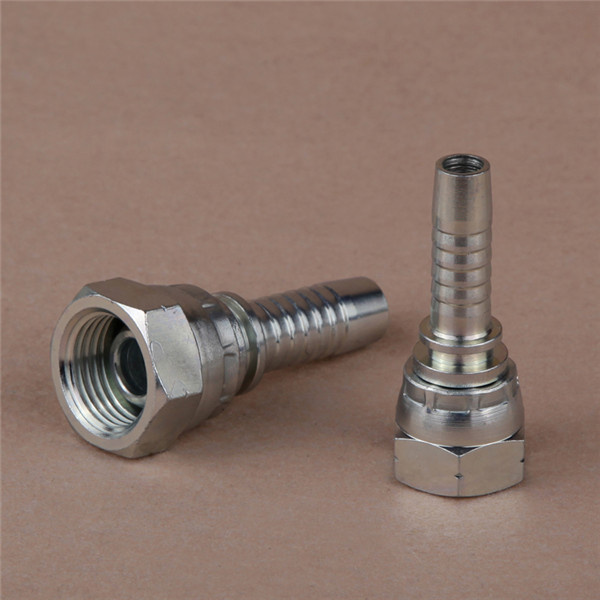

BSP FEMALE 60 DEGREE CONE
Bsp female 60 degree cone fitting could be produced with straight, 45 degree bend and 90 degree bend fittings.
1. zinc plating: white zinc or yellow zinc are available
2. material optional: carbon steel, stainless stell or brass
3. we have ISO 9001certification
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S2 |
| P22611-02-03 | G1/8"-28 | 4 | 03 | 5.5 | 14 |
| -02-04 | G1/8"-28 | 6 | 04 | 5.5 | 14 |
| -04-03 | G1/4"-19 | 4 | 03 | 5.5 | 19 |
| -04-04 | G1/4"-19 | 6 | 04 | 5.5 | 19 |
| -04-05 | G1/4"-19 | 8 | 05 | 5.5 | 19 |
| -04-06 | G1/4"-19 | 10 | 06 | 5.5 | 19 |
| -06-04 | G3/8"-19 | 6 | 04 | 6.3 | 22 |
| -06-05 | G3/8"-19 | 8 | 05 | 6.3 | 22 |
| -06-06 | G3/8"-19 | 10 | 06 | 6.3 | 22 |
| -06-08 | G3/8"-19 | 12 | 08 | 6.3 | 22 |
| -08-06 | G1/2"-14 | 10 | 06 | 7.5 | 27 |
| -08-08 | G1/2"-14 | 12 | 08 | 7.5 | 27 |
| -10-08 | G5/8"-14 | 12 | 08 | 9.5 | 30 |
| -10-10 | G5/8"-14 | 16 | 10 | 9.5 | 30 |
| -12-08 | G3/4"-14 | 12 | 08 | 10.9 | 32 |
| -12-10 | G3/4"-14 | 16 | 10 | 10.9 | 32 |
| -12-12 | G3/4"-14 | 20 | 12 | 10.9 | 32 |
| -16-12 | G1"-11 | 20 | 12 | 11.7 | 41 |
| -16-16 | G1"-11 | 25 | 16 | 11.7 | 41 |
| -20-16 | G1.1/4"-11 | 25 | 16 | 11 | 50 |
| -20-20 | G1.1/4"-11 | 32 | 20 | 11 | 50 |
| -24-20 | G1.1/2"-11 | 32 | 20 | 13 | 55 |
| -24-24 | G1.1/2"-11 | 40 | 24 | 13 | 55 |
| -34-24 | G2"-11 | 40 | 24 | 16 | 70 |
| -32-32 | G2"-11 | 50 | 32 | 16 | 70 |
