| Prod Model: |
10411 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 12: |
M12X1.25 |
| 14: |
M14X1.5 |
| 16: |
M16X1.5 |
| 18: |
M18X1.5 |
| 22: |
M22X1.5 |
| 27: |
M27X1.5 |
| 30: |
M30X1.5 |
| 36: |
M36X2 |
| 39: |
M39X2 |
| 45: |
M45X2 |
| Standard: |
DIN |
| Material: |
Low Carbon Steel |
| Connection: |
Male |
Product Description

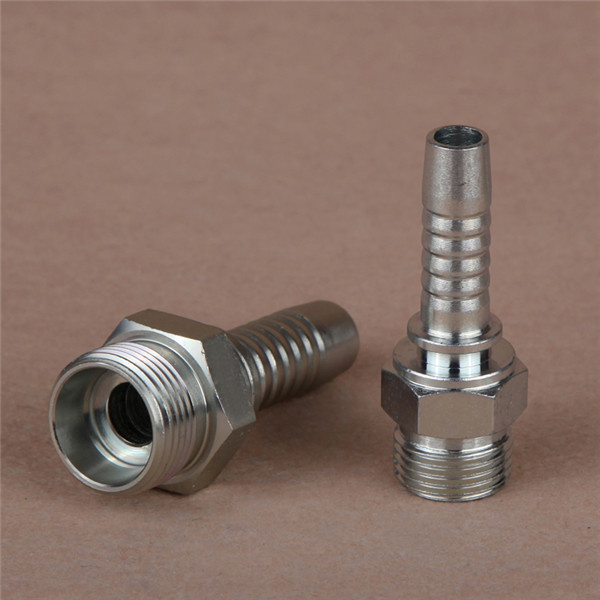

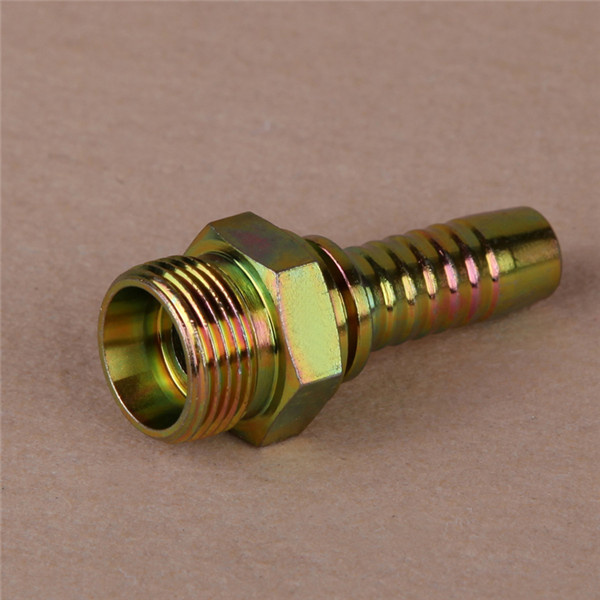

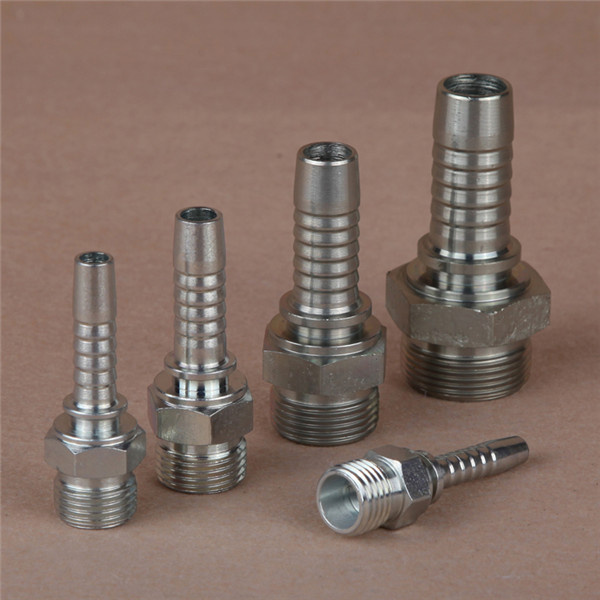

JB O-RING METRIC MALE FLAT SEAT
This item could be used for te FEMALE FLAT SEAT FITTING 2021.
Material carbon steel, stainless steel and brass are all available.
| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | DIMENSIONS |
| DN | DASH | C | S1 |
| P10411-12-04 | M12x1.5 | 6 | 04 | 6 | 10.7 | 14 |
| -12-04A | M12X1.25 | 6 | 04 | 6 | 10.7 | 14 |
| -14-04 | M14x1.5 | 6 | 04 | 8 | 13 | 17 |
| -14-05 | M14x1.5 | 8 | 05 | 8 | 13 | 17 |
| -16-04 | M16x1.5 | 6 | 04 | 10 | 13.5 | 17 |
| -16-05 | M16x1.5 | 8 | 05 | 10 | 13.5 | 17 |
| -16-06 | M16x1.5 | 10 | 06 | 10 | 13.5 | 17 |
| -18-05 | M18X1.5 | 8 | 05 | 12 | 13.5 | 19 |
| -18-06 | M18X1.5 | 10 | 06 | 12 | 13.5 | 19 |
| -20-04 | M20X1.5 | 6 | 04 | 14 | 13.5 | 22 |
| -20-08 | M20X1.5 | 12 | 08 | 14 | 13.5 | 22 |
| -22-06 | M22X1.5 | 10 | 06 | 15 | 13.5 | 24 |
| -22-08 | M22X1.5 | 12 | 08 | 15 | 13.5 | 24 |
| -24-08 | M24X1.5 | 12 | 08 | 18 | 13.5 | 27 |
| -26-08 | M26X1.5 | 12 | 08 | 18 | 14 | 27 |
| -26-10 | M26X1.5 | 16 | 10 | 18 | 14 | 27 |
| -27-08 | M27X1.5 | 12 | 08 | 18 | 14 | 30 |
| -27-10 | M27X1.5 | 16 | 10 | 18 | 14 | 30 |
| -27-12 | M27X1.5 | 20 | 12 | 18 | 14 | 30 |
| -30-08 | M30X2 | 12 | 08 | 22 | 18 | 32 |
| -30-10 | M30X2 | 16 | 10 | 22 | 18 | 32 |
| -30-12 | M30X2 | 20 | 12 | 22 | 18 | 32 |
| -36-16 | M36X2 | 25 | 16 | 28 | 18 | 38 |
| -45-20 | M45X2 | 32 | 20 | 35 | 19 | 46 |
| -52-24 | M52X2 | 40 | 24 | 42 | 19 | 55 |
