| Prod Model: |
14211 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/8"-2" |
| Color: |
White |
| Thread E: |
M12X1.5 |
| Stock: |
Have |
| Standard: |
DIN |
| Material: |
Medium Carbon Steel |
| Connection: |
Female |

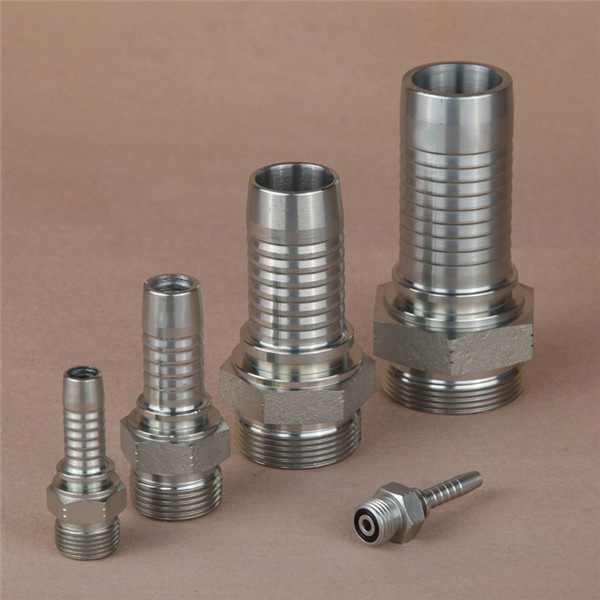

Product Description
1. Zinc plating: White zinc or yellow zinc are available
2. Material optional: Carbon steel, stainless stell or brass
3. SO 9001certification
4. Material: Carbon steel 45#
Sample avaliable for free
| PART NO. | tdREAD E | HOSE BORE | O-RING | DIMENSIONS |
| DN | DASH | A | C | S1 |
| P14211-04-04 | 9/16"X18 | 6 | 04 | O011 | 22.3 | 9.8 | 17 |
| P14211-06-04 | 11/16"X16 | 6 | 04 | O012 | 24 | 11.2 | 19 |
| P14211-06-06 | 11/16"X16 | 10 | 06 | O012 | 24 | 11.2 | 19 |
| P14211-08-06 | 13/16"X16 | 10 | 06 | O014 | 27.5 | 12.8 | 22 |
| P14211-08-08 | 13/16"X16 | 12 | 08 | O014 | 28.5 | 12.8 | 22 |
| P14211-08-10 | 13/16"X16 | 16 | 10 | O014 | 28.5 | 12.8 | 22 |
| P14211-10-08 | 1"X14 | 12 | 08 | O016 | 32.5 | 15.5 | 27 |
| P14211-10-10 | 1"X14 |
16 | 10 | O016 | 34 | 15.5 | 27 |
| P14211-12-08 | 1.3/16"X12 | 12 | 08 | O018 | 35.5 | 17 | 32 |
| P14211-12-10 | 1.3/16"X12 | 16 | 10 | O018 | 36.5 | 17 | 32 |
| P14211-12-12 | 1.3/16"X12 |
20 | 12 | O018 | 36.5 | 17 | 32 |
| P14211-16-12 | 1.7/16"X12 | 20 | 12 | O021 | 37 | 17.5 | 38 |
| P14211-16-16 | 1.7/16"X12 |
25 | 16 | O021 | 38.5 | 17.5 | 38 |
| P14211-20-20 | 1.11/16"X12 | 32 | 20 | O025 | 41.5 | 17.5 | 46 |
| P14211-24-24 | 2"X12 | 40 | 24 | O029 | 43.5 | 17.5 | 55 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 14212-XX-XX. |
