| Prod Model: |
03310 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
It Is Suitable for 1t/2t 1sn/2sn Hose |
| Standard: |
DIN |
| Connection: |
Ferrule |
Product Description

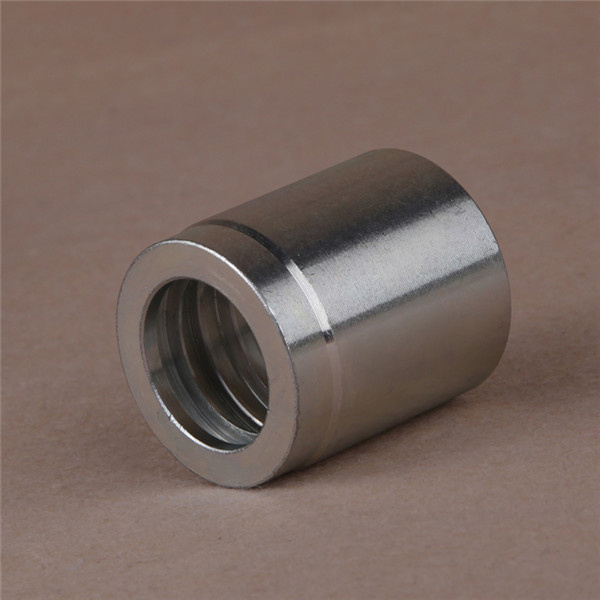

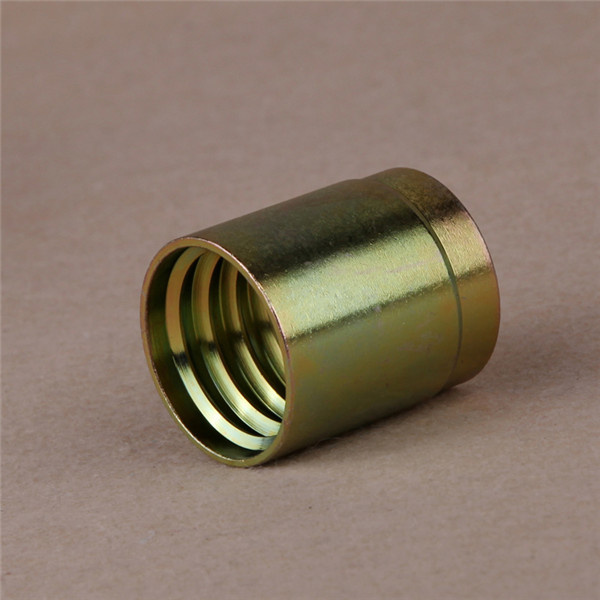

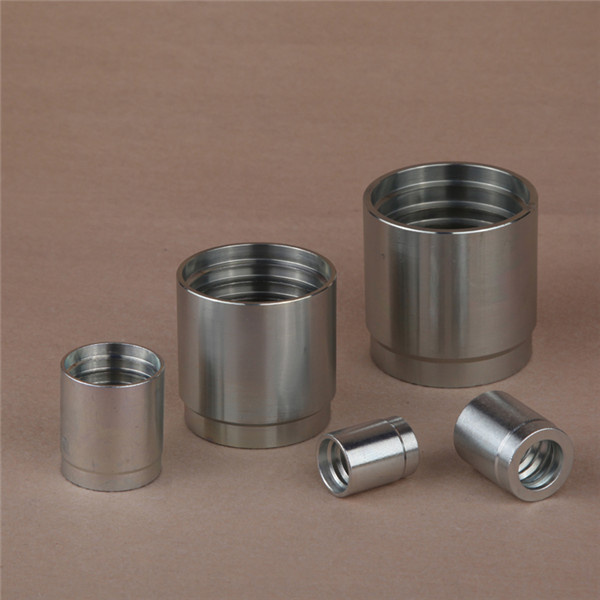

Ferrule for 4SP, 4SH/10-16, R12/06-16 Hose
Material: Brass, Carbon steel, Stainless Steel
Size: All size available
Surface Finish: White, yellow, trivalent chrome zinc plating
| PART NO. | HOSE BORE | DIMENSIONS | Price |
| DN | DASH | D | L |
| P03310-03 | 5 | 03 | 21 | 23 | Price |
| P03310-04 | 6 | 04 | 23 | 30.5 | Price |
| P03310-05 | 8 | 05 | 24 | 30 | Price |
| P03310-06 | 10 | 06 | 26 | 32 | Price |
| P03310-08 | 12 | 08 | 29 | 34 | Price |
| P03310-10 | 16 | 10 | 33 | 37 | Price |
| P03310-12 | 20 | 12 | 37 | 42 | Price |
| P03310-16 | 25 | 16 | 46 | 51 | Price |
| P03310-20 | 32 | 20 | 59 | 59 | Price |
| P03310-24 | 40 | 24 |
| 74 | Price |
| P03310-32 | 50 | 32 |
| 78 | Price |
|
