| Prod Model: |
STC Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
China Supplier Super Low Height Hydraulic Jack |
| Model Number: |
Stc Series |
| Maximum Stroke: |
30mm |
| Material: |
:#45 Steel |
| OEM: |
Yes |
| Weight Range: |
1-72.6 Kg |
| Body Material: |
Steel |
| Color: |
Customerized |
| Capacity: |
50-1000t |
| Market: |
Global |
| Type: |
Hydraulic Jack |
| Structure: |
Hydraulic Jack |
| Power Source: |
Hydraulic |
| Capacity (',Load): |
6-50t |
| Max Height: |
5-25mm |
Product Description

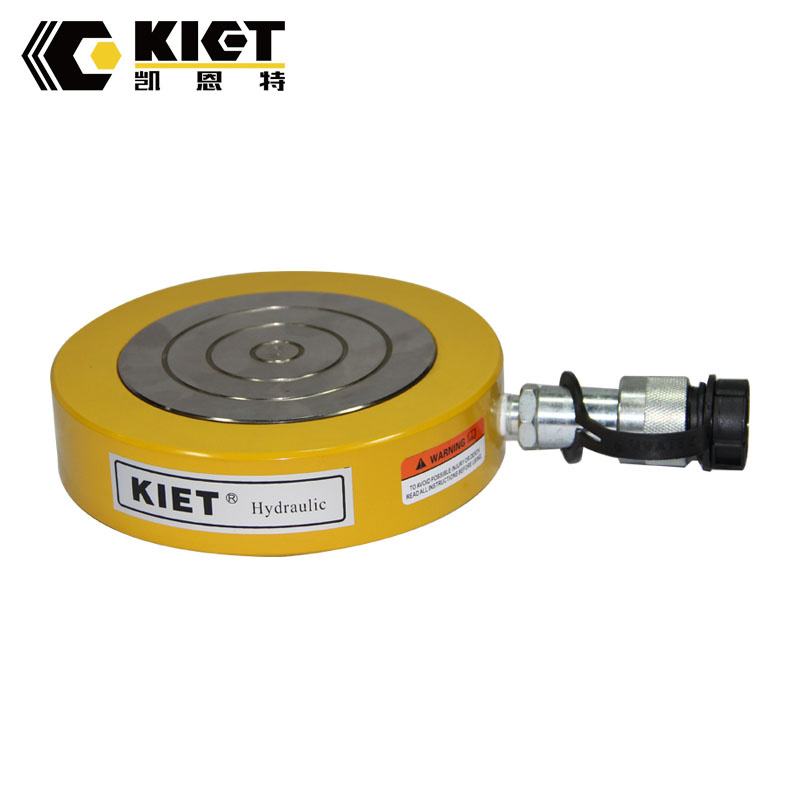

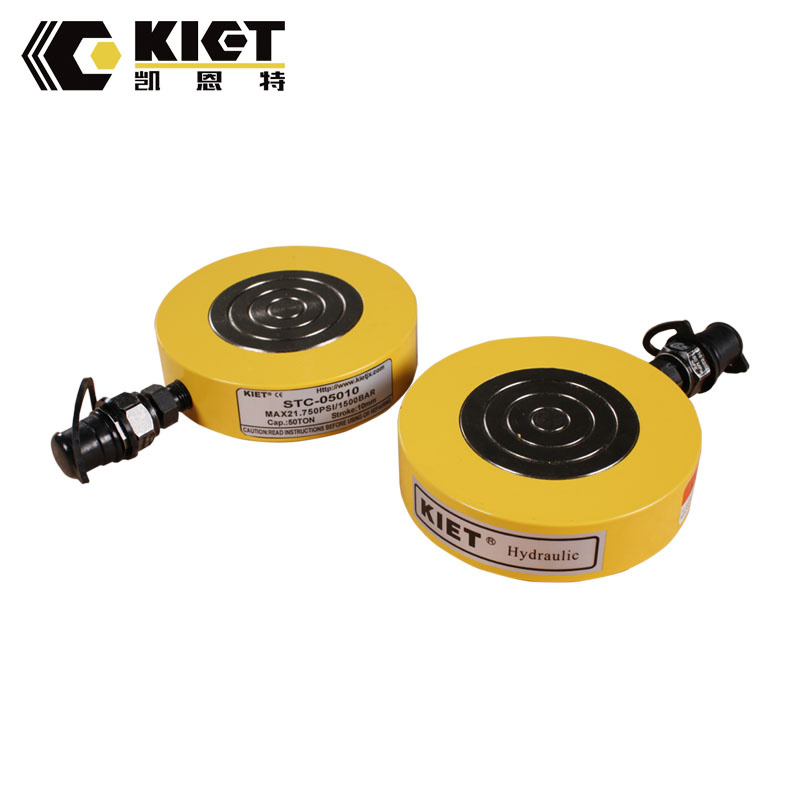

China Supplier Super Low Height Hydraulic Jack for Lifting Product DescriptionsUltra high pressure ultra low height hydraulic cylinder mainly used in space is very limited occasions, for example: replacing abutment for expressway bridge, shipbuilding plant marine engine adjustment, lifting of steam turbine maintenance in power plant and so on.
Product Features1. The top end is provided with an elastic sealing piece to avoid the impurity into the cylinder, extending cylinder life.
2. Overload test pressure is 1.5 times higher than the rated working pressure.
3. Top finite overflow port, When the plunger over stroke, automatic overflow, safe and convenient.
4. Compared with the same kind cylinder, the same closed height, there is a longer lift stroke.
5. G1/4'' coupler and dust cap included on all models.
Package: Wooden Package
Model Number | Capacity | Stroke
(mm) | Height
(mm) | Cylinder
Diameter
(mm) | Piston Rod
Diameter
(mm) | Working Pressure |
| KT-STC-5T-10 | 5T | 10 | 30 | 60 | 21 | 150MPa |
| KT-STC-10T-10 | 10T | 10 | 30 | 70 | 30 |
| FT-STC-25T-10 | 25T | 10 | 30 | 90 | 47 |
| KT-STC-50T-10 | 50T | 10 | 30 | 115 | 68 |
| KT-STC-65T-10 | 65T | 10 | 30 | 120 | 75 |
| KT-STC-100T-10 | 100T | 10 | 30 | 144 | 95 |
| KT-STC-50T-10 | 50T | 10 | 30 | 144 | 95 | 70MPa |
| KT-STC-100T-10 | 100T | 10 | 32 | 205 | 135 |
| KT-STC-100T-20 | 100T | 20 | 55 | 205 | 135 |
| KT-STC-100T-12 | 100T | 12 | 45 | 185 | 130 |
| KT-STC-120T-10 | 120T | 10 | 30 | 160 | 100 | 150MPa |
| KT-STC-10T-20 | 120T | 20 | 55.5 | 220 | 150 | 70MPa |
| KT-STC-150T-10 | 150T | 10 | 31 | 176 | 115 | 150MPa |
| KT-STC-150T-30 | 150T | 30 | 80 | 215 | 165 | 70MPa |
| KT-STC-200T-10 | 200T | 10 | 32 | 205 | 135 | 150MPa |
| KT-STC-100T-10 | 100T | 10 | 32 | 198 | 135 | 70MPa |
| KT-STC-20T-7 | 20T | 7 | 20 | 220 | 160 | 10MPa |
Contact:
For more information about the products please contact me as below:
Elena Tan
Tel: 86-523-81569666
Mob: +86 18052606778
Web: www.kaientehydraulic.com
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);

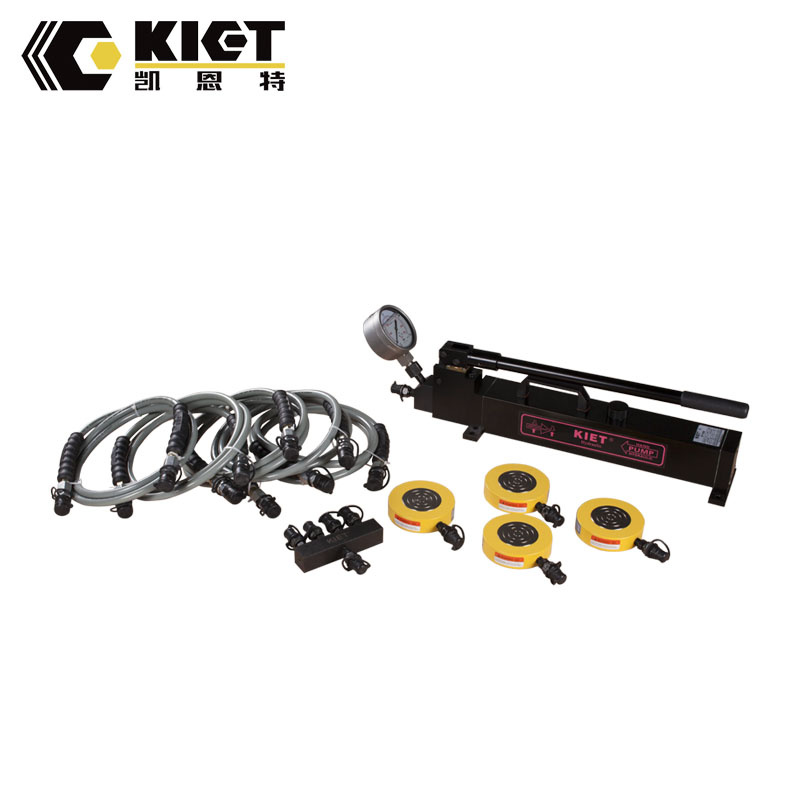

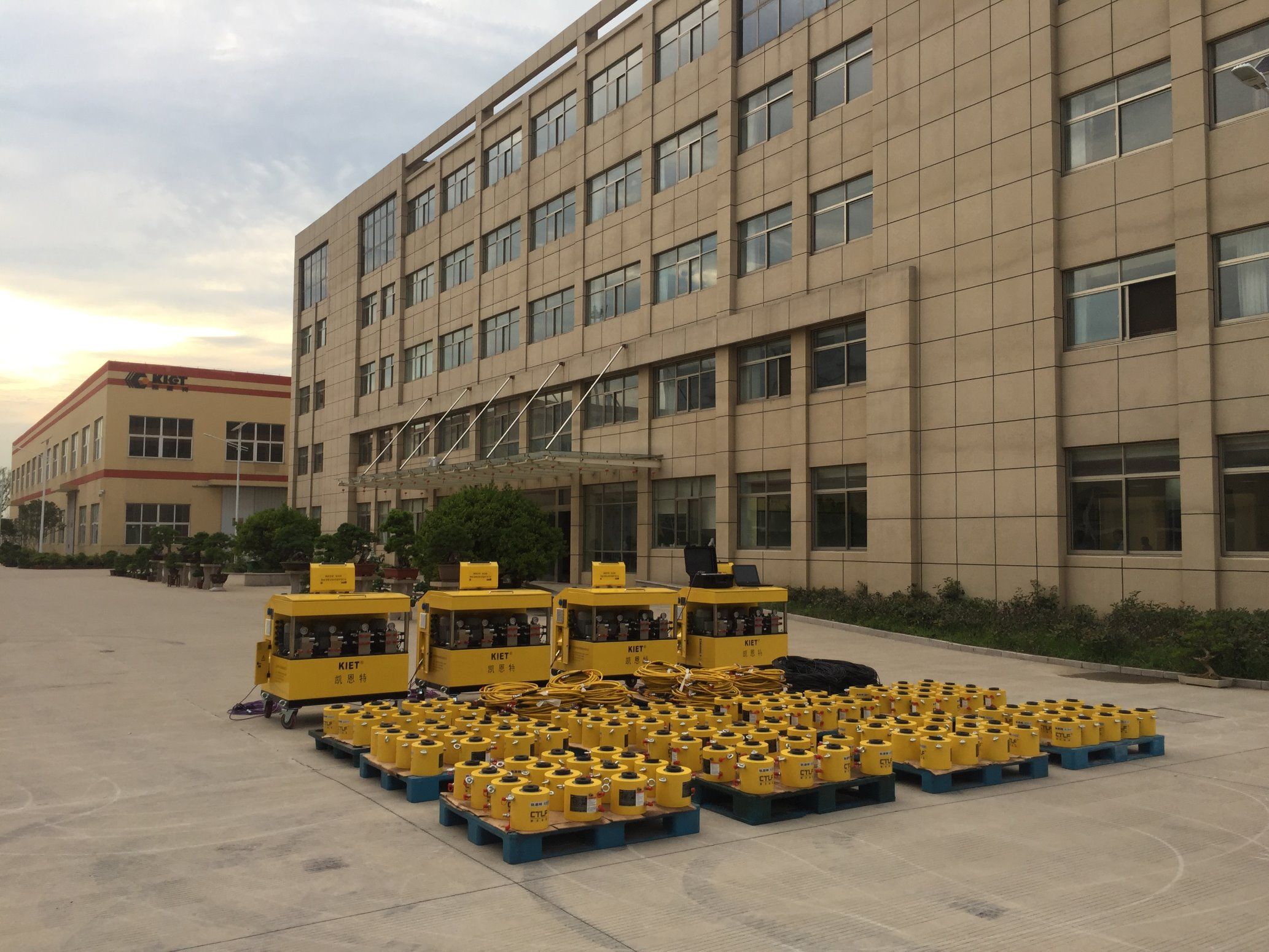

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
