Product Description

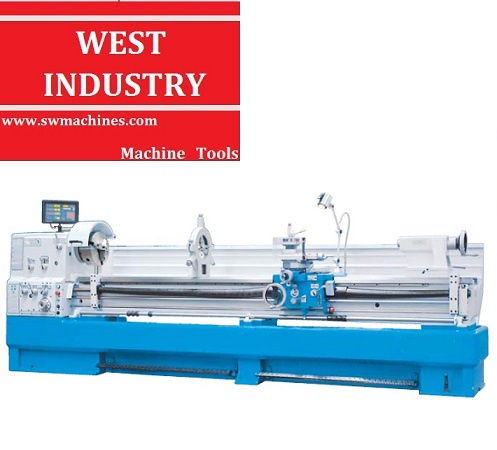

Product Name: Lathe LC41Y/46Y/51Y/56Y
Performance: · Fulfill the highest feature and precision demands at a low price;· Very rigid machine bed with heavy ribbing;· Maximum accuracyt and quiet operation even at high speed;· High machining performance with 5.5kw or 7kw main drive;· Large spindle capacity 80mm (LC51Y and LC856Y) for machining of long parts;· The lathe can be featured with standard digital indicator. Standard Accessories: · 3-Jaw chuck and adapter· 4-Jaw chuck and adapter· Face plates· Steady rest· Follow rest· Thread chasing dial· Sleeve· Oil gun· Wrenches· Operation Optional Accessories: · Driving plate· Quick change tool post· Taper turning Atachment· DRO Main Technical Data of the Machine: | Specifications | Models |
| LC41Y | LC46Y |
| Capacity |
| Swing over red | 410 mm | 460 mm |
| Swing in gap | 640 mm | 690 mm |
| Length of gap | 155 mm |
| Distance between centers | 1000/1500/2000/3000 mm |
| Center height | 205 mm | 230 mm |
| Width of bed | 300 mm |
| Headstock |
| Spindle nose | D1-6 |
| Spindle bore | 58 mm |
| Range of spindle speed | 12 changes 25-2000 r/min |
| Feeds and Threads |
| Max.travel of compound rest | 120 mm |
| Max.travel of cross slide | 290 mm |
| Max.Section of tool | 25 × 25 mm |
| Longitudinal feeds range | 42 kinds 0.031-1.7 mm/rev |
| Cross feeds range | 42 kinds 0.014-0.784 mm |
| Metric threads range | 41 kinds 0.1-1 4mm |
| Inch threads range | 60 kinds 2-112 T.P.I. |
| Diametrical pitches range | 50 kinds 4-112 D.P. |
| Module pitches range | 34 kinds 0.1-7 M.P. |
| Tailstock |
| Dia.of tailstock sleeve | 60 mm |
| Morse taper of tailstock sleeve | No.4 Morse |
| Cross adjustment | ±13 mm |
| Motor |
| Power of main motor | 4kw (5.4HP), Optional 5.5kw (7.5HP)3PH |
| Power of coolant pump | 0.1kw (1/8HP), 3PH |
| Dimension and Weight |
| Net weight / Gross weight | 1670 / 1980 kg | 1970 / 2320 kg | 1720 / 2045 kg | 2020 / 2385 kg |
|
|
|
|
|
| Specification | Models |
| LC51Y | LC56Y |
| Capacity |
| Swing over red | 510 mm | 560 mm |
| Swing in gap | 300 mm | 350 mm |
| Swing of gap | 738 mm | 788 mm |
| Length of gap | 200 mm |
| Distance between centers | 200 mm | 3000 mm | 2000 mm | 3000 mm |
| Center height | 255 mm | 280 mm |
| Width of bed | 350 mm |
| Headstock |
| Spindle nose | D1-8 |
| Spindle bore | 80 mm |
| Taper of spindle bore | No.7 Morse |
| Range of spindle speed | 12 changes 25-1600 r/min |
| Feeds and Threads |
| Max.travel of compound rest | 130 mm |
| Max.travel of cross slide | 326 mm |
| Leadscrew pitch | 6 mm Or 4 T.P.L |
| Max.section of tool | 25 × 25 mm |
| Longitudinal feeds range | 35kinds0.059-1.646 mm/rev |
| Cross feeds range | 35kinds0.020-0.573 mm |
| Metric threads range | 47kinds0.2-14 mm |
| Inch threads range | 60kinds2-112 T.P.L |
| Diametrical pitches range | 50kinds4-112 D.P. |
| Module pitches range | 39kinds0.1-7 M.P. |
| Tailstock |
| Dia of tailstock sieeve | 75 mm |
| Travel of tailstock sleeve | 180 mm |
| Morse taper of tailstock sleeve | No.5 Morse |
| Cross adjustment | ±13 mm |
| Motor |
| Power of main motor | 7.5kw (10HP) 3PH |
| Power of coolant pump | 0.1kw (1/8HP) 3PH |
| Dimension and Weight |
| Overall dimension (L × W × H) (cm) | 290×112×143 | 340×112×143 | 290×112×146 | 340×112×143 |
