| Prod Model: |
CBD15 |
| Capacity: |
1500kg |
| Fork Deminsion: |
58*1500*1220 |
| Fork Width: |
685mm |
| Max. Fork Height: |
195mm |
| Color: |
Red or Yellow, Can Be Customerlized |
| Drive Unit: |
Battery |
| Wheel Type: |
PU/PU |
| Drive Speed,with Load / Without Load (Km: |
3.5/4 |
| Power: |
AC Motor |
| Load Capacity: |
1T - 5T |
Product Description
1. Our companyl's newest design, very Nice looking and with compact size, easy of handing the sense.
2.With high quality famous ACTIVE drive system, CURITIS control system. The most famous brand in the word.
3.56A*2 12v

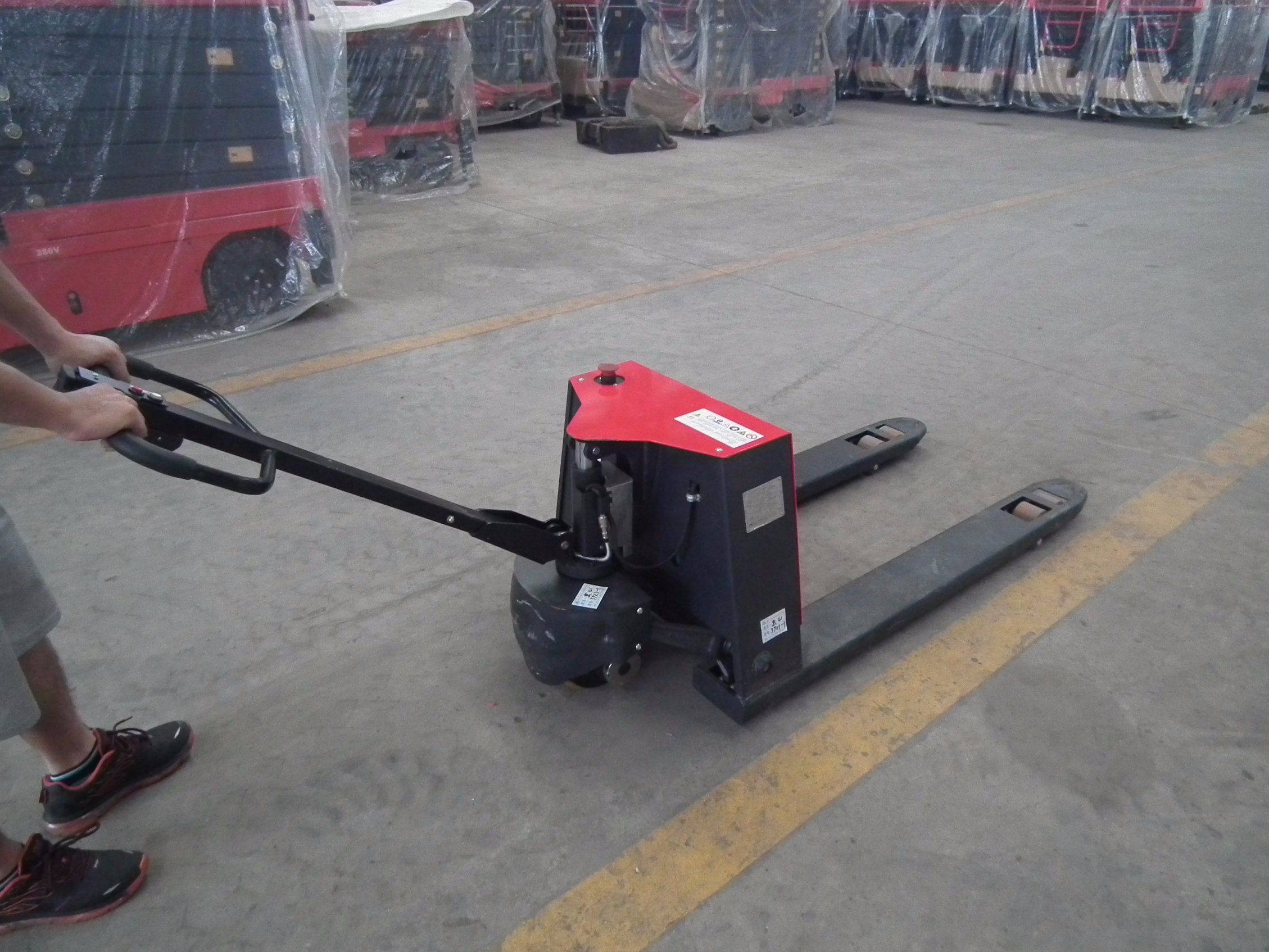

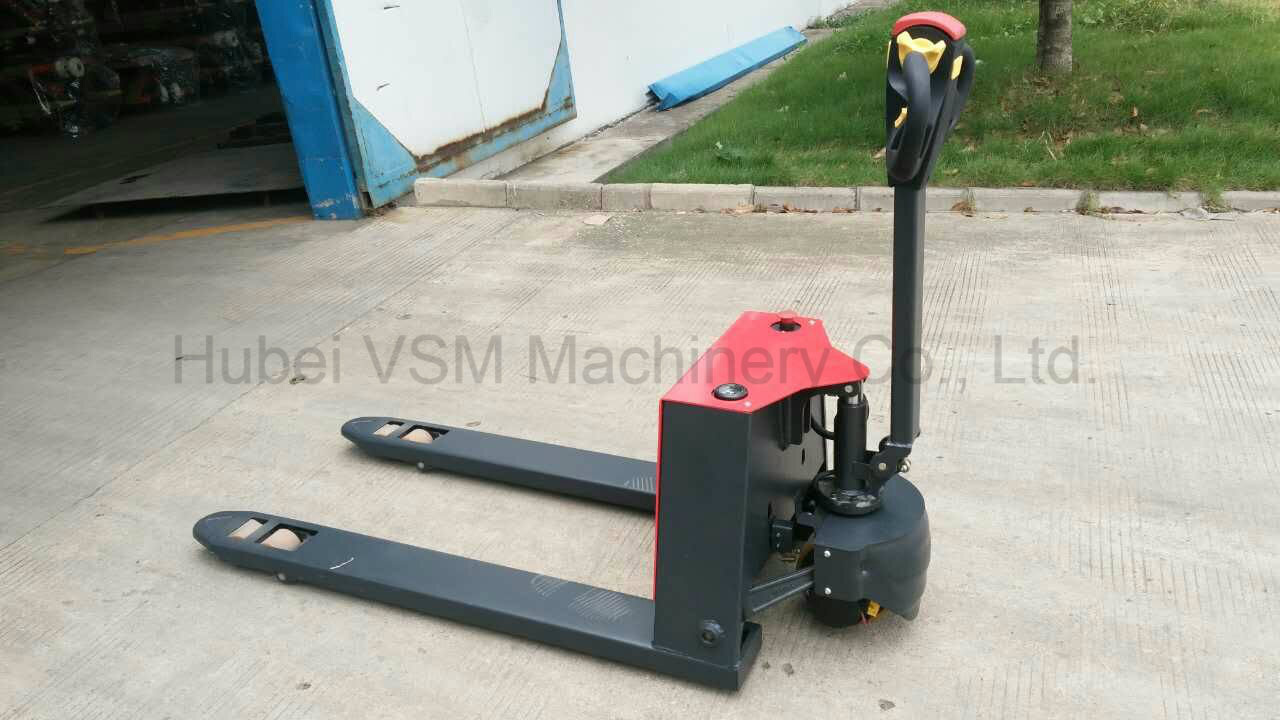

4. Battery indicator easily monitors your battery level, EASILY move in narrow space.PRODUCT PHOTO

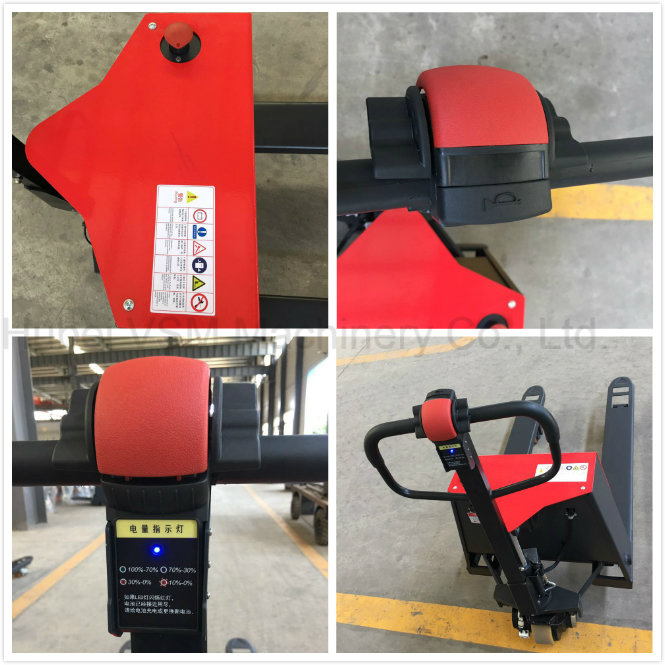

DETAILED PHOTO

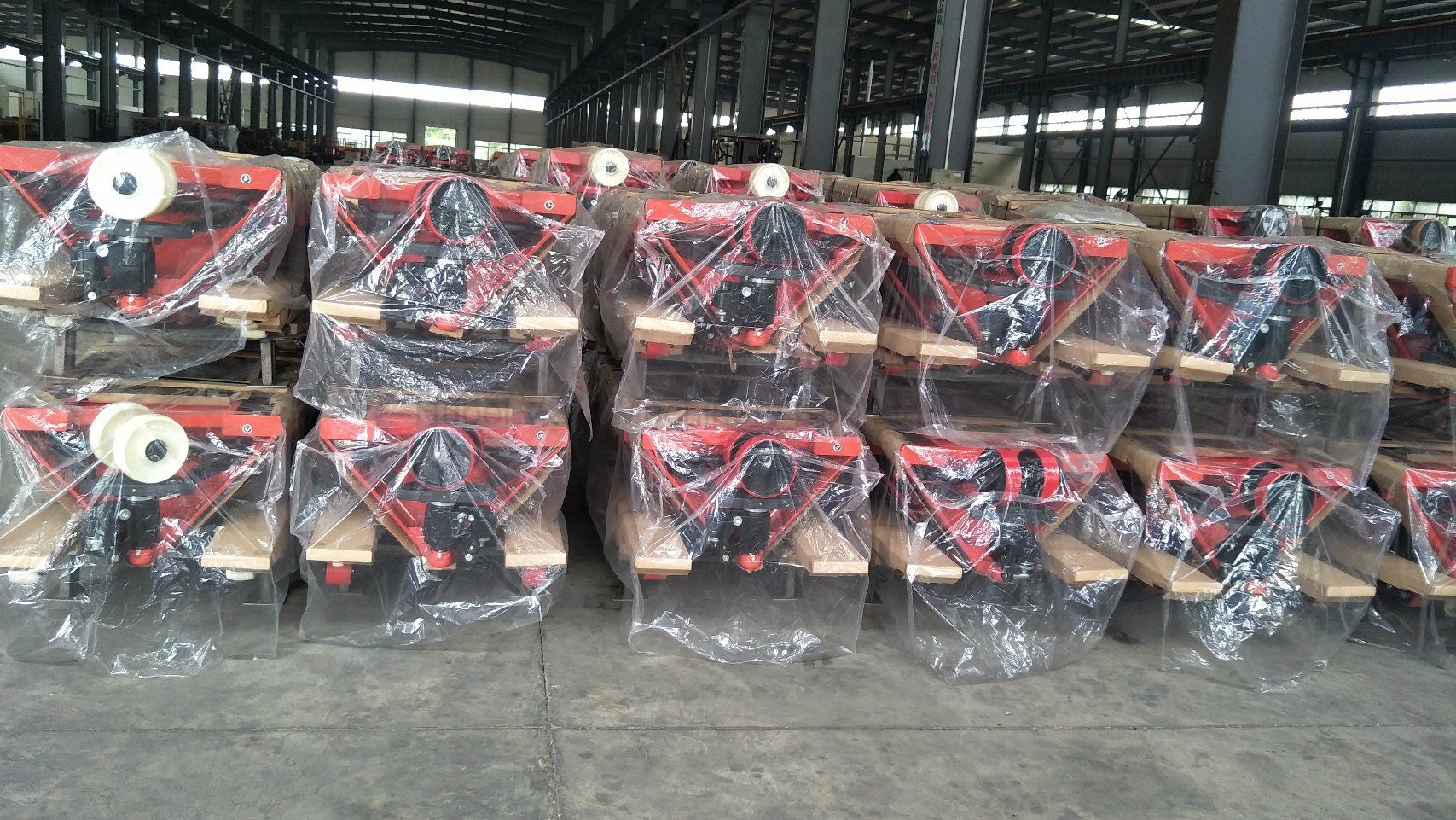

PACKING METHOD:ACCORDING TO CUSTOMER'S REQUIREMENT
PRODUCT INFORMATION| Model | CBD15-N |
| Drive unit | Battery |
| Operator type | Walkie |
| Capacity (kg) | 1500 |
| Weight(lncl.battery)(kg) | 145 |
| Overall length (mm) | 1640 |
| Overall width (mm) | 685 |
| Overall height (mm) | 1210 |
| Raised height (mm) | 115 |
| Fork dimensions (mm) | 58/150/1220 |
| Fork spread (mm) | 685 |
| Aisle width,1000×1200 pallet crossways (mm) | 2009 |
| Aisle width,800×1200 pallet crossways (mm) | 1809 |
| Turning radius(mm) | 1555 |
| Wheel type | PU/PU |
| Driven wheel side | Φ220×70 |
| Load wheel side | 2×Φ80×68 |
| Drive speed,with load / without load (km/h) | 3.5/4 |
| Lifting speed,with load / without load (m/s) | 0.035/0.048 |
| Maximum climbing angles,with load / without load (%) | 2/6 |
| Service brake | Electromagnetic |
| Drive motor power at S2 60 min (kw) | 0.75, horizontal motor |
| Lift motor power at S3 15% (kw) | 0.8 |
| Battery voltage / rated capacity (5h)( V/Ah) | 2x12/56 |
| Battery type | |
| Maintenance free lead-acid battery |
| |
| Type of drive control | AC |
| Control System | CURTIS |
| Sound level for operator (dB(A)) | 74 |

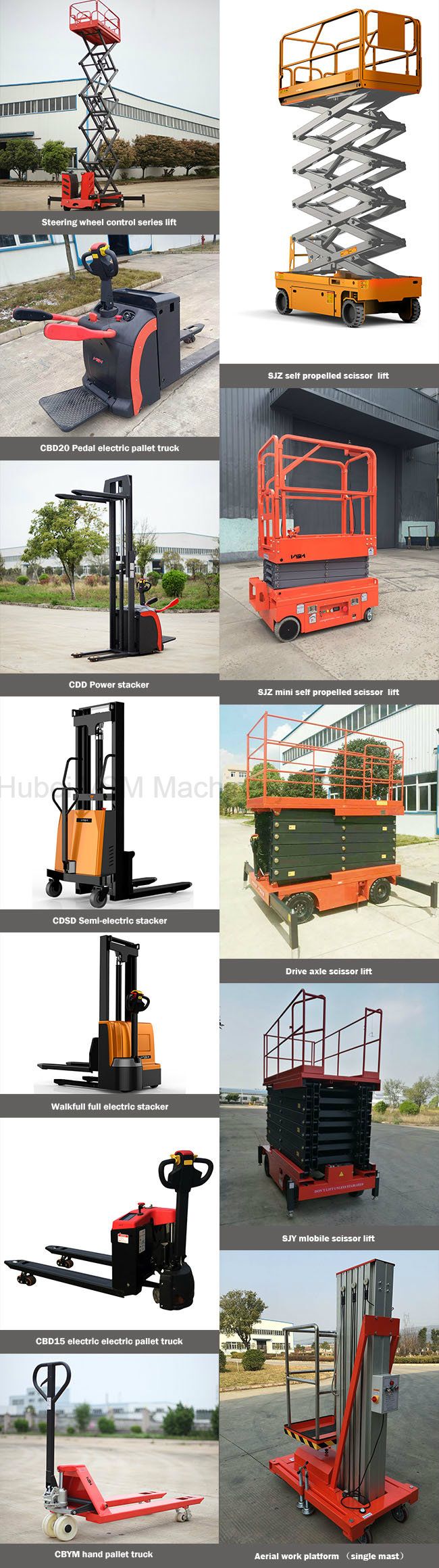

MORE HOT SALE PRODUCTS IN OUR FACTORY

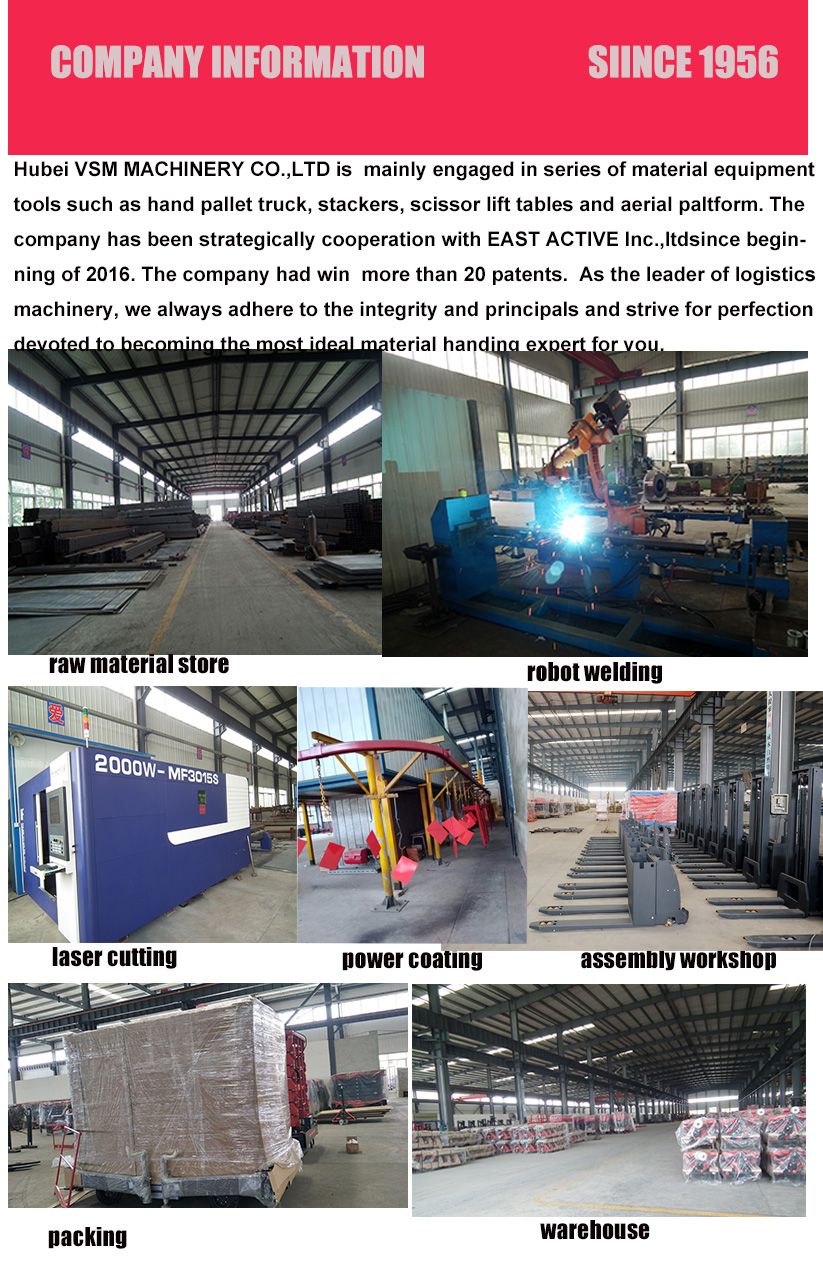

BRIFE VIEW OF OUR WORKSHOP
we warmly welcome your visit at any time!
CONTACT US
Sunny huang((international sales manager)
[email protected] 153-4226-1630
Hubei VSM machinery Co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufacture and installation, debugging and other intelligent equipment filed of professional companies.
The company has been strategically cooperation with EAST ACTIV Inc...Ltd in Canda since the beginging of 2016 and the power and control system tchnology is supported by EAST ACTIVE.
We have 20 patens and have received ISO9001 international certificate. Our products are granted TUV: GS/CE certificate. Our CDD full electric won the most influential design reward--RED STAR DESIGN REWARD in 2016.
We have set branches in Bangkok, Wuhan, Guangzhou, Shanghai, Chengdu and many other cities both home and abroad. The produts are exported to more than 80 countries and regions including Europe, Amercia and southeast Asia. We have 108 after sales sevice centers in dometic cities and are highly reputed for our qualiry and services.
As the leader of logistics machinery, we always adhere to the intergrity and pragmatic principals and strive for perfection, devoted to becoming the most ideal material handing expert for you.
