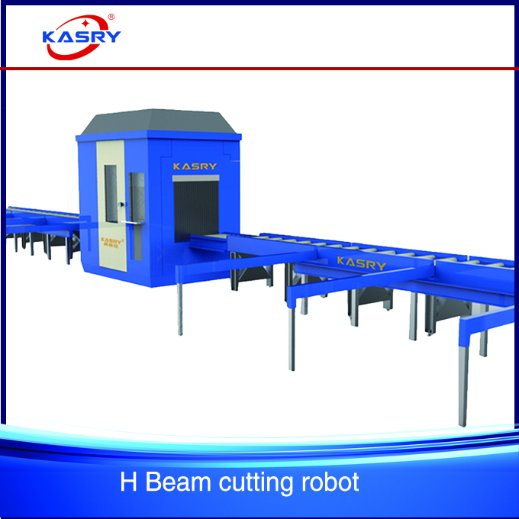

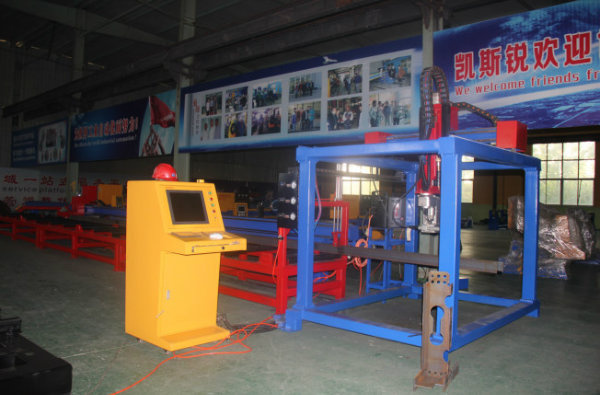

KR-XH8 profile cutting production line cutting module set includes (storage rack, the feed car, the conveying roller bed, feeding trolley and trolley tracks, cutting unit, discharge units, finished rack, dust removal device, console station etc.) conveyed through the transfer roller to the cutting station intersecting line cutting and transporting the pipe after cutting to the next station.
Machine Dimensions Length: The total length of the entire cutting unit is 25000mm, wherein the cutting station length 2000mm. Feeding positioning feed roller conveyor area is 13000mm, to ensure maximum acceptance of raw materials to be cut 12000mm,Finished output 10000mm.
Machine width dimensions: 8000mm 500x500mm can store five profiles, specifically designed according to user.
Video link:
https://www.youtube.com/watch?v=8DVMEoEoyz0
Product specification :
| Model | H beam cutting machine(customized) |
| H beam | 100-800mm |
| Angle beam | 100-400mm |
| Channel beam | 100-400mm |
| Cutting method | Plasma/flame |
| Effective cutting length | 12000mm |
| Cutting length deviation | ±1.5mm |
| Workpiece cutting process | Fixed-length straight cut, fixed-length inclined cutting and end socket function. |
| Plasma power | Hypertherm 105A plasma power , cut 1-20mm thickness |
| Flame cutting thickness | 6-60mm |
| Plasma cutting speed | 500-3500mm/min |
| Plasma bevel thickness | 6-14mm |
| Flame bevel thickness | 6-40mm |
| Control system | Kasry control system |
| Computer | Taiwan Advantech Industrial Computer |
| Driving motor | Japanese Panasonic Servo motor with reducer |
| Software | KASRY Pipe Nest software |
| Load | 5t |
| Weight and size | |
| Size | Can be customized according to your factory space |
| Shipping | 40ft container |
| Weight | 15t |
| Working condition | |
| Working pressure of compressed gas | Above 7mpa |
| Require gas flow of plasma | 4500L/H |
| Working environment | Ventilation ,no concussion |
| The acceptable temperature around | -20ºC -50ºC |
| Voltage | Machine :220/380V ,50/60HZ |
| Power wattage | 5KW |
| Types of gas | Plasma :Air , Flame :Oxygen+Acetylene /propane |
Features and advantage:
1.Adopt welded platform,humanized design human-computer exchange more convenient and reasonable stable operation and increased life expectance.

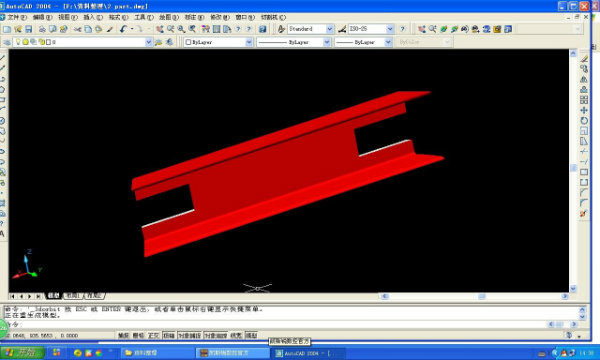

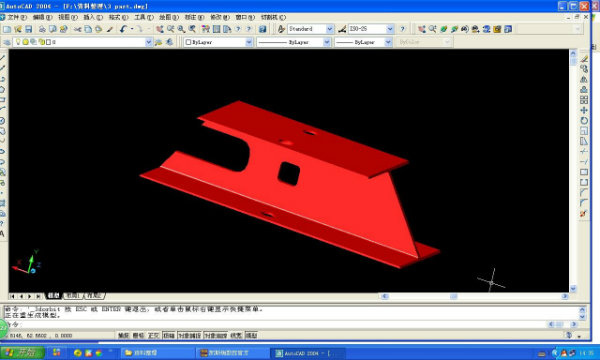

2.KASRY professional special-shaped pipe cutting systerm, the AutoCAD platform application development based on the two time, convenient and fast modeling, arbitrary graphics overlapping stick out a mile, can dire-ctly generate standard G code, The 3D simulation, operation, nodal expansion, super long pipe fittings such as spin off, optimization, EGES DXF SAT and STL software compatibility of ultra large.
3.Advantech industrial computer programming can be directly on the machine.Using menu type programming to select input cutting parameter, such as outer diameter, wall thickness, bevel Angle, deviation, compensation
date , and so on. At the same time a seamless intersection can be made by other professional software.

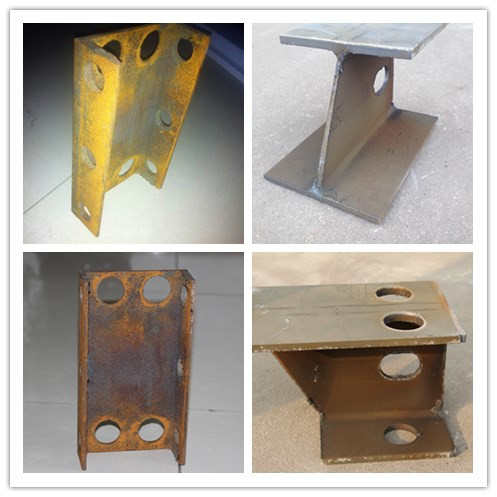

Application profiles type:
It can cut various carbon steel, stainless steel and other materials of profiles.
Application industry:
Widely used in Building walls, web structure, steel structure, marine engineering, recreational facilities, fitness equipment and other industries.
Our Services
1.One year warranty,free maintenance throughout service time..
2.free technical support through Email and telephone.
3.Training and installation on-site if required.
Why choose us
1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2. A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy .
3. One year warranty,free maintenance throughout service time.
4.Our software can be free upgraded lifetime .
5.First manufactuer cut square rail and other profile
