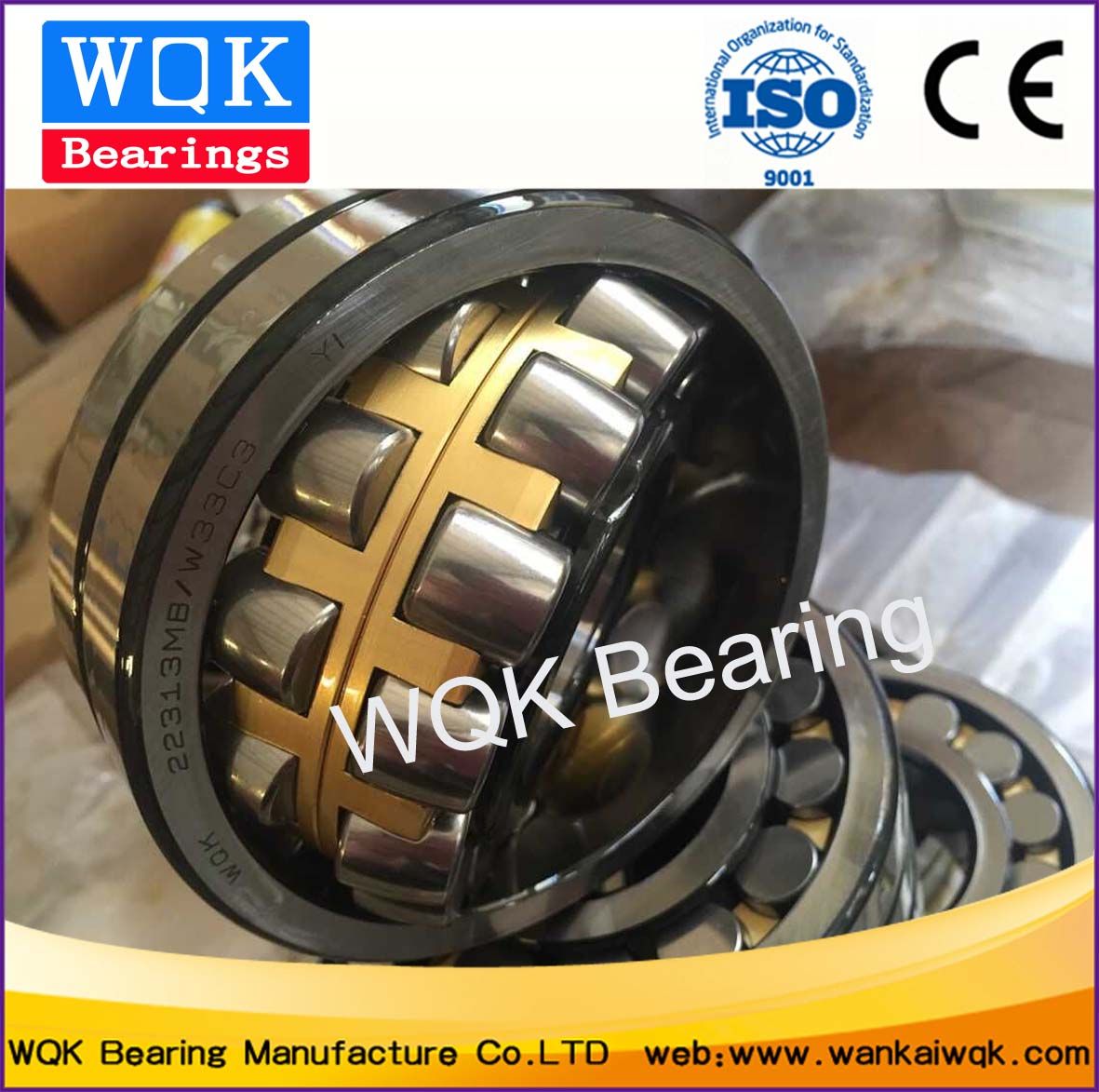

High Quality Spherical Roller Bearing for Industrial Machine 22313mbw33c3

Name: High Quality Spherical Roller Bearing for Industrial Machine 22313mbw33c3
Brand: tool-buy.com
SKU: 712527552
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	US $ 100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

WQK Bearing Manufacture Co., Ltd.

Showroom Product Company Profile

Prod Model:	22313 MBC3W33
Bearing Item:	22313 Mbw33c3
Rolling Body:	Roller Bearings
The Number Of Rows:	Double
Outer Dimension:	Medium and Large(',120-190mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

high quality Spherical Roller Bearing features

1.BAINITE QUENCHING

2.ISO9001:2008

3.Material :GCr15/GCr15SiMn / G20Gr2Ni4A

4.Hardness :HRC60-HRC64

5.Closures :Unsealed/Sealed

6.Grade : P6 P5

7.Clearance :C0, C3, C4

8.Lubrication :Oil or grease

9.Structure :Spherical Roller Bearing MB, CA, CC, and E series

10.Features: These bearings are featured by the extremely big axial load carrying capacity
and meanwhile they can also carry certain radial load

11.Application :Steel industry, oil industry, cement industry, mining & construction, paper making machinery,
rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery

SPHERICAL ROLLER BEARINGS - 22300 SERIES

Bearing No.	Dimensions(mm)			Load ratings(KN)		Limiting speeds(r/min)		Mounting dimensions(mm)			Mass(Kg)
Bearing No.	d	D	B	Cr	Cor	Grease	Oil	da(min)	Da(max)	ra(max)	≈
22308	40	90	33	124	142	4100	5000	49	81	1.5	1.06
22309	45	100	36	146	175	6300	4500	54	91	1.5	1.42
22310	50	110	40	180	216	3200	4300	60	100	2	1.89
22311	55	120	43	214	258	3200	3800	65	110	2.1	2.42
22312	60	130	46	245	294	2800	3500	72	118	2.1	3
22313	65	140	48	268	324	2500	3300	77	128	2.1	3.6
22314	70	150	51	301	373	2000	2700	82	138	2.1	4.4
22315	75	160	55	352	451	2200	3000	87	148	2.1	5.43
22316	80	170	58	397	513	2000	2800	92	158	2.1	6.23
22317	85	180	60	433	556	2000	2500	99	166	2.5	7.5
22318	90	190	64	489	641	1800	2200	104	176	2.5	8.85
22319	95	200	67	536	709	1500	2000	109	186	2.5	10.2
22320	100	215	73	626	840	1500	1900	114	201	2.5	13.4
22322	110	240	80	716	963	1400	1600	124	226	2.5	18.25
22324	120	260	86	847	1154	1300	1600	134	246	2.5	22.3
22326	130	280	93	970	1340	1000	1500	148	262	3	29.06
22328	140	300	102	1140	1620	900	1300	158	282	3	36.4
22330	150	320	108	1270	1850	850	1200	168	302	3	42.8
22332	160	340	114	1070	1820	800	1000	178	322	3	50.2
22334	170	360	120	1180	2120	800	1000	188	342	3	59.6
22336	180	380	126	1290	2330	700	950	198	362	3	69.85
22338	190	400	132	1430	2600	650	850	212	378	4	80.9

Main items in stocks of spherical roller bearing:high quality spherical roller bearing producing process

Our agent team

Packaging & Shipping

1). for small ones: Anti-rust oil+ plastic bag+ paper box +carton box +wooden pallet
2). For big ones: Anti-rust oil+ waterproof belt+ professional belt +wooden box + pallet

Why choice WZA

1: in the same price , our quality is higher , in the same quality , our price is lower

2: high precision , long life

3: our brand is WZA , we also can OEM

4:best service ,many stocks

WQK spherical roller bearing adopt BAINITE QUENCHING, so they can be used up to an operating temperature of 200 ° C. However, if the self-aligning roller bearings are provided with a polyamide cage, the temperature limit of the cage (max. 120 ° C permanent temperature) should be taken into account. The standard versions of WQK spherical roller bearings are supplied with brass cage type MB, CA, and steel cage type CC AND E. Mainly is CC AND MB cage which have large stock.

Main items:

22205MBW33/C3 -22256MBW33/C3,

22306MBW33/C3-22368 MBW33/C3,

23130MBW33/C3-23180MBW33/C3,

21310MBW33/C3-21340MBW33/C3,

24020MBW33/C3-24080MBW33/C3.

24120MBW33/C3-24180MBW33/C3.

23218MBW33/C3-23280MBW33/C3.

ID size: 30mm-650mm, OD size: 50mm-860mm

WQK spherical roller bearings are widely used for Mining, Steel, oil, cement, construction, papermaking, rolling mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery. WQK also supply OEM service, and design products according to your drawings or samples as well.

With registered capital of RMB10 million, our factory covers an area 10, 200 square meters and 205 staffs which include 35 technicians. WQK use advanced Germany technology and design do BEST spherical roller bearing. WQK currently has advanced equipment, a reliable quality controlling system and a highly spiritual management team, thereby providing a further guarantee of product and service quality. Insisting on the spirit of "Quality First, Honesty First", we sincerely welcome customers from both at home and abroad to cooperate with us for mutual benefits.
