Kiet Brand Low Profile Rsm Series Hydraulic Jack
| Price: |
US $ 200-1000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
RSM Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Kiet Low Profile Hydraulic Jack |
| Model Number: |
Rsm Series |
| Collapsed Height: |
164-745 mm |
| Material: |
#45 Steel |
| OEM: |
Yes |
| Weight Range: |
1-72.6 Kg |
| Body Material: |
Steel |
| Color: |
Yellow, Black, Customerized |
| Market: |
Global |
| Capacity: |
6-50t |
| Type: |
Hydraulic Jack |
| Structure: |
Hydraulic Jack |
| Power Source: |
Hydraulic |
| Capacity (',Load): |
6-50t |
| Max Height: |
5-25mm |
Product Description

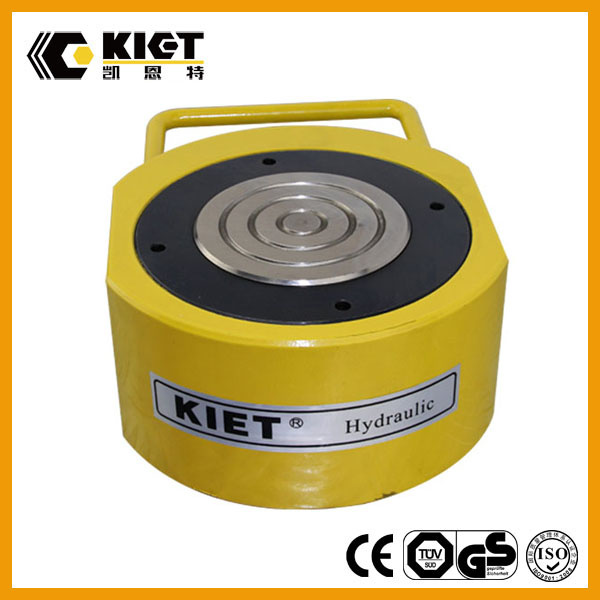

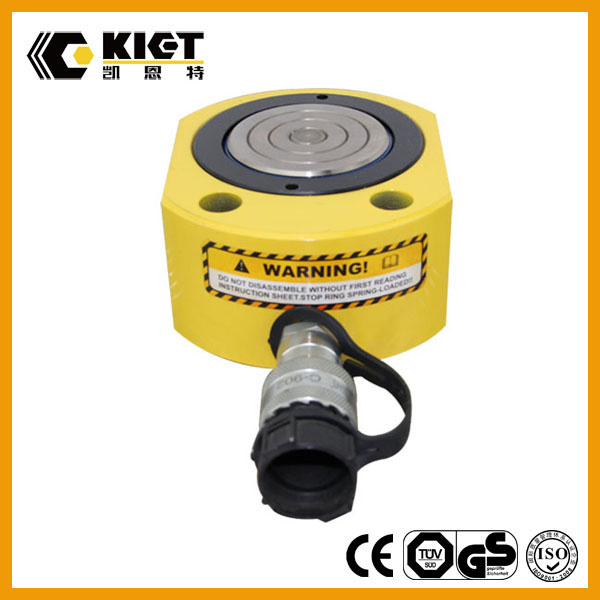

Kiet Brand Low Profile Rsm Series Hydraulic JackFeatureCompact, flat design for use where most other cylinders will not fit
Single-acting, spring return
RSM-750, 1000 and 1500 have handles for easy carrying
Mounting holes permit easy fixturing
Baked enamel finish for increased corrosion resistance
CR-400 coupler and dust cap included on all models1
Hard chrome plated high quality steel plungers
Grooved plunger ends require no saddle
Parameter
Model Number | Cyl. Capa-city ton (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Outside Diameter D (mm) | Cylinder Bore Dia. E (mm) | Cylinder. Effective Area (cm2) | Oil Capcacity (cm3) | Plunger Dia. F (mm) | Weight (kg) |
| RSM-501) | 5 (45) | 6 | 32 | 38 | 58 x 41 | 28,7 | 6,5 | 4 | 25,4 | 1,0 |
| RSM-100 | 10 (101) | 12 | 43 | 54 | 82 x 55 | 42,9 | 14,5 | 18 | 38,1 | 1,4 |
| RSM-200 | 20 (201) | 11 | 51 | 62 | 101 x 76 | 60,5 | 28,7 | 32 | 50,8 | 3,1 |
| RSM-300 | 30 (295) | 13 | 58 | 71 | 117 x 95 | 73,2 | 42,1 | 55 | 63,4 | 4,5 |
| RSM-500 | 45 (435) | 16 | 66 | 82 | 140 x 114 | 88,9 | 62,1 | 99 | 69,8 | 6,8 |
| RSM-750 | 75 (718) | 16 | 79 | 95 | 165 x 139 | 114,3 | 102,6 | 164 | 82,6 | 11,3 |
| RSM-1000 | 90 (887) | 16 | 85 | 101 | 178 x 153 | 127,0 | 126,7 | 203 | 92,2 | 14,5 |
| RSM-1500 | 150 (1386) | 16 | 100 | 116 | 215 x 190 | 158,8 | 198,1 | 317 | 114,3 | 26,3 |
| RCS-101* | 10 (101) | 38 | 88 | 126 | 69 | 42,9 | 14,5 | 55 | 38,1 | 4,1 |
| RCS-201* | 20 (201) | 45 | 98 | 143 | 92 | 60,5 | 28,7 | 129 | 50,8 | 5,0 |
| RCS-302* | 30 (295) | 62 | 117 | 179 | 101 | 73,2 | 42,1 | 261 | 66,5 | 6,8 |
| RCS-502* | 45 (435) | 60 | 122 | 182 | 124 | 88,9 | 62,1 | 373 | 69,8 | 10,9 |
| RCS-1002* | 90 (887) | 57 | 141 | 198 | 165 | 127,0 | 126,7 | 722 | 92,2 | 22,7 |
Company Information
KIET is specialized in design and supply Hydraulic Products, Over 20 years experience in Hydraulic area, Being named "Hydraulic Manufaturer Leader" in China.
Since the establishment in 1995, Approved to manufacture for ENERPAC, HYTORC,SPX and other brand for 10 years. we successfully transformed from OEM Manufacturer to our own brand company--------KIET
KIET hydraulic products with great quality and best price, Sells very well in global market. Being widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.
Our main product category includes:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Contact Information:
Contact Person: Handy Han
Mobile: +86 1800-5263-911
Office: +86-523-81569666
Fax: 86-523-86186999/86183388
Website:www.kaientehydraulic.com
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
