Prod Model: |
KR-XY3 |
Name: |
Pipe Tube Cutting Machine |
Color: |
Blue ,Can Be Customized |
Pipe Diameter: |
600mm,Can Be Customized |
Length: |
6/9/12m |
Control System: |
Kasry |
Pipe Nest Software: |
Kasry |
Weight: |
5t |
Application: |
Steel Fabrication,Oil and Pipeline |
Function: |
Cut off , Cut Hole , Cut Saddle , Cut Arc |
Product Description

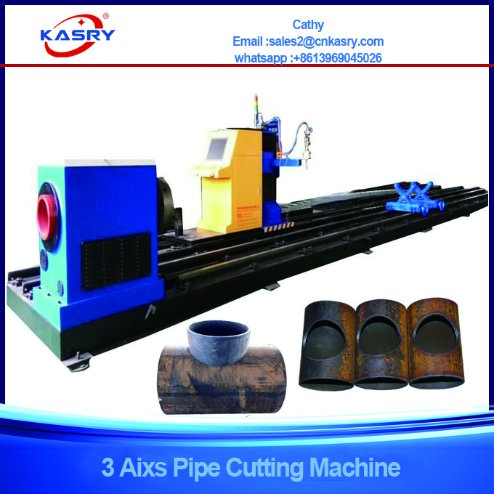

Metal CNC Pipe Plamsa Cutting Machine Tube Cutter KR-XY3 Working video :
3 axis pipe cutting machine working video :
https://www.youtube.com/watch?v=vd7K4JrIUv8
Features of pipe cutting machine:
1.Cut shape :Round pipe
2.Cutting method :plasma /flame /plasma and flame ,it depend on the cutting thickness
3.Range :Round pipe 50-600mm
Length :6m/9m/12m , it can be customized
4.Function :cutting hole , cut off , cut arc , cut saddle ect
5.Control system and software :
a:After you buy the machine can be upgraded lifetime ;
b:our software support Autocad ect ;
c:Easy to operate , modeling making is easy , only need from software through the centerline , easily creat pipe , arc tube , sqaure tube , rectangular tube , angle , channel , H beam and other components .
6.Kasry control system with Taiwan Advantech computer
Details introduction of 3 axis :Moving axis | Choose cutting axis | Range of activities |
Y axis : | Pipe driven rotation shaft | 360 ° free rotation |
X axis | The trolley moves along the length of the tube | The maximum stroke 12000 mm |
Z axis | The torch move up and down | Travel 320mm |
Details congiguration :Model | 3 axis pipe CNC cutting machine |
Round pipe | Diameter 50-630mm Effective cutting length 12m |
Cutting method | Plasma |
Plasma power | Hypertherm 125A plasma power , cut 1-23mm thickness |
Plasma cutting speed | 50-3500mm/min |
Control system | Kasry control system |
Computer | Taiwan Advantech Industrial Computer |
Driving motor | Japanese Panasonic Servo motor with reducer |
Software | KASRY Pipe Nest software |
Load | 5t |
Weight and size |
Size | (Length *width*height) 12000*2000*2100mm |
Weight | 5.5t |
Shipping | 40ft container |
Working condition |
Working pressure of compressed gas | Above 7mpa |
Require gas flow of plasma | 4500L/H |
Working environment | Ventilation ,no concussion |
The acceptable temperature around | -20ºC -50ºC |
Voltage | Machine :220/380V ,50/60HZ |
Power wattage | 5KW |
Types of gas | Plasma :Air , Flame :Oxygen+Acetylene /propane |

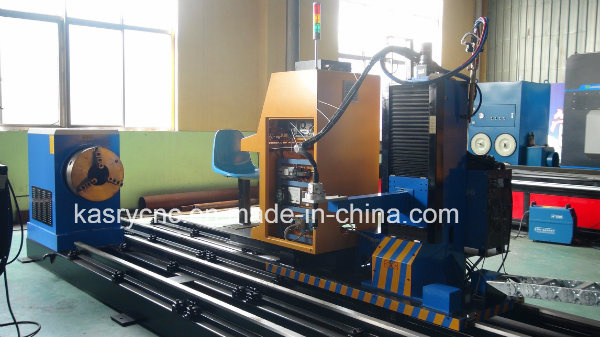

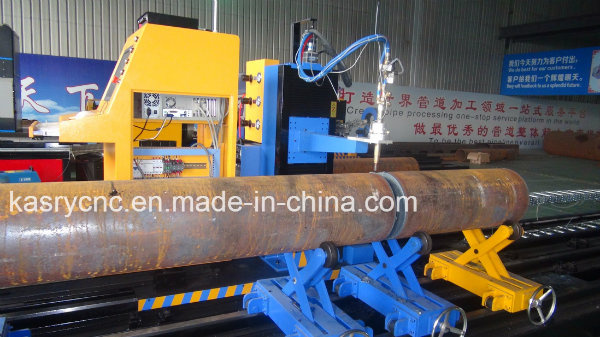

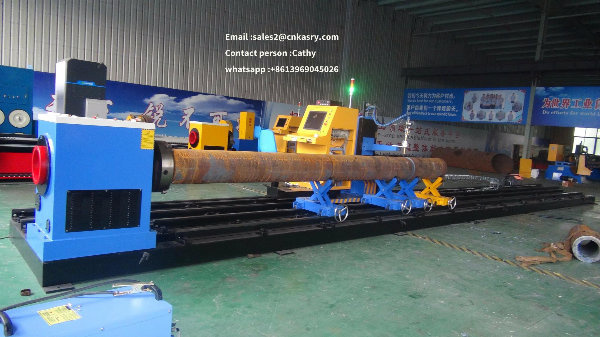

Machine at Factory :

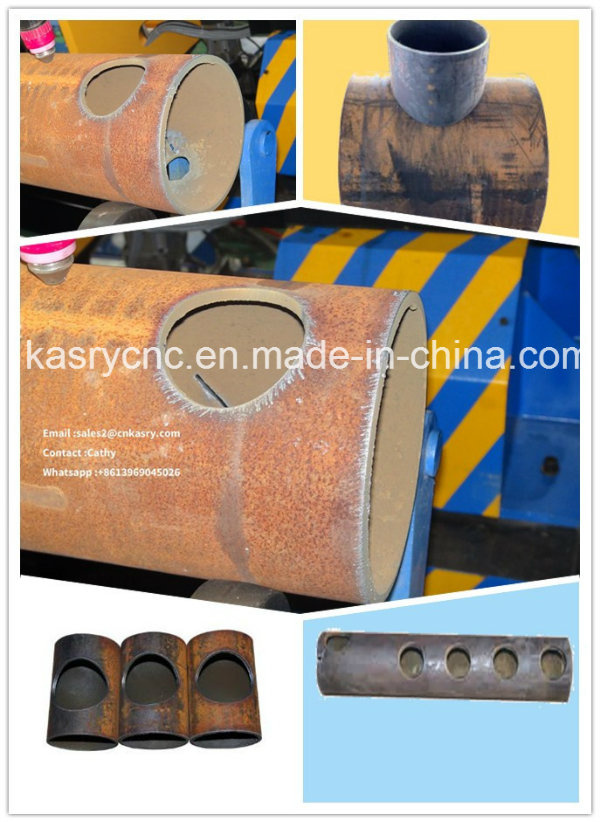

Cutting Samples :Customer case :Customer visit :
Why choose us?
1. We specialized in the production and sales of CNC cutting machine,plate cutting machine , pipe cutting beveling machine , h beam cutting machine ect .
2. We have a professional sales and service team , can provide the installation and training
3.Our products, quality guarantee,CE certificate, they are exported to more than 40 countries around the world, Such as Hungary ,Poland ,Spain ,India ,Belgium. French. Indonesia. Korean. Australia . Romania. Russia. Iraq and so on.
4-Frame and software all Kasry own brand , delivery time and quality have enough guarantee
5-Two years global warranty
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2.Warranty ?
24 Months global guarantee
3.Delivery time ?
25 days after you pay the payment .Some time have stock ,can be ship directly .
4. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
Welcome to your inquiry , we will recommend the most suitable machine and improve your working efficiency .
