1.5 Ton Small Power Electric Pallet Truck for Sale
| Price: |
US $ 1000-1800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CBD15 |
| Drive Unit: |
Battery |
| Fork Demesion: |
58*150*1220mm |
| Fork Width: |
685 |
| Wheel Type: |
PU |
| Wheel Size: |
Φ220*70 |
| Load Speed: |
0.035 |
| Unload Speed: |
0.048 |
| Battery Voltage/Rated Capacity(5h): |
2*12V/75A |
| Battery Weight: |
23.52kg |
| Battery Size: |
260*170*215mm |
| Type: |
Powered Pallet Truck |
| Power: |
AC Motor |
| Load Capacity: |
1T - 5T |
| Lift Height: |
115mm |
Product Description
.Capacity:1.5T
CONTROL SYSTEM: CURITIS
Wheel materail: pu
steel material: Q235
Product description:1. Control system:CURTIES, New design, national patented products (patent Number 201430452556.5). Unique Transformers series appearance;2. Active control system,intelligent and reliable.
3.Imported world famous driving wheels with strong power.
4.Internal intelligent charge, reliable and convenient.
5.Ergonomic handle design,easy to operate.

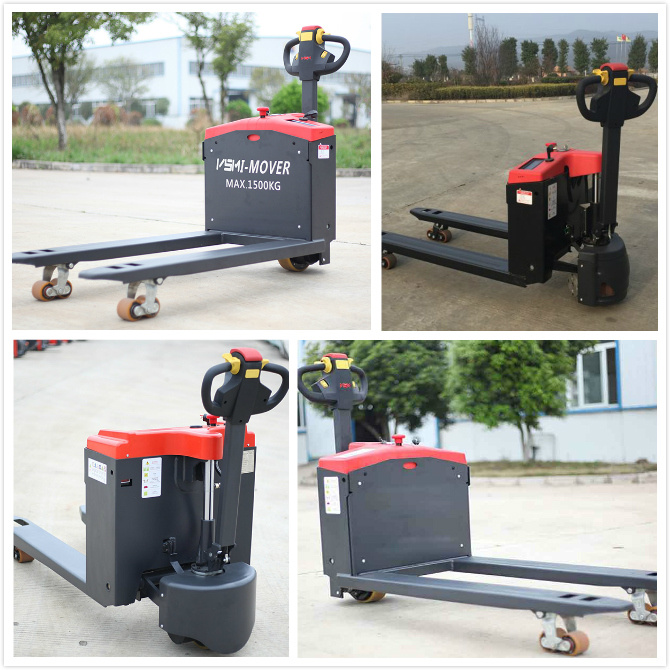

6.Foldable pedal for your choice.7. Battery indicator easily monitors your battery level;8. Compact structure, save space, easily travel at the narrow aisle;9. Ergonomic handle design, easy to operate without professional training;10. Easy for maintaining access and repair.PRODUCT PHOTOES
PRODUCT INFORMATION| Model | CBD15 |
| Drive unit | Battery |
| Operator type | Walkie |
| Capacity (kg) | 1500 |
| Weight(lncl.battery)(kg) | 205 |
| Overall length (mm) | 1780 |
| Overall width (mm) | 685 |
| Overall height (mm) | 1200 |
| Raised height (mm) | 115 |
| Fork dimensions (mm) | 58/150/1220 |
| Fork spread (mm) | 685 |
| Aisle width,1000×1200 pallet crossways (mm) | 2009 |
| Aisle width,800×1200 pallet crossways (mm) | 1809 |
| Outer turning radius(mm) | 1555 |
| Wheel type | PU/PU |
| Operator side | Φ220×70 |
| Load side | 2×Φ80×68 |
| load speed/unload speed(km/h) | 3.5/4 |
| ,Lifting speed,with load / without load (m/s) | 0.035/0.048 |
| Maximum climbing angles,with load / without load (%) | 2-6 |
| Service brake | Electromagnetic |
| Drive motor power at S2 60 min (kw) | 0.75()horizontal motor |
| Lift motor power at S3 15% (kw) | 0.8 |
| Battery voltage / rated capacity (5h)( V/Ah) | 2x12/75 |
| Battery weight(kg) | 23.5x2 |
| Battery l / w / h(mm) | 260/170/215 |
| Battery type | traction battery |
| Type of drive control | AC |
| Control System | CURTIS |
| Sound level for operator (dB(A)) | 74 |

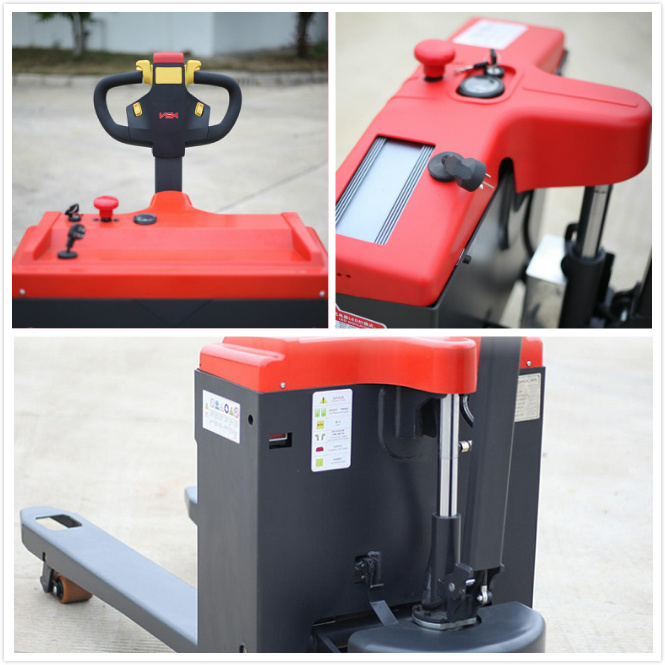

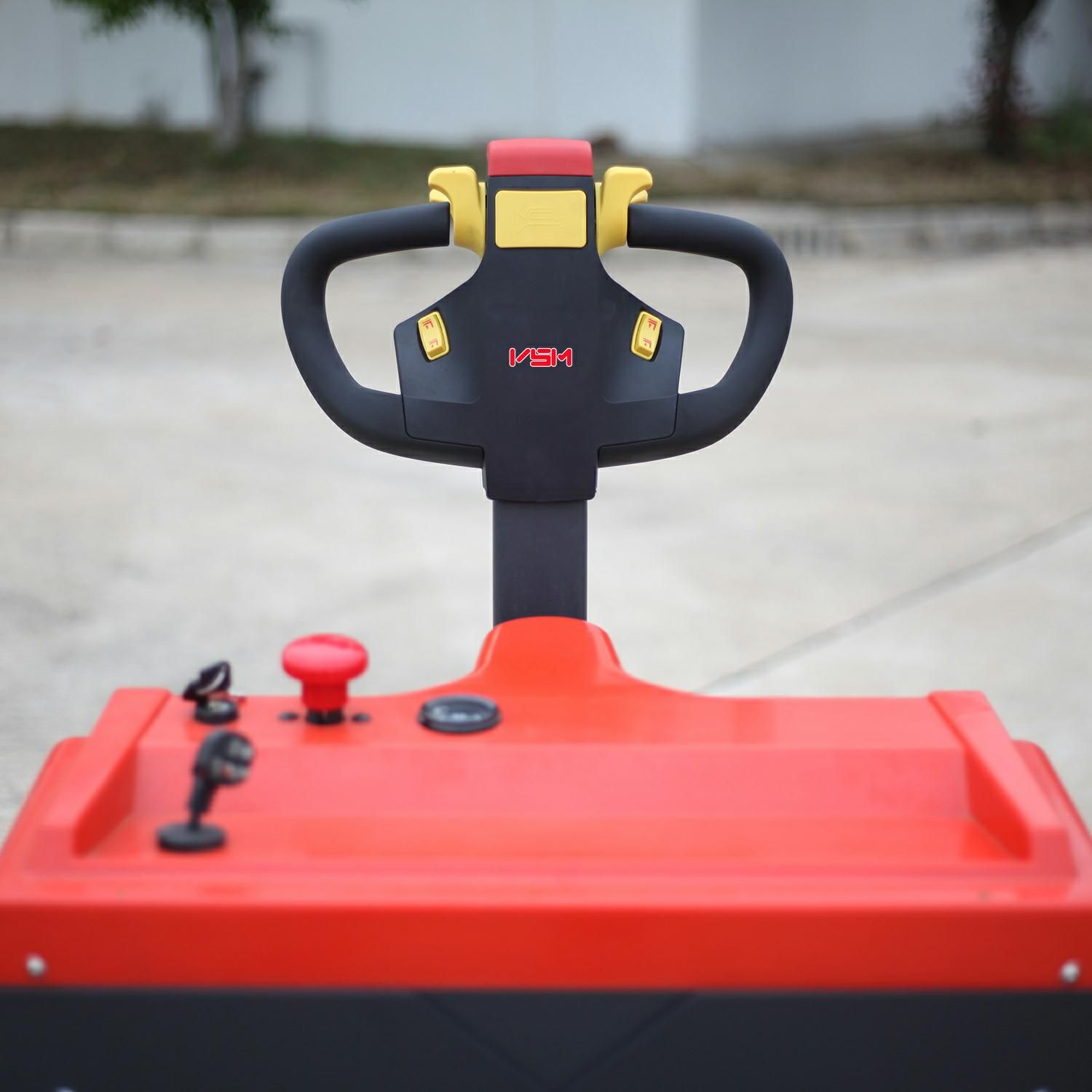

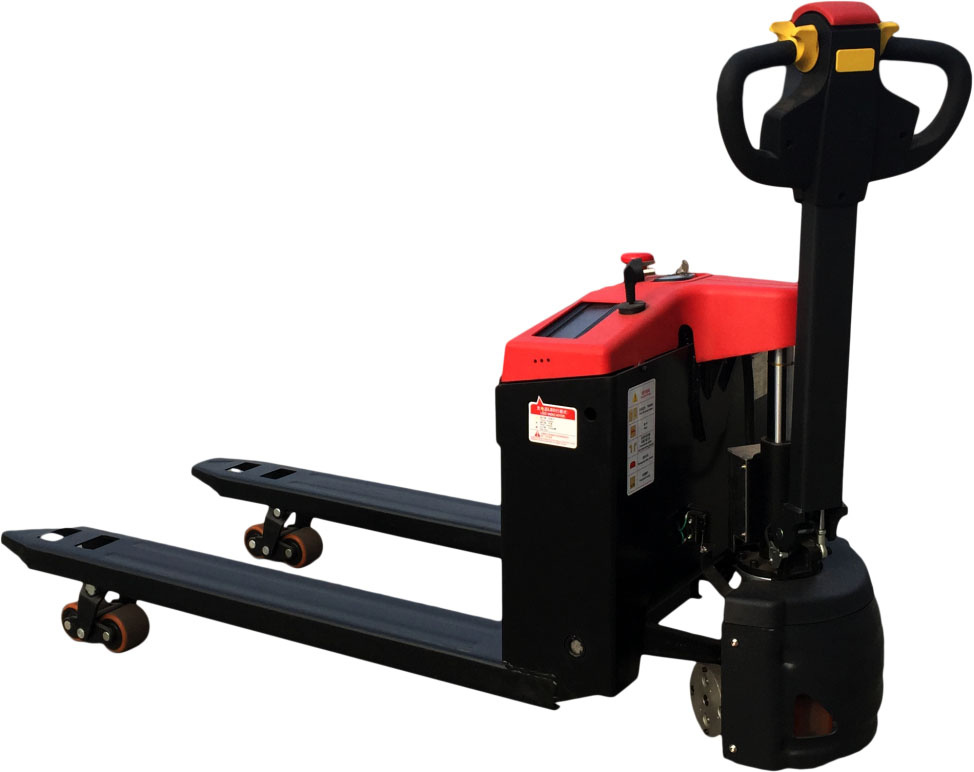

DETAILED VIEW:

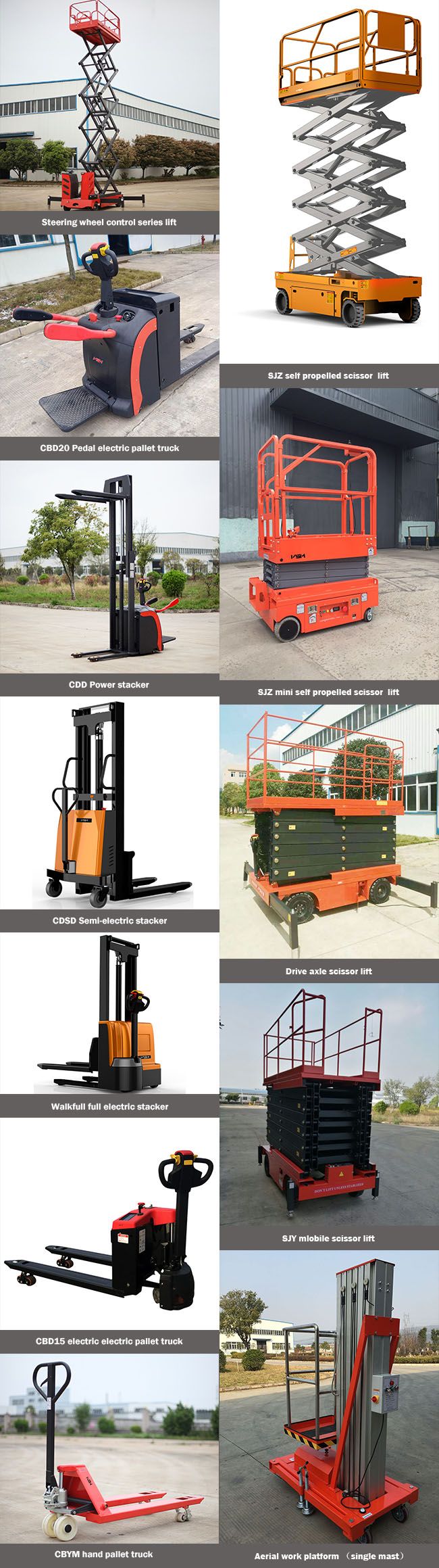

MORE HOT SALE PRODUCTS

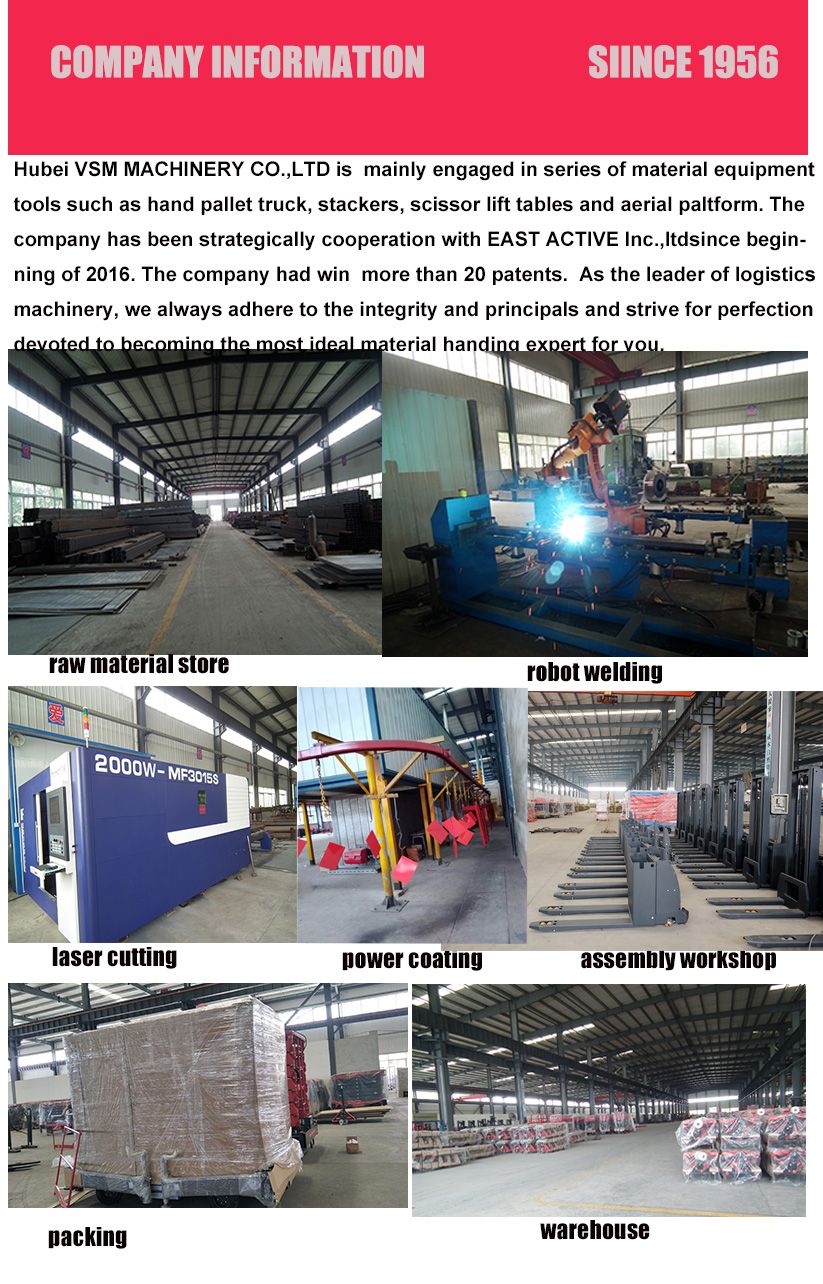

our workshop
welcome your factory tour at any time!
Contact us:
Sunny Huang
Hubei VSM machinery Co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufacture and installation, debugging and other intelligent equipment filed of professional companies.
The company has been strategically cooperation with EAST ACTIV Inc...Ltd in Canda since the beginging of 2016 and the power and control system tchnology is supported by EAST ACTIVE.
We have 20 patens and have received ISO9001 international certificate. Our products are granted TUV: GS/CE certificate. Our CDD full electric won the most influential design reward--RED STAR DESIGN REWARD in 2016.
We have set branches in Bangkok, Wuhan, Guangzhou, Shanghai, Chengdu and many other cities both home and abroad. The produts are exported to more than 80 countries and regions including Europe, Amercia and southeast Asia. We have 108 after sales sevice centers in dometic cities and are highly reputed for our qualiry and services.
As the leader of logistics machinery, we always adhere to the intergrity and pragmatic principals and strive for perfection, devoted to becoming the most ideal material handing expert for you.
